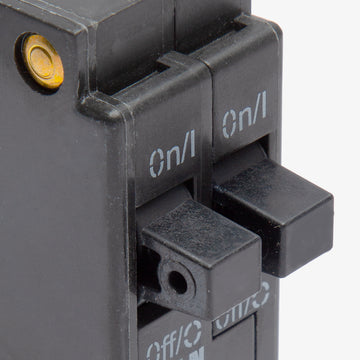

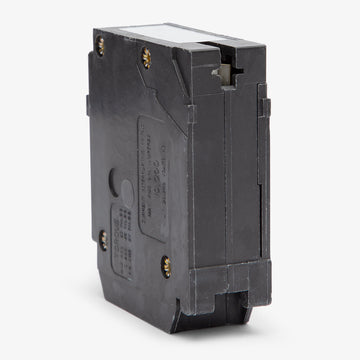

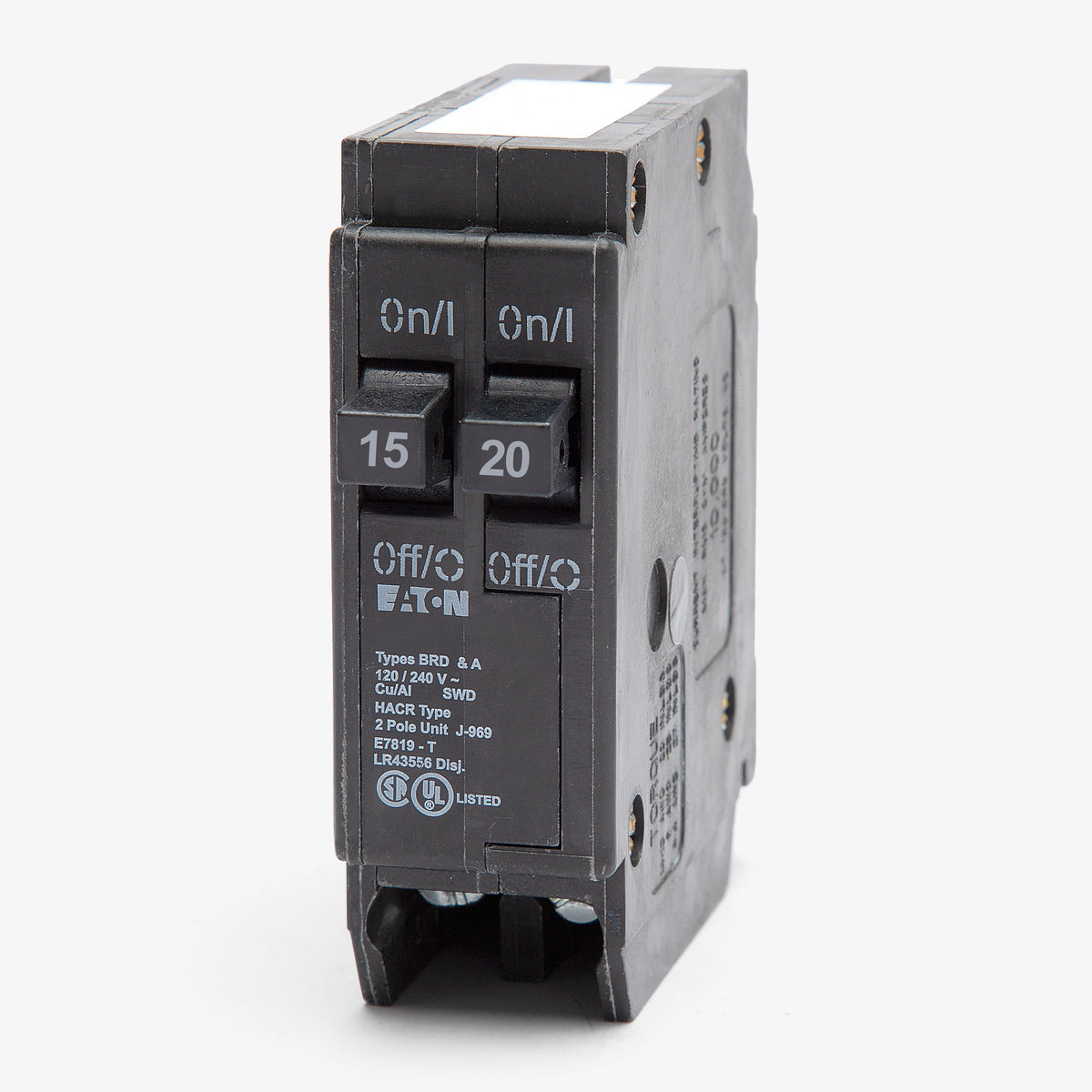

Eaton / Cutler-Hammer BD1520 15/20A Tandem Miniature Circuit Breaker
- 15/20A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BD1520 - 15/20A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BD1520 - 15/20A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD1520 |
| Series | BD |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated, SWD Rated |
Quantity
Eaton / Cutler-Hammer BD1520 - 15/20A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD1520-R |
| Series | BD |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated, SWD Rated |
Description
Part of Eaton's BR series, the BD1520 tandem breaker provides both a 15-amp and a 20-amp circuit within a standard one-inch footprint. Built for residential and commercial applications, it allows you to expand capacity without upgrading the entire enclosure. It mounts into Eaton Type BR, Bryant, Challenger, and Westinghouse load centers that accept Class CTL breakers. Featuring a rejection tab for proper installation, it delivers reliable 10 kAIC thermal-magnetic protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD1520 |
| Series | BD |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated, SWD Rated |
Product FAQs
6 answersWhat is the difference between the Eaton BD1520 and BRD1520?
The BD1520 is a CTL (Circuit Total Limiting) tandem breaker with a rejection clip, designed for panels with notched bus bars. The BRD1520 is a Non-CTL tandem breaker without a rejection clip, intended for older panels that do not restrict tandem placement.
Can I use the BD1520 to replace an older Challenger tandem breaker?
Yes, the Eaton BD1520 is the UL listed replacement for Challenger Type A tandem breakers in panels that accept CTL breakers.
What wire material is the BD1520 rated to accept?

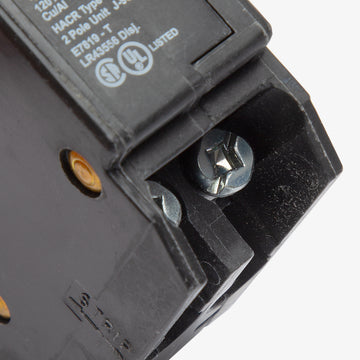

The box lugs on this breaker are rated for both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 4 AWG.
Does the BD1520 require a specific type of bus bar for installation?
Yes. Because it is a CTL breaker equipped with a rejection tab, it must be installed on a notched bus bar within a compatible Eaton BR, Bryant, Westinghouse, or Challenger load center.
Are the 15A and 20A circuits on this tandem breaker independent?
Yes, the BD1520 provides two independent circuits from a single 1-inch pole space. If one circuit experiences an overload or short circuit, it will trip independently without affecting the other circuit.
Will this breaker fit in a Square D or Siemens panel?
No. The BD1520 is designed exclusively for Eaton Type BR, Bryant, Challenger, and Westinghouse load centers. It is not interchangeable with Square D Homeline, Siemens, or other manufacturer panels.
