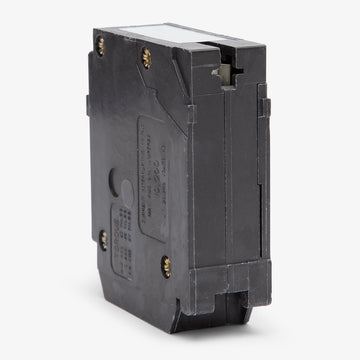

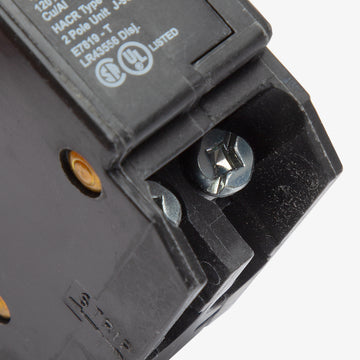

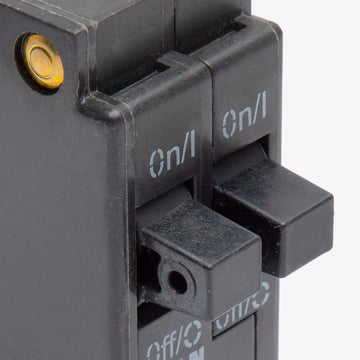

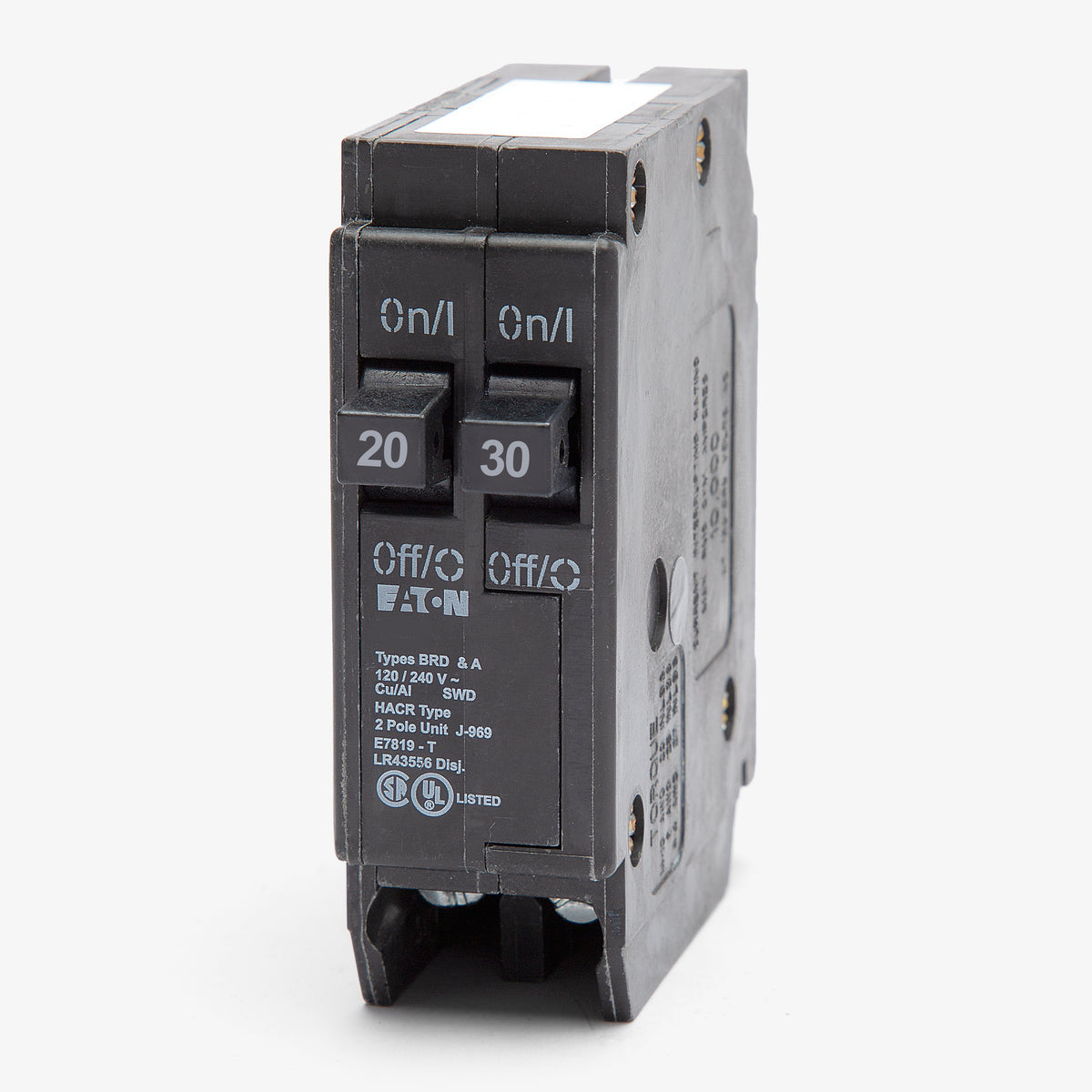

Eaton / Cutler-Hammer BD2030 20/30A Tandem Miniature Circuit Breaker
- 20/30A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BD2030 - 20/30A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BD2030 - 20/30A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD2030 |
| Series | BD |
| Amperage | 20/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Quantity
Eaton / Cutler-Hammer BD2030 - 20/30A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD2030-R |
| Series | BD |
| Amperage | 20/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Description
Maximizing available space, the Eaton BD2030 is a Type BD tandem breaker that provides two independent circuits (20A and 30A) while occupying just one 1-inch pole space. This plug-on unit mounts into Eaton Type BR, Bryant, Challenger, and Westinghouse load centers. It serves as a drop-in replacement for legacy BRD2030 and A2030 models. Rated 10 kAIC at 120/240V, it features thermal-magnetic trip technology and a Class CTL rejection tab to ensure proper installation in notched bus stabs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD2030 |
| Series | BD |
| Amperage | 20/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Product FAQs
6 answersHow many panel spaces does the BD2030 require?
The BD2030 is a tandem breaker that provides two independent circuits, one 20A and one 30A, while occupying a single 1-inch pole space in the panel.
Does this breaker feature a CTL rejection tab?
Yes, the BD2030 is a Class CTL (Circuit Total Limiting) breaker. It includes a rejection tab that restricts installation to notched bus stabs in panels designed to accept tandem breakers.
What wire sizes are compatible with the BD2030?
The box lugs accept 14 AWG to 4 AWG copper or aluminum (Cu/Al) wire.
Which legacy breakers can the BD2030 replace?
This breaker serves as a direct replacement for older Bryant, Challenger, and Westinghouse tandem breakers with the same specifications, including legacy part numbers BRD2030 and A2030.
Is the BD2030 rated for HACR applications?
Yes, Eaton Type BD duplex breakers carry a listing for use with Heating, Air Conditioning, and Refrigeration (HACR) equipment.
Which load centers are approved for use with the BD2030?
It is designed for use in Eaton Type BR load centers, as well as compatible legacy Bryant, Challenger, and Westinghouse panels that accept CTL tandem breakers.
