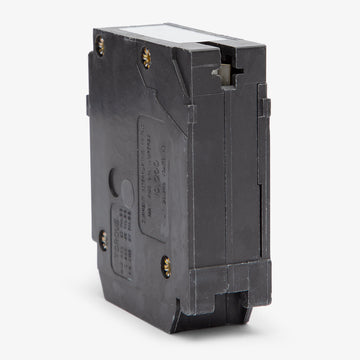

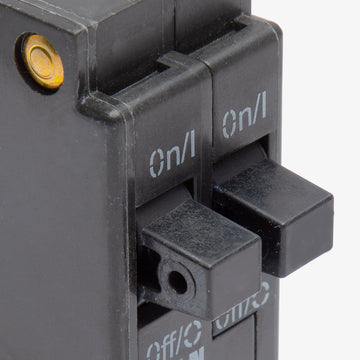

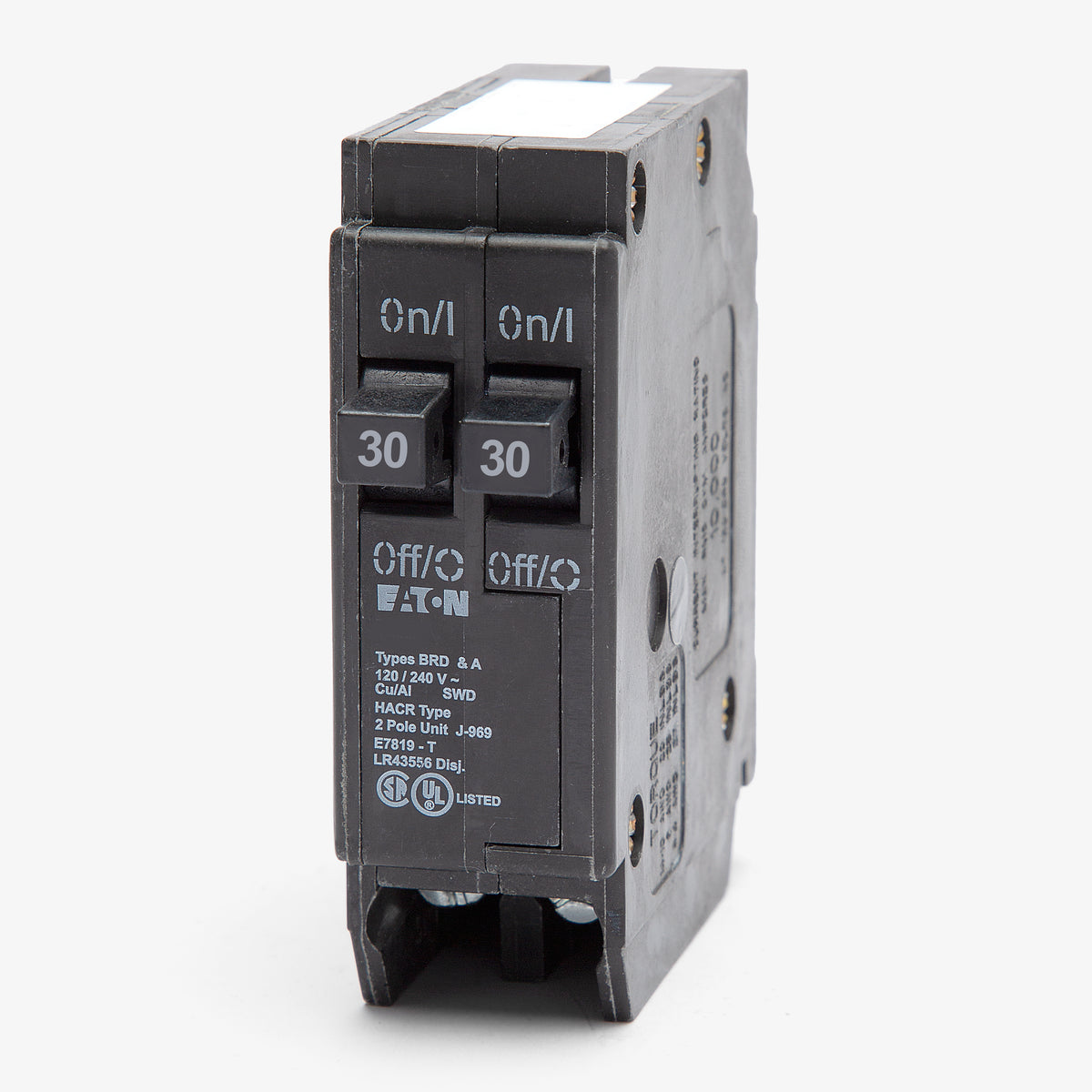

Eaton / Cutler-Hammer BD3030 30/30A Tandem Miniature Circuit Breaker
- 30/30A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BD3030
30/30A Tandem Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BD3030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BD3030 - 30/30A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BD3030 - 30/30A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD3030 |
| Series | BD |
| Amperage | 30/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BD3030 - 30/30A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD3030-R |
| Series | BD |
| Amperage | 30/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Similar Items
15/15A Tandem Miniature Circuit Breaker
30A Tandem Miniature Circuit Breaker
Description
Engineered to maximize distribution, the Eaton BD3030 tandem breaker fits two 30A circuits into a single 1-inch footprint. It allows for new circuits when panel spaces are full. The plug-on connection installs into Eaton Type BR, Bryant, Challenger, and Westinghouse load centers. It replaces discontinued BRD3030 and A3030 breakers. A Class CTL rejection tab prevents overloading in non-notched bus stabs. It provides thermal-magnetic protection with a 10 kAIC rating at 120/240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BD3030 |
| Series | BD |
| Amperage | 30/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, CTL, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, CTL Rejection, Rejection Tab, HACR Rated |
Product FAQs
6 answersDoes the Eaton BD3030 feature a rejection clip?
Yes, the BD3030 is a Class CTL tandem breaker equipped with a rejection tab. It will only seat into panel bus stabs that are specifically notched to accept CTL breakers, preventing overloading in non-CTL panels.
Which older circuit breakers does the BD3030 replace?
The Eaton BD3030 serves as a direct replacement for discontinued Bryant, Challenger, and Westinghouse BRD3030 and A3030 tandem breakers.
How does a tandem breaker like the BD3030 save panel space?
The BD3030 provides two independent 30-amp, 120V circuits while occupying only a single 1-inch slot in your load center. This allows you to add circuits to a panel that is otherwise full.
Which load centers can accept the BD3030 breaker?
This plug-on breaker is compatible with Eaton Type BR, Bryant, Challenger, and Westinghouse load centers, provided the panel is designed to accept CTL tandem breakers.
Can I use a BD3030 to replace a standard single-pole BR breaker?
Yes, the BD3030 fits into the same 1-inch space as a standard single-pole BR breaker, but it provides two independent 30-amp circuits. This is useful for adding a circuit to a full panel, as long as the specific bus slot accepts CTL tandem breakers.
Is the Eaton BD3030 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 30-amp circuit.
