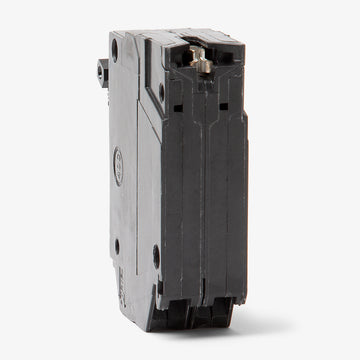

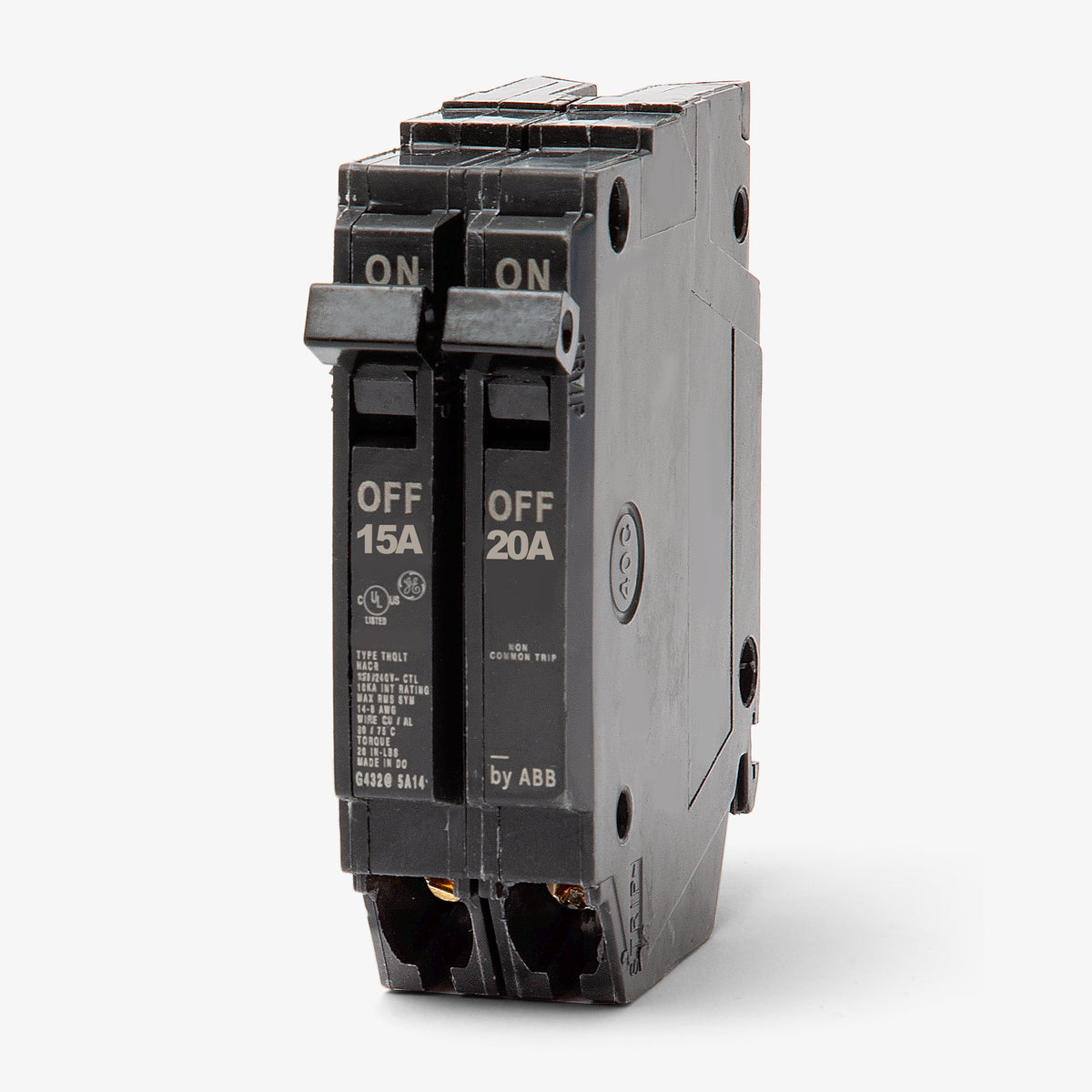

ABB / General Electric THQLT1520 15/20A Tandem Miniature Circuit Breaker
- 15/20A
- 1 Pole
- Plug-On
Quantity
ABB / General Electric THQLT1520 - 15/20A Tandem Miniature Circuit Breaker
New
Quantity
Description
Built to maximize enclosure capacity, this 15/20A tandem breaker delivers two distinct circuits from a single pole position. It is ideal for residential applications where panel space is limited. The plug-on device installs into GE PowerMark and ABB Reliahome load centers. It replaces the THQLT1520A model, providing an efficient solution for adding branch circuits to existing setups. Featuring a 10 kAIC interrupt rating, it utilizes thermal-magnetic protection and carries HACR certification.
Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQLT |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|

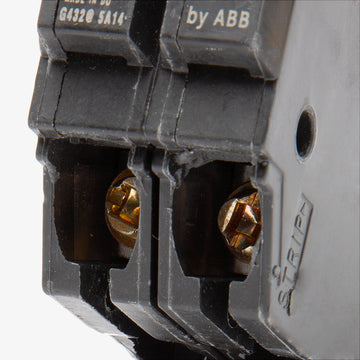

| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Load Centers, ABB Reliahome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Standards | HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Tandem |
Product FAQs
6 answersWhat is the difference between GE THQLT and THQP tandem breakers?
THQP breakers are 1/2-inch wide and require specific panel slots with mounting wing stabs. The THQLT series are 1-inch wide tandem breakers that fit into standard 1-inch slots, providing two circuits in a single space without requiring wing stabs.
Which load centers are compatible with the THQLT1520 tandem breaker?
This breaker is designed for use in single-phase ABB Reliahome and GE PowerMark load centers. It installs in standard 1-inch breaker spaces.
Can I use the THQLT1520 to replace an older GE TR1520 breaker?
Yes, the THQLT1520 is the direct replacement for older GE TR1520 and TR1520-R tandem circuit breakers.
How many circuits does the THQLT1520 provide?
It provides two independent single-pole circuits, one 15A and one 20A, while only occupying a single 1-inch breaker space in your panel.
What size wire is accepted by the lugs on the THQLT1520?
The box lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
Is the THQLT1520 rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
