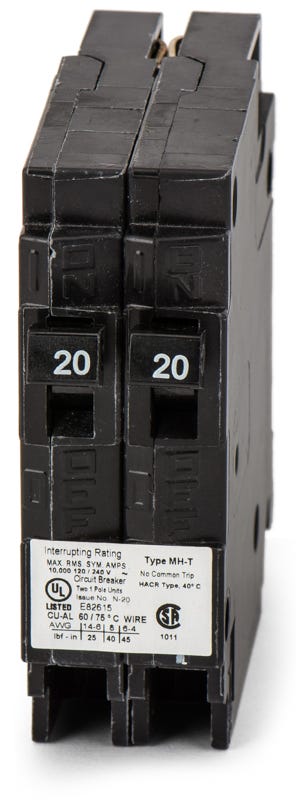

Siemens / Murray MP2020N 20/20A Tandem Miniature Circuit Breaker
- 20/20A
- 1 Pole
- Plug-On
Quantity
Siemens / Murray MP2020N - 20/20A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens / Murray MP2020N - 20/20A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP2020N |
| Series | MP |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated, Insta-Wire |
Quantity
Siemens / Murray MP2020N - 20/20A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP2020N-R |
| Series | MP |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated, Insta-Wire |
Description
Part of the legacy Murray MP series, the MP2020N tandem breaker provides two independent 20A circuits in a single-pole footprint. It is engineered for residential and commercial distribution where panel space is limited. This plug-on unit mounts into older Murray and Siemens load centers that accept non-CTL components. As a discontinued item, it serves as an exact replacement to restore power without panel modifications. Rated for 10kA at 120/240VAC, it features thermal-magnetic protection.Specifications
| Brand | Siemens / Murray |
|---|---|
| Part Number | MP2020N-R |
| Series | MP |
| Amperage | 20/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | MP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Murray Load Centers, Siemens Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated, Insta-Wire |
Product FAQs
6 answersIs the MP2020N a CTL or Non-CTL circuit breaker?
The MP2020N is a Non-CTL (Circuit Total Limiting) tandem breaker. It does not have a rejection clip, which allows it to be installed in older panels that lack CTL rejection features.
What is the difference between the MP2020 and the MP2020N?
The standard MP2020 is a CTL breaker equipped with a rejection clip for modern panels. The MP2020N is a Non-CTL breaker without a rejection clip, intended strictly for older panels manufactured before 1968.
What is the Siemens equivalent for the Murray MP2020N?
The direct Siemens equivalent is the Q2020NC. Since Siemens acquired Murray, the Q2020NC serves as the exact replacement for the MP2020N in panels approved for Non-CTL breakers.
Can the MP2020N be installed in modern load centers?
No. The MP2020N is designed specifically for older, pre-1968 load centers that do not enforce circuit total limits. Modern panels require CTL breakers, such as the MP2020 or Q2020, which feature a rejection clip.
How many circuits does this tandem breaker provide per space?
This tandem breaker provides two independent 20-amp circuits while occupying only a single one-inch slot in the panel. This is ideal for adding circuits to an older, fully populated load center.
Does the MP2020N provide AFCI or GFCI protection?
No. The MP2020N is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include Arc Fault (AFCI) or Ground Fault (GFCI) capabilities.
