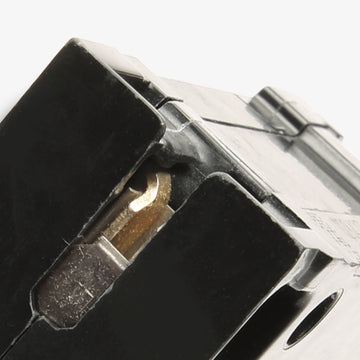

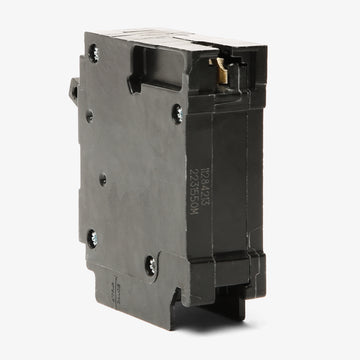

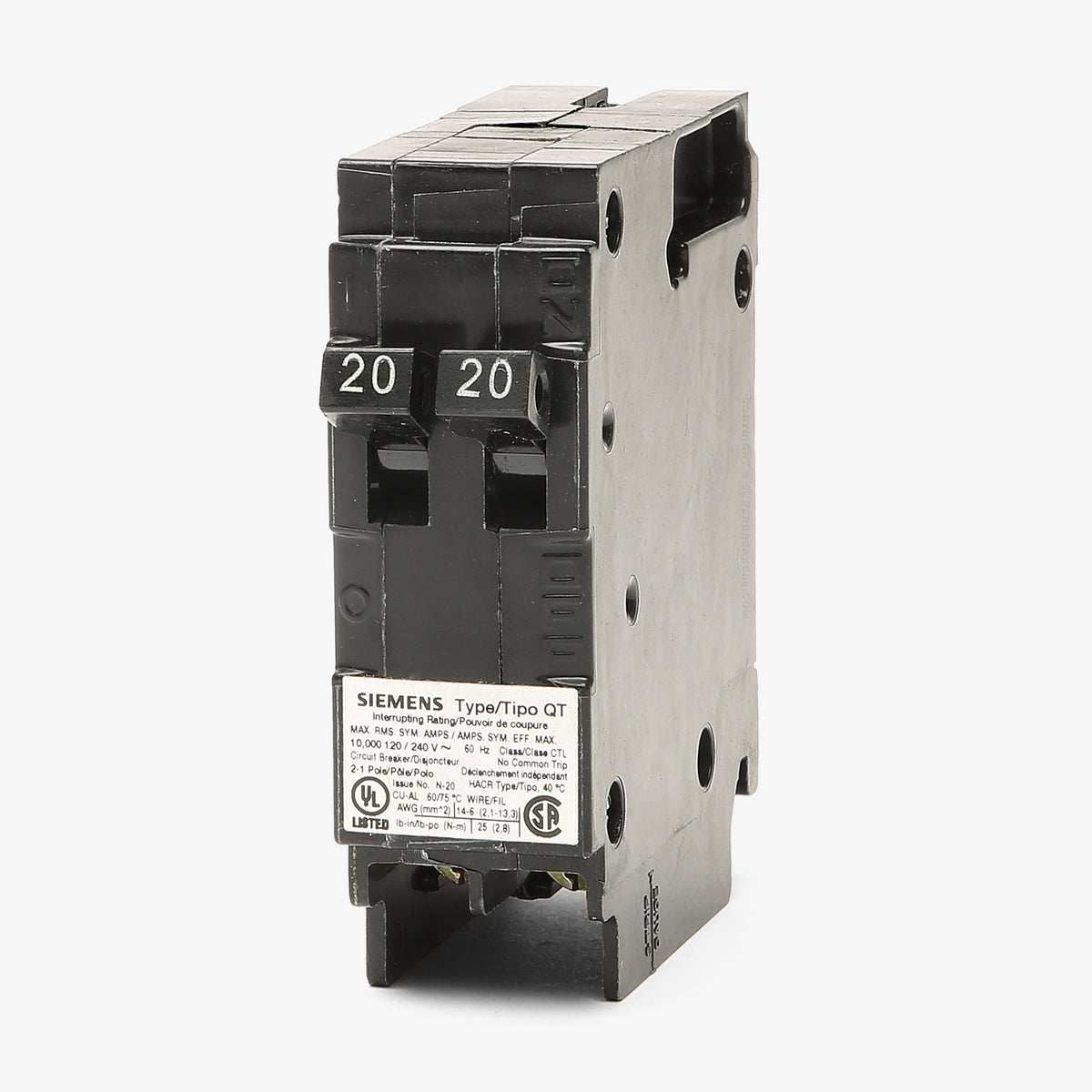

Siemens Q2020 20/20A Tandem Miniature Circuit Breaker
- 20/20A
- 2 Pole
- Plug-On
Siemens
Q2020
20/20A Tandem Miniature Circuit Breaker
Brand
Siemens
SKU
Q2020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q2020 - 20/20A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Siemens Q2020 - 20/20A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q2020 |
| Series | QT |
| Amperage | 20/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|

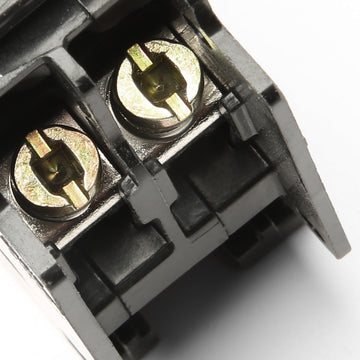

| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (CTL), Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, SWD Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens Q2020 - 20/20A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q2020-R |
| Series | QT |
| Amperage | 20/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (CTL), Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, SWD Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20/30A Tandem Miniature Circuit Breaker
30/20A Tandem Miniature Circuit Breaker
30/30A Tandem Miniature Circuit Breaker
Description
Built for residential applications, the Siemens Q2020 tandem breaker provides two independent 20A circuits in a single one-inch pole. This design is ideal for adding circuits when a panel is full. Featuring a CTL rejection clip, this plug-on breaker mounts into compatible Siemens and Murray load centers designed for tandems. It also replaces the legacy MP2020. Providing 10 kAIC interrupting capacity, it utilizes thermal-magnetic trip technology and is HACR and SWD rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q2020 |
| Series | QT |
| Amperage | 20/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers (CTL), Murray Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, SWD Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersCan I use the Q2020 for a 240V circuit or a multi-wire branch circuit?
No. Both circuits on this tandem breaker connect to a single bus bar stab, meaning they pull from the same phase. Wiring a multi-wire branch circuit (MWBC) to it will overload the shared neutral, and it cannot supply 240V equipment.
Will the Q2020 fit into any available space in my panel?
No. This is a CTL (Circuit Total Limiting) breaker equipped with a physical rejection clip. It will only seat properly in panel slots specifically notched to accept tandems. You must check your panel wiring diagram for approved tandem locations.
Is this the correct replacement for a Murray MP2020?
Yes. Siemens acquired Murray, and the Q2020 is the official replacement for the legacy Murray MP2020 tandem breaker.
What is the difference between the Q2020 and Q2020NC?
The Q2020 includes a CTL rejection clip to prevent installation in non-rated panel slots. The Q2020NC is the non-CTL version, which lacks the clip and is designed strictly for older panels manufactured before 1968.
Does this tandem breaker require two panel spaces?
No. It installs into a standard 1-inch single-pole space but provides two independent circuits. This design is ideal for freeing up room in a crowded load center.
Is the Q2020 rated for HVAC equipment or switching duty?
Yes. It is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also SWD rated, allowing it to be used for switching duty to control fluorescent lighting circuits.
