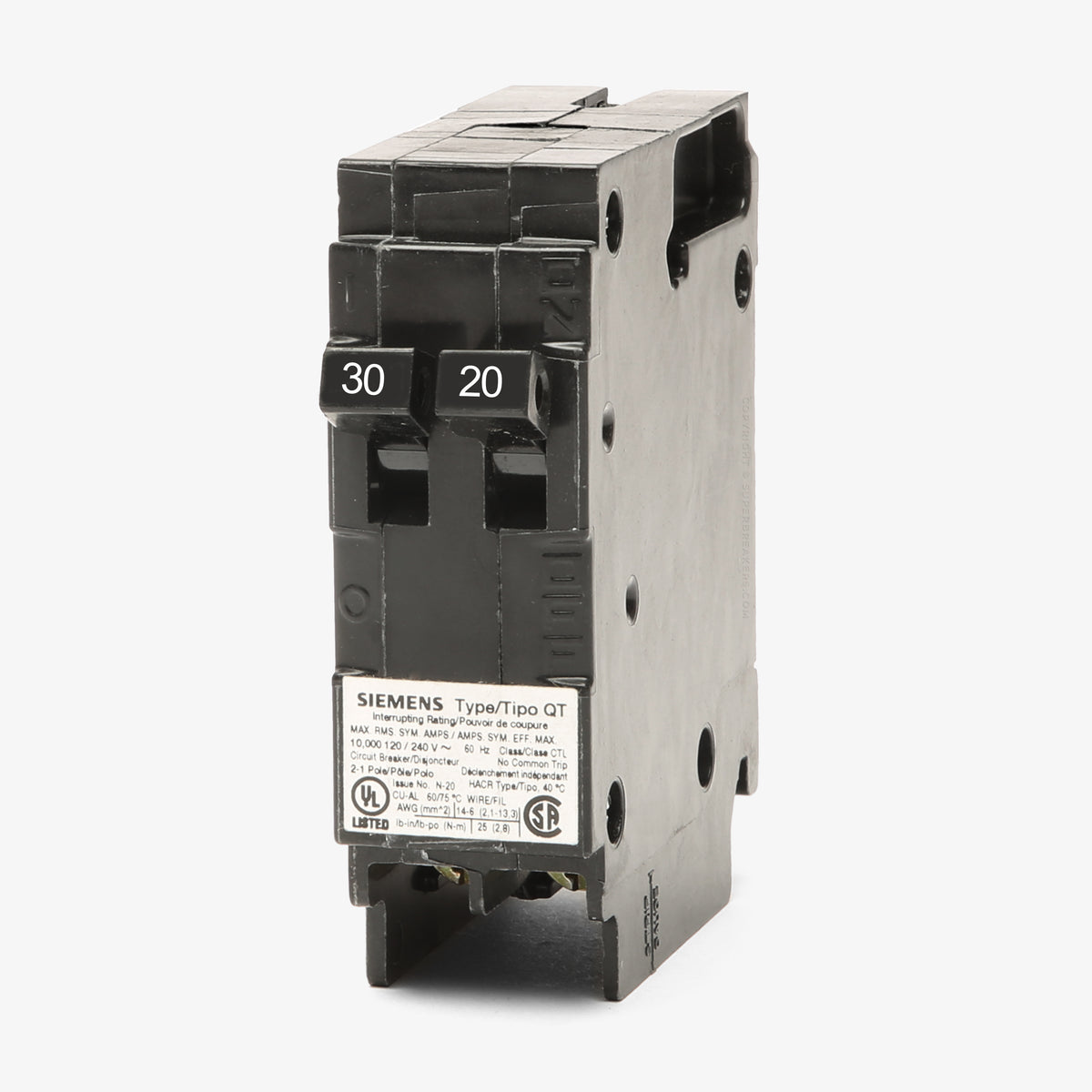

Siemens Q3020 30/20A Tandem Miniature Circuit Breaker
- 30/20A
- 2 Pole
- Plug-On
Siemens
Q3020
30/20A Tandem Miniature Circuit Breaker
Brand
Siemens
SKU
Q3020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q3020 - 30/20A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Siemens Q3020 - 30/20A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3020 |
| Series | QT |
| Amperage | 30/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|

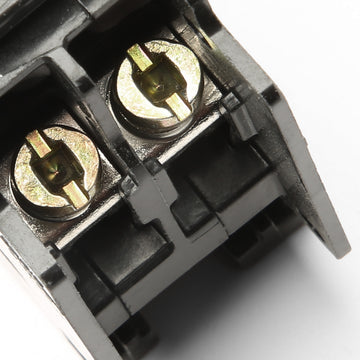

| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Sold out
Quantity
Siemens Q3020 - 30/20A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3020-R |
| Series | QT |
| Amperage | 30/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Similar Items
20/30A Tandem Miniature Circuit Breaker
20/20A Tandem Miniature Circuit Breaker
15A Tandem Miniature Circuit Breaker
Description
Engineered for residential power distribution, the Siemens Q3020 tandem breaker delivers 30A and 20A independent circuits from a single slot. This Type QT plug-on breaker mounts into compatible Siemens, EQ, Ultimate, PL, and ES series load centers to safely expand panel capacity. Featuring a 10kAIC rating at 120VAC, it utilizes reliable thermal-magnetic trip technology for overload and short-circuit protection. The space-saving design is HACR rated and includes independent trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q3020 |
| Series | QT |
| Amperage | 30/20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Product FAQs
6 answersWhich load centers are compatible with the Q3020 tandem breaker?
This breaker is designed for use in Siemens, EQ, Ultimate, PL Series, and ES Series load centers that accept QT type tandem breakers. The panel must have notched bus bars to accommodate the CTL rejection clip.
Is the Q3020 a CTL or non-CTL circuit breaker?

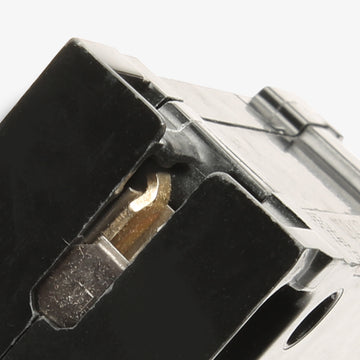

The Q3020 is a CTL (Circuit Total Limiting) breaker. It features a rejection clip that prevents installation in panel slots not specifically designed for tandem breakers. For older, pre-1968 panels without notched bus bars, a non-CTL breaker like the Q3020NC is required.
How much panel space does this tandem breaker require?
The Q3020 provides two independent single-pole circuits (one 30A and one 20A) while occupying only a single 1-inch space in the load center.
Can the Q3020 replace legacy Murray tandem breakers?
Yes, Siemens QT series breakers are the manufacturer-approved replacements for legacy Murray MP-T series tandem breakers. The Q3020 is the direct replacement for the Murray MP3020.
Can the Q3020 be used in RV electrical panels?
Yes, the Q3020 is commonly used in RV electrical systems and power centers, such as those made by Parallax Power Components, provided the panel is designed to accept Siemens CTL type QT breakers.
Is this breaker rated for continuous loads?
Standard miniature circuit breakers like the Q3020 are rated for continuous loads up to 80 percent of their maximum amperage rating, unless specifically marked for 100 percent continuous operation.
