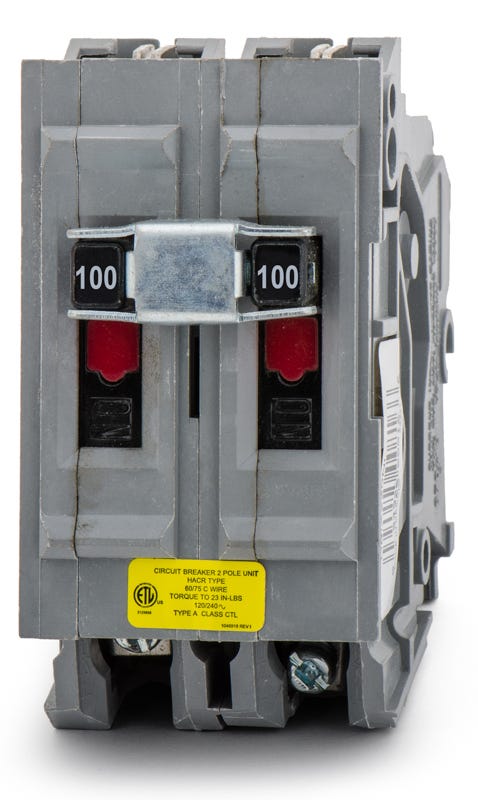

Wadsworth A2100NI Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Wadsworth
A2100NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A2100NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A2100NI - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Wadsworth A2100NI - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A2100NI |
| Series | A |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Wadsworth A2100NI - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A2100NI |
| Series | A |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
90A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
A drop-in solution for aging electrical systems, the Wadsworth A2100NI is a 100-amp, two-pole breaker rated for 120/240V applications. It installs seamlessly into classic Wadsworth Type A load centers, providing an exact OEM match for main or large feeder circuits. The unit features standard 10kAIC interrupting capacity, non-interchangeable construction, and HACR certification for HVAC loads. For updated aftermarket options, this model is cross-referenced to the UBIA2100NI replacement.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A2100NI |
| Series | A |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich load centers accept the Wadsworth A2100NI breaker?
This breaker is designed specifically for classic Wadsworth Type A load centers. It features a proprietary plug-on design that is not interchangeable with other breaker brands or panel types.
What is the direct aftermarket replacement for the Wadsworth A2100NI?
The Connecticut Electric UBIA2100NI is the direct, UL-listed aftermarket replacement for this breaker, designed to fit the same Wadsworth Type A panels.
Is the Wadsworth A2100NI suitable for protecting HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration motor loads.
What does the LI trip function code mean on the A2100NI?
The LI designation indicates a thermal-magnetic trip unit that provides a Long-Time delay for standard overload protection and an Instantaneous trip response to clear short circuits.
How is the A2100NI secured inside the panel?
It utilizes a plug-on mounting style that snaps directly onto the busbar of a Wadsworth Type A load center, requiring no mounting bolts or screws.
Can the A2100NI be used as a main breaker?
Yes, this 100-amp breaker is frequently used as a main breaker or for large feeder circuits in Wadsworth panels, provided the available fault current does not exceed its 10kAIC rating.
