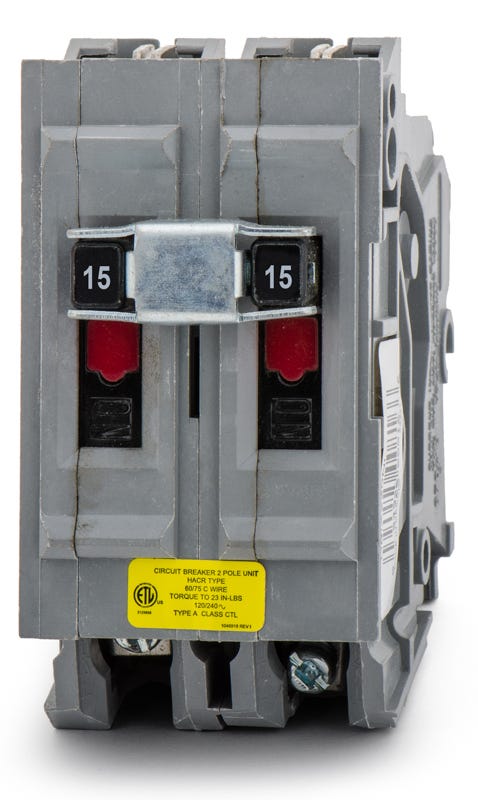

Wadsworth A215NI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Wadsworth
A215NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A215NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A215NI - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Wadsworth A215NI - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A215NI-R |
| Series | A |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Quantity
Wadsworth A215NI - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A215NI |
| Series | A |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Similar Items
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Serving as a vital component for legacy residential systems, the Wadsworth A215NI delivers 15A of thermal-magnetic protection. This two-pole miniature breaker is built to handle standard 120/240V loads in older homes where original hardware is still in use. Snaps securely into Wadsworth Type A panelboards, ensuring an exact fit. For modern replacements, the Connecticut Electric UBIA215NI is a fully compatible substitute. Delivering a 10 kAIC interrupting capacity, this unit is HACR rated.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A215NI |
| Series | A |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Product FAQs
4 answersIs there a modern replacement for the Wadsworth A215NI?
Yes. Connecticut Electric manufactures a direct, ETL-listed replacement for this breaker under the part number UBIA215NI. It is specifically designed to fit the same legacy Wadsworth Type A load centers.
How much panel space does the Wadsworth A215NI require?
As a 2-pole Type A circuit breaker, it requires two standard 1-inch spaces, occupying a total of 2 inches of width in the load center.
Can the A215NI be installed in modern load centers?
No. The A215NI features a proprietary plug-on design that is exclusively compatible with obsolete Wadsworth Type A panels. It cannot be interchanged with modern panels from brands like Square D, Siemens, or Eaton.
What applications are suitable for a 15A, 240V breaker like the A215NI?
This 15-amp, 2-pole breaker is typically used for dedicated 240V circuits with lower power draws, such as small well pumps, electric baseboard heaters, or small 240V window air conditioning units.
