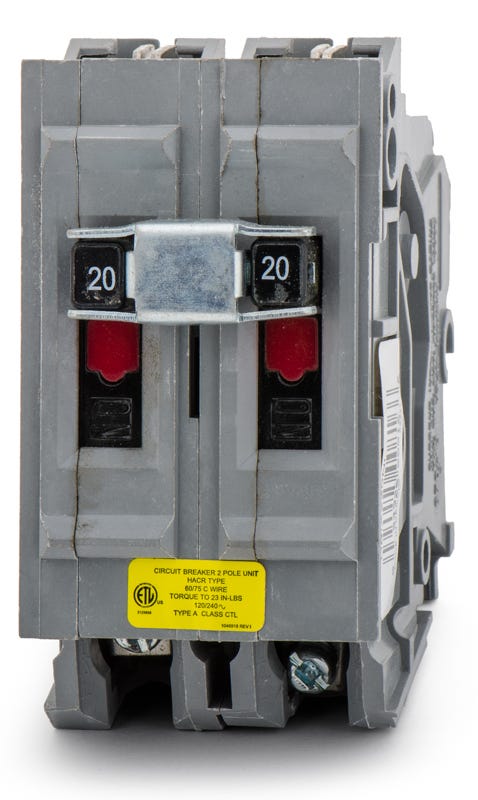

Wadsworth A220NI Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Wadsworth
A220NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A220NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A220NI - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Wadsworth A220NI - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A220NI |
| Series | A |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Sold out
Quantity
Wadsworth A220NI - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A220NI-R |
| Series | A |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Maintaining older electrical systems requires precise components, and the A220NI delivers exactly that for 20-amp circuits. This two-pole device provides essential overcurrent safety for homes equipped with vintage distribution equipment. Installation is straightforward since it fits perfectly into Wadsworth Type A enclosures. When original stock is unavailable, the UBIA220NI serves as the modern replacement option. The non-interchangeable trip mechanism ensures consistent performance.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A220NI |
| Series | A |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Product FAQs
6 answersWhat load centers are compatible with the Wadsworth A220NI?
This breaker is designed exclusively for legacy Wadsworth Type A load centers. It features a specific plug-on mounting clip that fits the busbar design of these vintage enclosures.
Is there a modern replacement available for the Wadsworth A220NI?
Yes. Because Wadsworth is a defunct legacy brand, Connecticut Electric manufactures a direct replacement under the catalog number UBIA220NI.
What does the "NI" designation mean on this Wadsworth breaker?
The "NI" stands for Non-Interchangeable. This indicates a Class CTL (Circuit Total Limiting) configuration, which prevents the installation of more breakers than the panelboard is rated to accept.
What wire gauge is accepted by the terminals on the A220NI?
The box lugs on this breaker accommodate wire sizes from 14 AWG to 6 AWG. Always verify the appropriate wire size for a 20-amp circuit based on current National Electrical Code (NEC) requirements.
How does the trip mechanism function on the A220NI?
It utilizes fixed thermal-magnetic trip technology. The thermal element provides a long-time delay to prevent nuisance tripping on temporary overloads, while the magnetic element offers an instantaneous response to clear severe short circuits.
What types of loads are typically protected by a 20-amp, two-pole breaker?
In residential and light commercial applications, a 20-amp, 240-volt breaker is commonly installed for dedicated equipment such as baseboard heaters, well pumps, or small air conditioning units.
