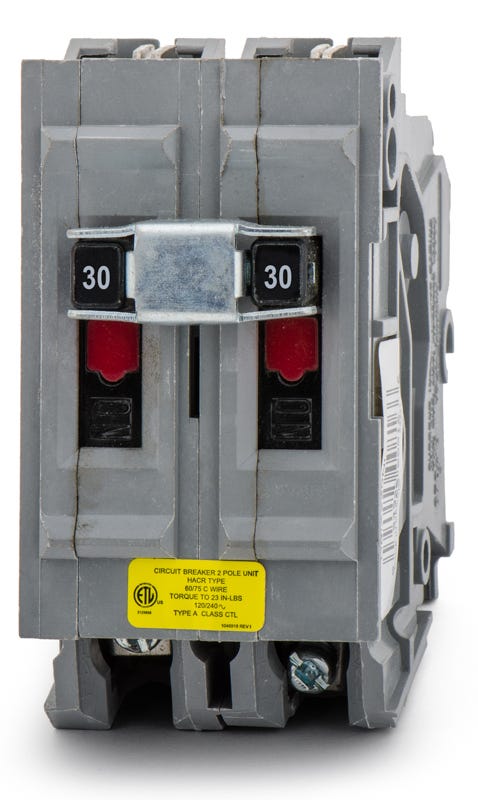

Wadsworth A230NI Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Wadsworth
A230NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A230NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A230NI - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Wadsworth A230NI - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A230NI |
| Series | A |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Class CTL |
Sold out
Quantity
Wadsworth A230NI - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A230NI-R |
| Series | A |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Class CTL |
Similar Items
40A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Sourced for residential applications, the Wadsworth A230NI provides reliable thermal-magnetic protection for 30-amp circuits. This two-pole component is essential for maintaining older electrical infrastructure where modern alternatives do not fit. It mounts into legacy Wadsworth Type A load centers, serving as an exact physical match for original installations. Users can also cross-reference this unit with the UBIA230NI substitute.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A230NI |
| Series | A |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Class CTL |
Product FAQs
6 answersWhich electrical panels accept the Wadsworth A230NI circuit breaker?
This breaker is designed exclusively for legacy Wadsworth Type A load centers. It features a non-interchangeable (NI) metal foot and Class CTL rejection mechanism to ensure proper fitment in compatible Wadsworth panels.
Is there a modern replacement available for the obsolete Wadsworth A230NI?
Yes. Connecticut Electric manufactures a direct, safety-certified replacement under the catalog number UBIA230NI. This modern substitute is ETL listed to UL 489 standards and fits the same Wadsworth Type A panels.
What size wire is required for installing the A230NI breaker?
The box lug terminals on this breaker accept copper or aluminum wiring ranging from 14 AWG to 6 AWG. Always verify the exact wire gauge required for your specific 30-amp circuit based on local electrical codes.
What types of loads is a 30-amp, 2-pole breaker typically used for?
A 30-amp, 240-volt breaker is commonly used to protect dedicated circuits for medium-draw residential appliances, such as electric water heaters, clothes dryers, or small central air conditioning units.
Does the A230NI provide both overload and short-circuit protection?
Yes. It utilizes fixed thermal-magnetic trip technology. The thermal element provides long-time protection against gradual overloads, while the magnetic element offers instantaneous tripping to safely clear short circuits.
Can I install this Wadsworth breaker in a modern panel from a different brand?
No. The A230NI has a proprietary plug-on design with a specific metal foot configuration. It will not fit or operate safely in panels made by Square D, Siemens, Eaton, or other modern manufacturers.
