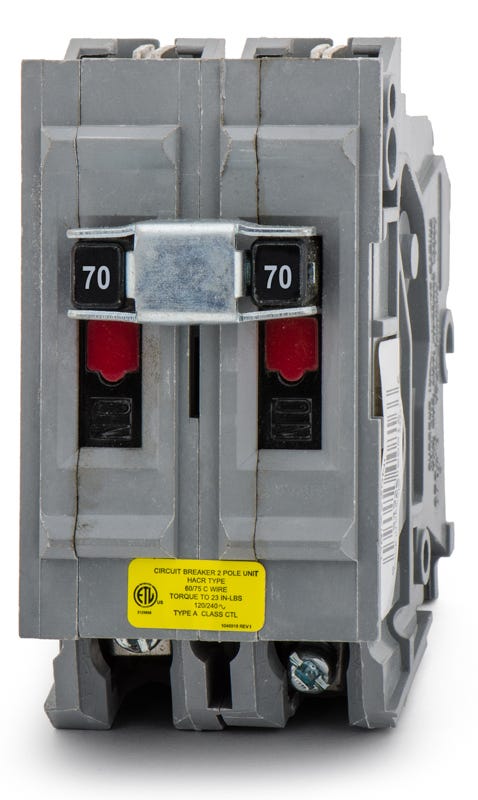

Wadsworth A270NI Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Wadsworth
A270NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A270NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A270NI - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Wadsworth A270NI - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A270NI |
| Series | A |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Sold out
Quantity
Wadsworth A270NI - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A270NI-R |
| Series | A |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Similar Items
80A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Upgrading specific circuits in older homes requires specialized hardware. This 70A, two-pole breaker delivers robust thermal-magnetic trip functions for demanding residential loads, ensuring reliable power distribution. Formulated for compatibility with Wadsworth Type A load centers, the unit mounts into the existing bus architecture. It serves as a highly sought-after replacement for the UBIA270NI.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A270NI-R |
| Series | A |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Product FAQs
5 answersWhat load centers are compatible with the Wadsworth A270NI?
This breaker is designed exclusively for Wadsworth Type A load centers. It utilizes a specific plug-on mounting design that is not interchangeable with other manufacturer panels.
Is there a modern replacement for the obsolete Wadsworth A270NI?
Yes. Connecticut Electric manufactures a direct, safety-certified replacement for this breaker under the catalog number UBIA270NI.
What does the NI designation mean on the A270NI breaker?
The NI stands for Non-Interchangeable. This indicates the breaker includes a Class CTL rejection mechanism, which prevents it from being installed in panel slots not designed for it, helping to avoid busbar overloading.
What applications are suitable for this 70A Wadsworth breaker?
This 70-amp, two-pole breaker is typically used for heavy 240V residential loads, such as feeding a subpanel or powering large electric heating equipment. It is HACR rated for use with heating, air conditioning, and refrigeration systems.
What wire sizes are accepted by the terminals on the A270NI?
The box lug terminals on this breaker accommodate wire gauges from 4 AWG up to 1/0 AWG. Ensure the selected wire size meets local electrical codes for a 70-amp circuit.
