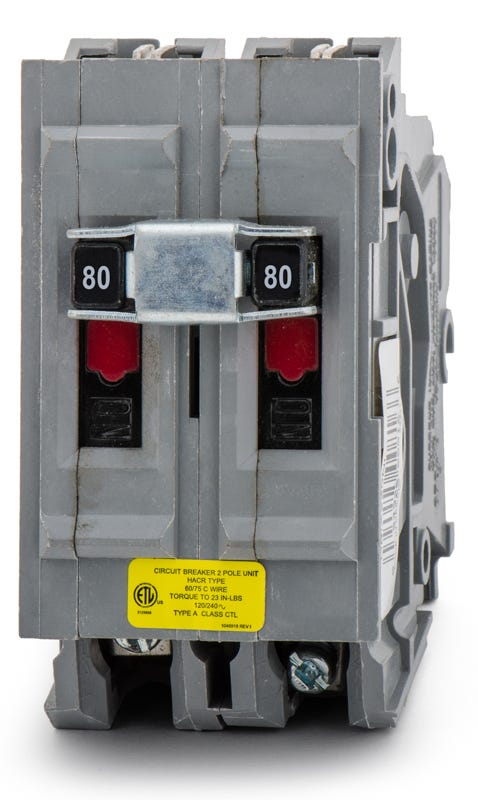

Wadsworth A280NI Miniature Circuit Breaker
- 80A
- 2 Pole
- Plug-On
Wadsworth
A280NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A280NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A280NI - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Wadsworth A280NI - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A280NI |
| Series | A |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Sold out
Quantity
Wadsworth A280NI - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A280NI-R |
| Series | A |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Similar Items
90A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Engineered to support legacy infrastructure, this 80-amp miniature breaker delivers essential overcurrent defense for residential circuits. It helps facility managers and homeowners keep older electrical systems operational and safe. The device installs into standard Wadsworth Type A panelboards using a simple plug-on mounting style. When original stock is unavailable, the UBIA280NI serves as an exact substitute for this hardware.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A280NI |
| Series | A |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class CTL |
Product FAQs
8 answersCan I install the Wadsworth A280NI in a modern electrical panel?
No. The A280NI features a proprietary plug-on design that is only compatible with legacy Wadsworth Type A load centers. It will not fit in modern panels from brands like Square D, Eaton, or Siemens.
Are there aftermarket alternatives available for the Wadsworth A280NI?
Yes. Because Wadsworth is an obsolete brand, Connecticut Electric manufactures a safety-certified direct replacement for this 80-amp breaker, commonly found under the catalog number UBIA280NI.
What is the correct wire size for installing the A280NI breaker?
The box lug terminals on this breaker are designed to accept wiring ranging from 4 AWG to 1/0 AWG. Always verify that your wire gauge safely supports an 80-amp load according to current electrical codes.
Is the 10kA AIC rating on the A280NI sufficient for residential use?
Yes, a 10,000 Ampere Interrupting Capacity (AIC) is the standard fault current rating for most residential and light commercial Wadsworth load centers.
How does the thermal-magnetic trip function protect the circuit?
The thermal component provides a delayed trip to prevent nuisance tripping during temporary overloads, while the magnetic component trips instantaneously to protect the system from severe short circuits.
Will this 80-amp breaker fit in a standard Wadsworth Type A slot?
Yes, it is designed to plug directly into the busbar of a Wadsworth Type A panel. Because it is a 2-pole breaker, it will occupy two adjacent spaces in the load center.
What applications typically require an 80-amp 2-pole breaker like the A280NI?
An 80-amp, 240-volt breaker is commonly used to feed residential subpanels or to protect heavy-duty electrical loads such as large electric heating systems and commercial equipment.
Does the A280NI require special mounting hardware?
No. It utilizes a standard plug-on connection that snaps directly onto the busbar of a Wadsworth Type A load center without the need for additional mounting screws or brackets.
