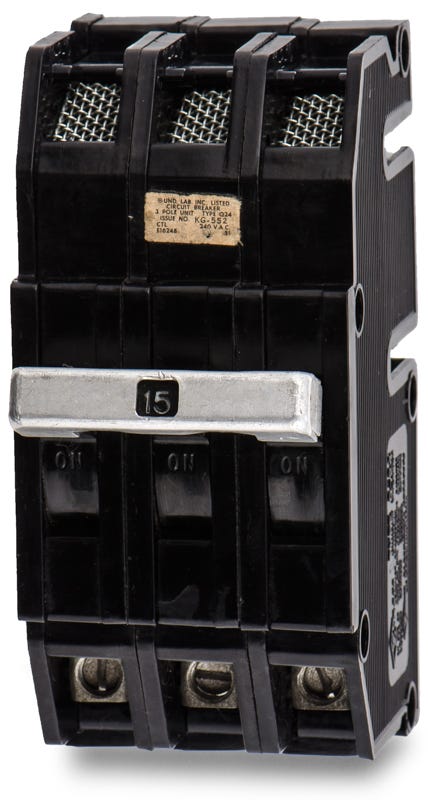

Zinsco Q243015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Zinsco
Q243015
Molded Case Circuit Breaker
Brand
Zinsco
SKU
Q243015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Zinsco Q243015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Legacy electrical systems demand precise component matching for continued operation. This 15-amp, three-pole device provides reliable overcurrent protection for commercial applications utilizing classic Zinsco enclosures. It serves as a seamless plug-on replacement for original installations and acts as an alternative to the UBIZ315. The unit mounts into existing panelboards without modifications. Featuring proven thermal-magnetic protection, it incorporates the proprietary Magnetrip design.Specifications
| Brand | Zinsco |
|---|---|
| Part Number | Q243015-R |
| Series | Q |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Zinsco Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Lugs Not Included |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhich load centers accept the Q243015 circuit breaker?
This breaker is specifically designed for legacy Zinsco panelboards and load centers that require Type Q plug-on breakers. It will not fit in modern panels from other manufacturers.
What is the Connecticut Electric cross-reference for the Zinsco Q243015?
The Connecticut Electric UBIZ315 serves as a direct, newly manufactured replacement for the original Zinsco Q243015. It features the same physical dimensions and plug-on connection for legacy Zinsco enclosures.
How does the Q series breaker connect to the panel busbar?
The Q243015 utilizes a plug-on mounting design that clips directly onto the busbar of compatible Zinsco load centers. It uses the proprietary Magnetrip connection style, which requires no additional mounting hardware.
What should be inspected in the panel before installing a replacement Zinsco breaker?
Before installing the Q243015, thoroughly inspect the panel's busbar for any signs of pitting, arcing, or thermal damage. Legacy Zinsco load centers are known for connection degradation, so a clean and secure busbar connection is essential for safe operation.
What wire types and sizes are supported by the Q243015 terminals?
The breaker lugs are rated for both copper (Cu) and aluminum (Al) conductors. They accept wire sizes ranging from 14 AWG to 8 AWG, allowing flexibility for various branch circuit installations.
What applications typically require the 3-pole configuration of the Q243015?
This 3-pole breaker is used in three-phase electrical systems to protect equipment such as small commercial motors, HVAC units, or light industrial machinery that requires a 240VAC three-phase power supply.
