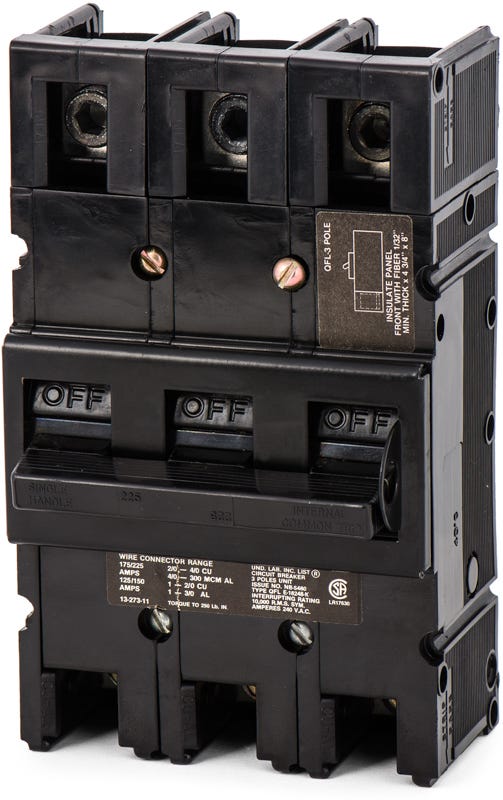

Zinsco QFL23225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Quantity
Zinsco QFL23225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy Zinsco lineup, the QFL23225 is a 225A, 3-pole molded case circuit breaker. It provides reliable thermal-magnetic protection at 240VAC for commercial applications. This unit-mount breaker installs into compatible Zinsco panelboards and switchboards. As an exact replacement, it eliminates retrofitting when servicing older infrastructure. Featuring feed-through construction and included lugs, it delivers a 10kAIC rating.Specifications
| Brand | Zinsco |
|---|---|
| Part Number | QFL23225 |
| Series | QFL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Zinsco Panelboards, Switchboards |
| Wire Gauge | 2/0 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Line and Load Lugs Included |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Main Breaker, Feed-Through Construction |
Product FAQs
6 answersWhat type of panels accept the Zinsco QFL23225?
This breaker is designed for installation in legacy Zinsco panelboards and switchboards that accommodate QFL-frame unit-mount circuit breakers. It is commonly used as a main breaker or large feeder in commercial electrical systems.
How is the QFL23225 installed in the enclosure?
It utilizes a unit-mount, feed-through construction. Instead of plugging directly onto a busbar, the breaker bolts to the panel chassis and connects to the electrical system using cables or bus links attached to its line and load lugs.
Can this breaker replace Challenger or Sylvania QFL models?
Yes. The Zinsco product line was historically manufactured under the Sylvania, Challenger, and GTE brand names. A QFL23225 breaker from any of these legacy brands shares the exact same physical dimensions, mounting configuration, and thermal-magnetic trip characteristics.
What safety inspections are required when installing this breaker?
Legacy Zinsco panels can be prone to busbar degradation. Before installing the QFL23225, a licensed electrician must thoroughly inspect the switchboard or panelboard mounting hardware and connection points for any signs of pitting, arcing, or thermal damage.
Does the QFL23225 have adjustable trip settings?
No, this breaker features a fixed thermal-magnetic trip unit. It provides standard long-time and instantaneous (LI) protection functions that are factory calibrated and cannot be adjusted in the field.
What type of conductors can be used with the factory lugs?
The included lugs are dual-rated for both aluminum and copper (Al/Cu) wire ranging from 2/0 AWG to 300 kcmil. When terminating aluminum conductors, always apply a listed oxide-inhibiting joint compound to ensure a secure, long-lasting connection.
