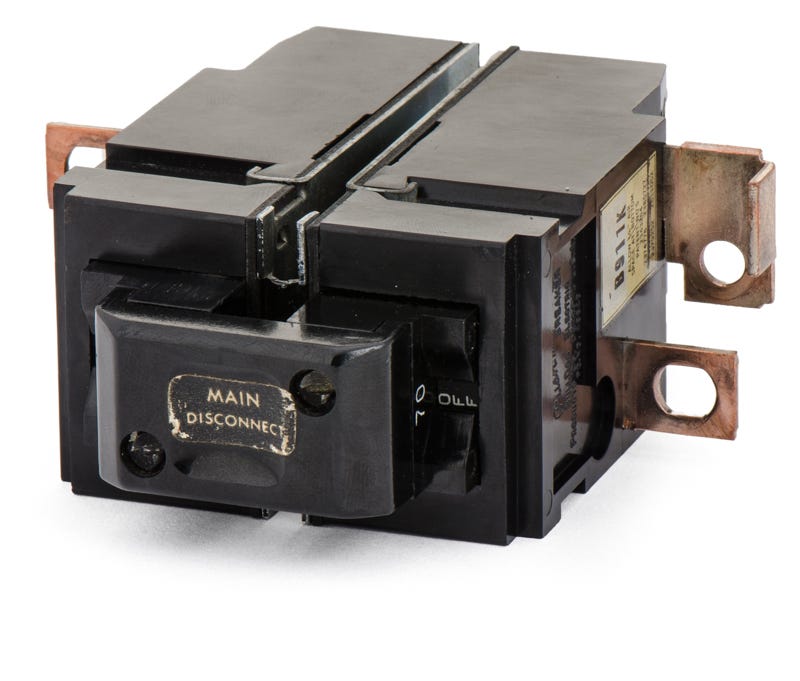

Siemens / ITE 11270 P270 - 70A 2 Pole Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Quantity
Siemens / ITE P270 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Manufactured by Siemens, this thermal-magnetic unit provides reliable overcurrent protection for residential and commercial applications. It serves as an exact fit for aging infrastructure requiring specific form factors. Designed specifically for Pushmatic load centers, it mounts securely using a bolt-on connection. This model acts as a seamless substitute for the UBIP270, eliminating the need for complex retrofits. It features a distinctive push-button mechanism and carries an HACR rating.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | 11270-R |
| Series | P |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Pushmatic Load Centers |
| Wire Gauge | 4 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
Product FAQs
6 answersWhat electrical panels are compatible with the ITE 11270 circuit breaker?
This breaker is designed exclusively for Pushmatic load centers. It will fit older Bulldog, ITE, and Siemens Pushmatic panels that accept Type P2 bolt-on breakers. It is not compatible with standard plug-on or modern DIN rail panels.
How does the Pushmatic P270 breaker connect to the panel busbar?
The P270 features a positive bolt-on connection. Instead of snapping onto the busbar like modern residential breakers, it must be securely bolted down to ensure a reliable electrical connection and prevent arcing.
How do I operate and reset this Pushmatic breaker?
Unlike standard toggle breakers, Pushmatic breakers use a push-button mechanism. You press the button to turn the circuit on or off. If the breaker trips, you must push the button firmly to the OFF position to reset the internal mechanism, then push it again to turn it back ON.
Are the ITE 11270 and Siemens P270 the same circuit breaker?
Yes. The P270 is the catalog designation for a 70-amp, 2-pole Pushmatic breaker, while 11270 is the manufacturer part number. Bulldog, ITE, and Siemens all manufactured this exact breaker design before production shifted to aftermarket replacements like the Connecticut Electric UBIP270.
How can I tell if this breaker has tripped?
Pushmatic breakers feature a visual indicator flag next to the push button that displays the current status. When an overload or short circuit occurs, the internal thermal magnetic trip mechanism activates, and the indicator will show that the breaker is no longer in the ON position.
What wire sizes are accepted by the lugs on the P270 breaker?
The terminal lugs on this 70-amp breaker are rated to accept wire ranging from 4 AWG to 1/0 AWG. Always verify that your wire gauge matches the circuit ampacity and local electrical codes.
