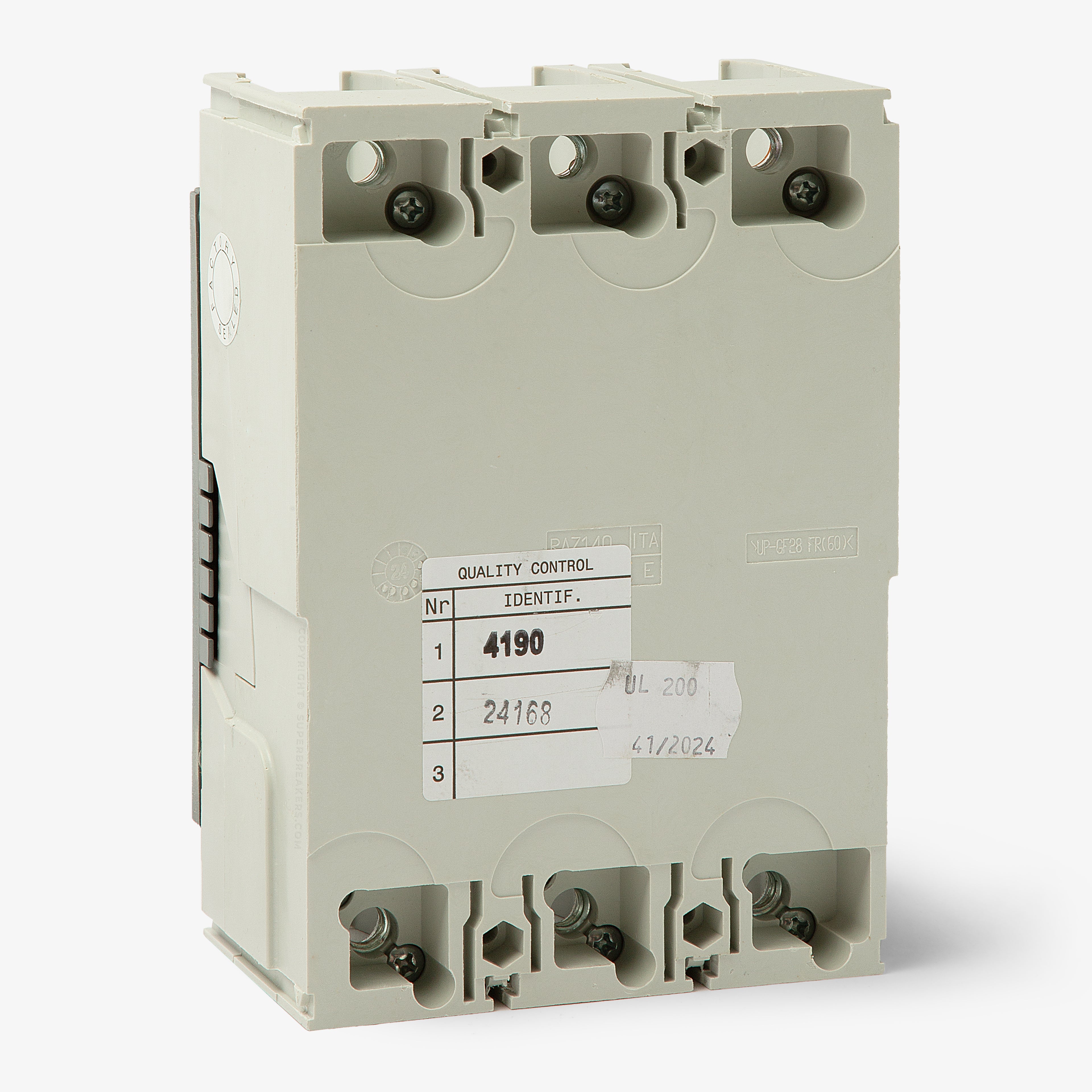

ABB A2N175TW Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
ABB
A2N175TW
Molded Case Circuit Breaker
Brand
ABB
SKU
A2N175TW
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB A2N175TW - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Providing dependable circuit protection, the ABB A2N175TW is a 3-pole MCCB from the Formula A2 frame group. It is equipped with a fixed thermal-magnetic trip unit, ensuring accurate long-time and instantaneous response for demanding environments. This unit-mount MCCB fits ABB ReliaGear RQ panelboards and replaces legacy GE THQD32175 breakers, streamlining panel upgrades. Delivering a 25kAIC rating at 240VAC, the 175A breaker includes front terminals, is HACR rated, and is reverse-feedable.Specifications
| Brand | ABB |
|---|---|
| Series | Formula |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 25kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear RQ Panelboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Rotary Handle, Lug Kits, DIN Rail Adapter |
|---|---|
| Accessories | Front Terminals Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, 50C Ambient Calibration |
Product FAQs
7 answersCan the ABB A2N175TW be used to replace older GE breakers?
Yes, this Formula A2 frame breaker serves as a functional replacement for legacy GE THQD32175 circuit breakers, which helps streamline panel upgrades.
Which panelboards are compatible with the A2N175TW circuit breaker?
This molded case circuit breaker is specifically designed for installation in ABB ReliaGear RQ panelboards.
What mounting options are available for this Formula A2 frame breaker?
The breaker features a unit-mount design that can be installed on a chassis, rear-mounted, or secured to a DIN rail within compatible enclosures.
Is this circuit breaker suitable for heating, air conditioning, and refrigeration applications?
Yes, the ABB A2N175TW is HACR rated, ensuring it meets the specific protection requirements for HVACR equipment.
Can this breaker be reverse-fed?
Yes, this molded case circuit breaker is reverse-feedable, allowing for flexible installation and wiring configurations in your distribution panel.
How does the trip unit on the A2N175TW function?
It is equipped with a fixed thermal-magnetic trip unit that provides long-time and instantaneous (LI) protection, ensuring accurate response to overloads and short circuits without requiring manual curve adjustments.

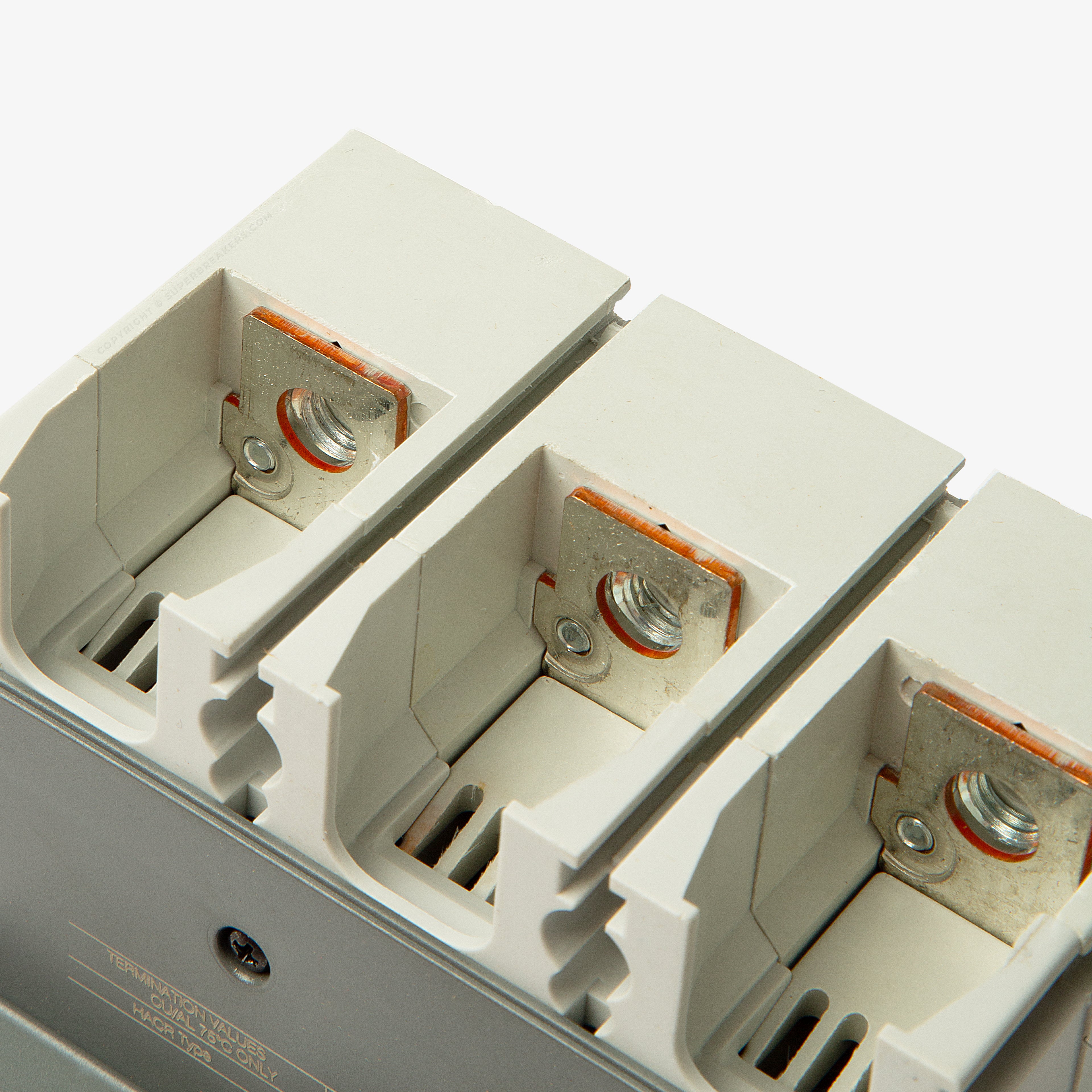

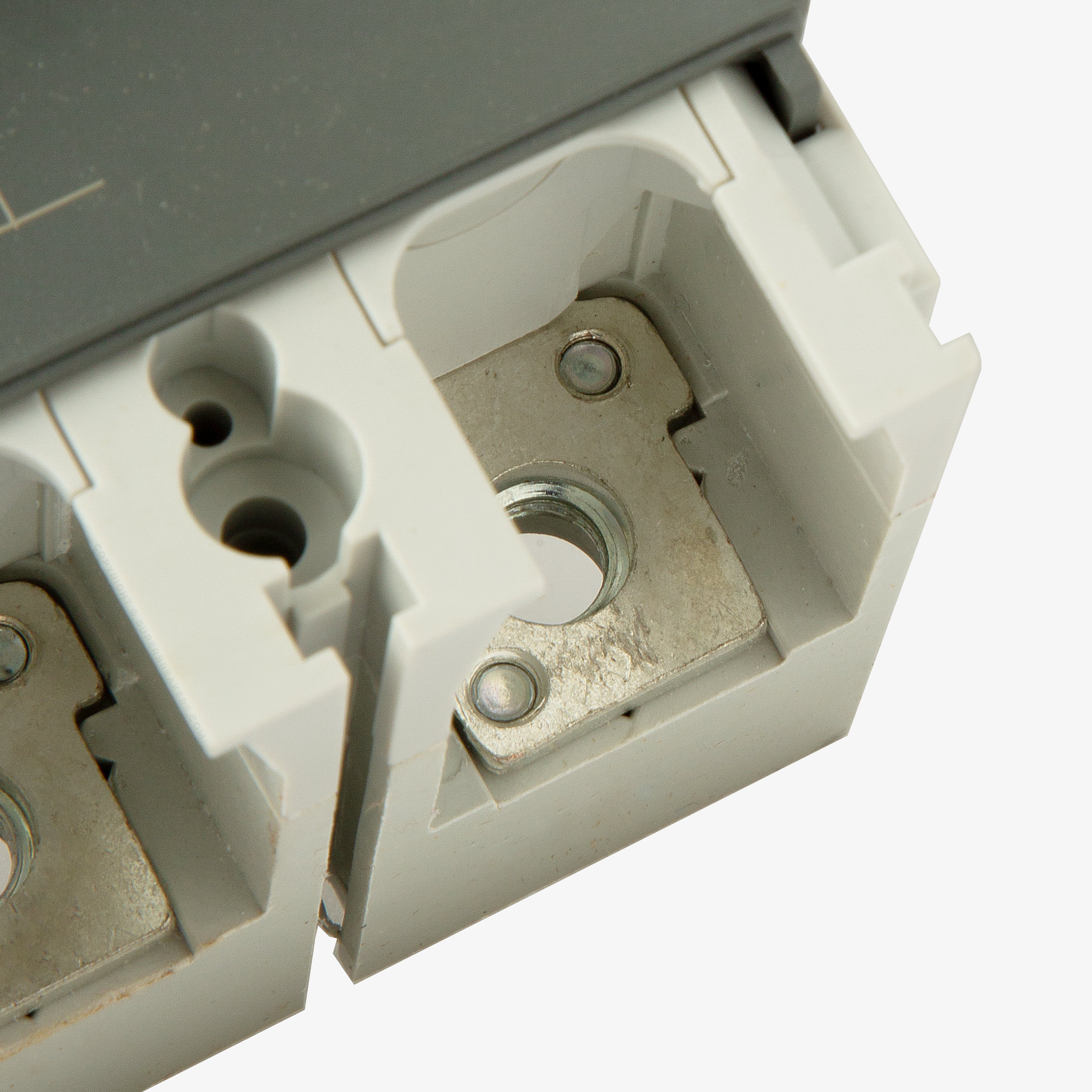

What type of terminal connections does this breaker use?
The A2N175TW includes front-mounted lugs for secure wire terminations.
