ABB XT1HU3050AYD000XXX Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
ABB
XT1HU3050AYD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1HU3050AYD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

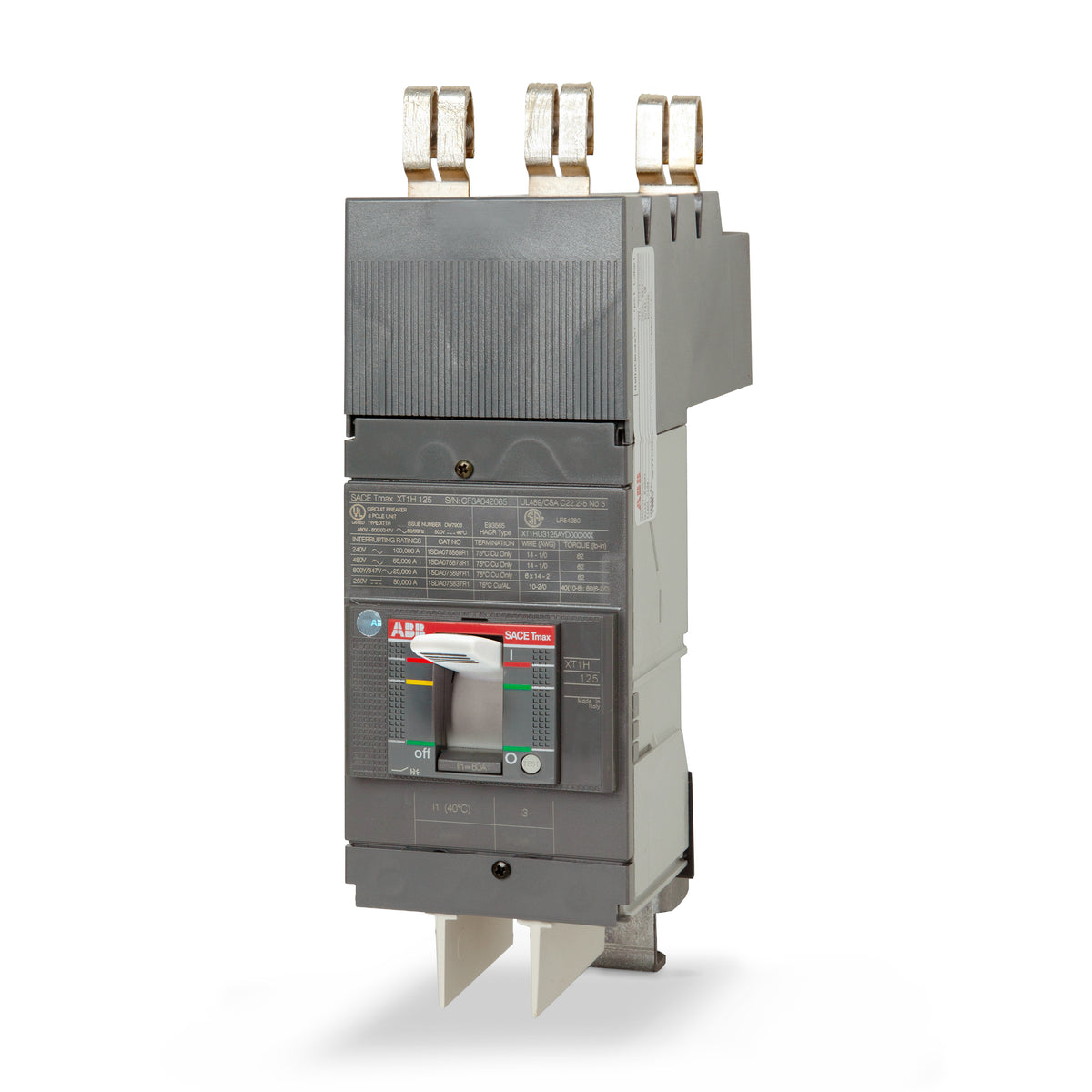

ABB XT1HU3050AYD000XXX - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
45A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the ABB XT1HU3050AYD000XXX is a 50-amp, 3-pole molded case circuit breaker. It utilizes a fixed thermal-magnetic trip mechanism to deliver dependable long-time and instantaneous (LI) overcurrent protection. This breaker mounts into ABB ReliaGear neXT panelboards, SB switchboards, and Tmax XT enclosures. It is also an exact cross-reference replacement for older T1H050TW models. Featuring a 65kAIC rating at 480VAC, it is HACR rated.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear neXT Panelboards, ABB ReliaGear SB Switchboards, ABB SACE Tmax XT Enclosures |
| Wire Gauge | 10 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Connector (1SDA114241R1), Load Side Lugs (1SDA075837R1) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, KEMA, RINA, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Double Insulated, Reverse Feed, High Interrupting Capacity |
Product FAQs
4 answersWhat panels and enclosures are compatible with the XT1HU3050AYD000XXX?
This breaker is designed for use in ABB ReliaGear neXT Panelboards, ABB ReliaGear SB Switchboards, and ABB SACE Tmax XT Enclosures.

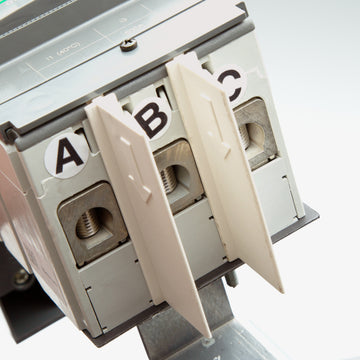

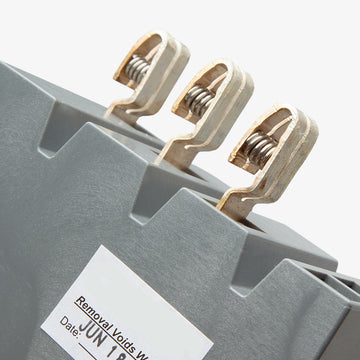

What wire gauge is supported by the lugs on this breaker?
The factory installed terminals accept copper (Cu) or aluminum (Al) wire ranging from 10 AWG to 2/0 AWG.
Are the trip curves on the XT1HU3050AYD000XXX field adjustable?
No, this unit features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) settings. The trip parameters cannot be adjusted.
How does the unit mount installation work for this XT1 breaker?
As a unit mount breaker, it requires direct physical fastening to the panel or backplate using hardware, rather than snapping or plugging directly into a modular busbar.
