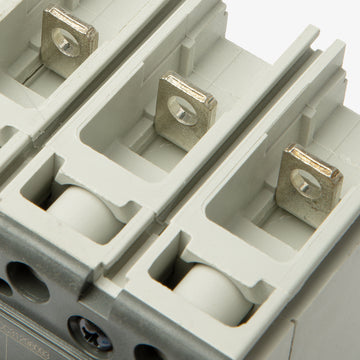

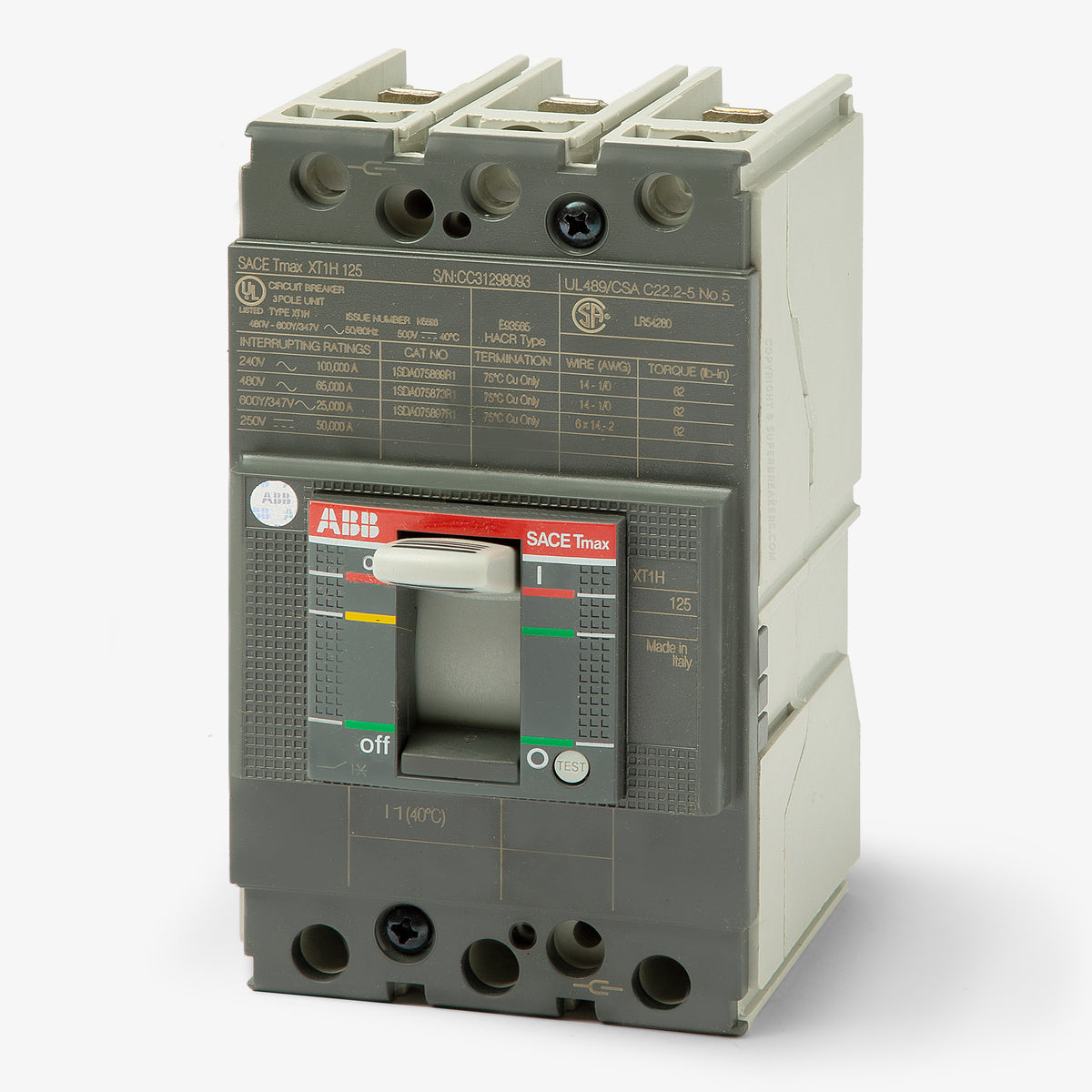

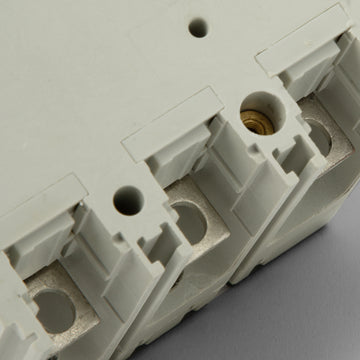

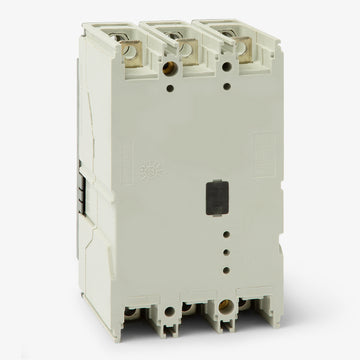

ABB XT1HU3060AFD000XXX Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB
XT1HU3060AFD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1HU3060AFD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1HU3060AFD000XXX - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the ABB XT1HU3060AFD000XXX is a 3-pole, 60A molded case circuit breaker with a fixed thermal-magnetic trip unit. It provides reliable long-time and instantaneous (LI) protection for demanding electrical systems. This unit-mount MCCB installs into ABB ReliaGear neXT panelboards, SB switchboards, and Tmax XT enclosures. It also serves as a replacement for legacy T1H060TW breakers. Rated for 65kAIC at 480V, this current-limiting breaker is HACR rated.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards, Tmax XT Enclosures |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Double Insulated, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards and switchboards are compatible with this breaker?
This unit mount breaker is designed for installation in ABB ReliaGear neXT panelboards, ReliaGear SB switchboards, and Tmax XT enclosures.
Can the XT1HU3060AFD000XXX be reverse fed?
Yes, this molded case circuit breaker is reverse feed capable, allowing for flexible wiring configurations in your electrical system.
What wire types are accepted by the standard lugs on this breaker?
The included lugs are rated for both copper (Cu) and aluminum (Al) conductors, accepting wire sizes from 10 AWG to 2/0 AWG.
Which legacy circuit breaker does this model replace?
This Tmax XT1 breaker serves as a direct replacement for the legacy GE T1H060TW circuit breaker.
What does the H in the XT1H frame designation indicate?
The H stands for High interrupting capacity. This provides robust protection with a 65kAIC rating at 480VAC and 100kAIC at 240VAC.
Is this circuit breaker suitable for DC voltage applications?
Yes, it is rated for use in direct current systems up to 500VDC, providing an interrupting capacity of 50kA.
