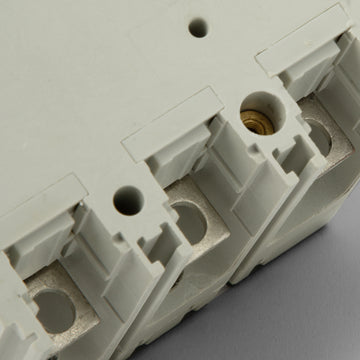

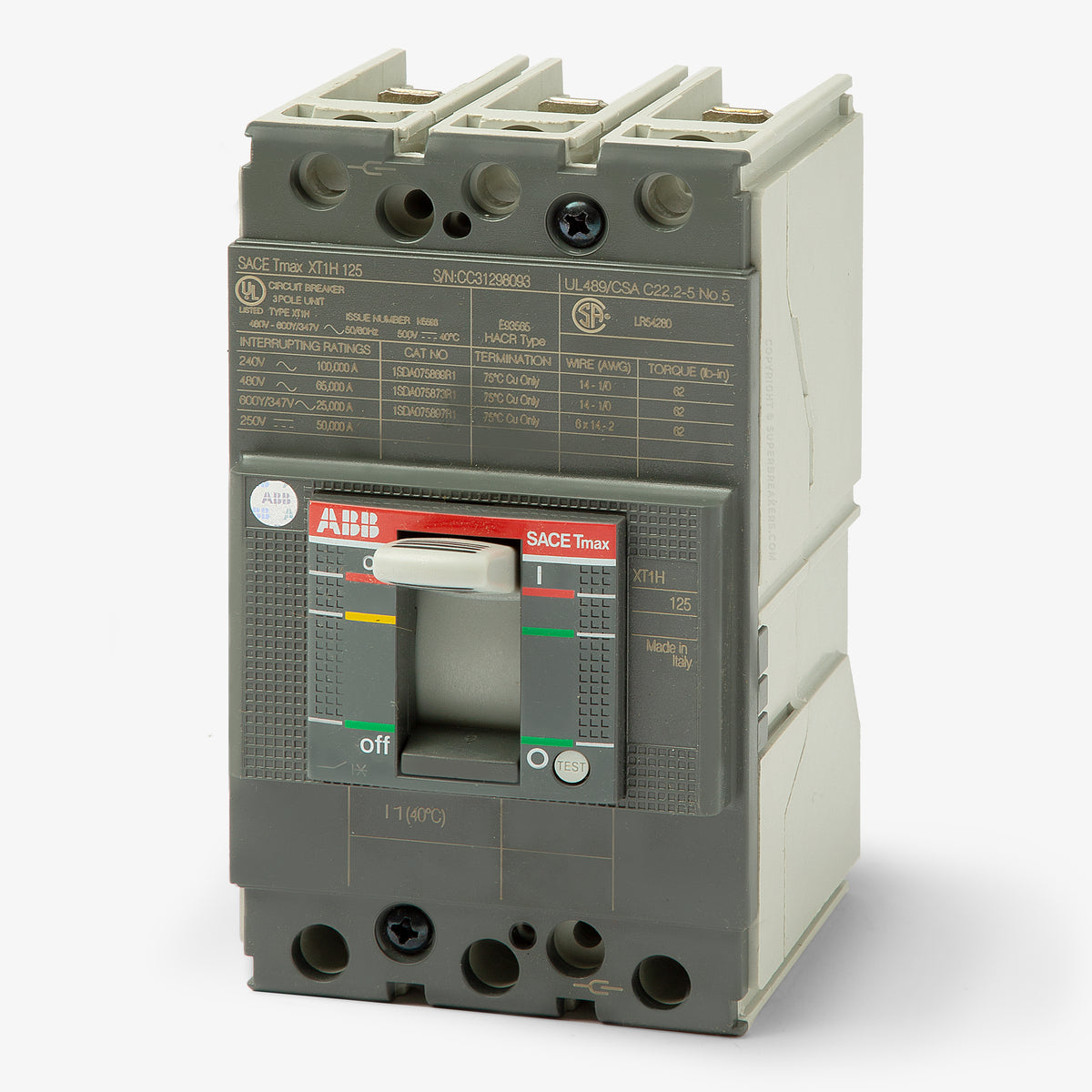

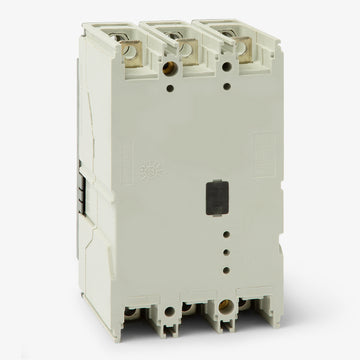

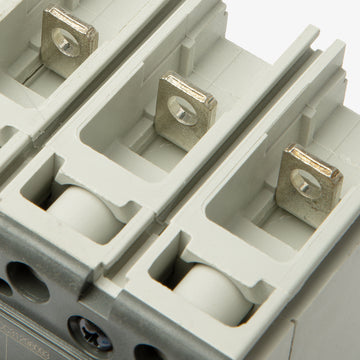

ABB XT1NU3035AFF000XXX Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
ABB
XT1NU3035AFF000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3035AFF000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3035AFF000XXX - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
A reliable solution for industrial environments, the ABB XT1NU3035AFF000XXX is a 3-pole, 35A molded case circuit breaker providing fixed thermal and magnetic trip settings for dependable LI defense. This unit mount breaker is built for ABB ReliaGear neXT panelboards and SB switchboards. It functions as a direct replacement for discontinued T1N035TW models, simplifying maintenance. Boasting a 50kAIC rating at 240V, this XT1 frame breaker is HACR rated and double insulated.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 36kA @ 250VDC, 36kA @ 500VDC |
| Frame Type | XT1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Alarm Switch, Lug Kits |
|---|---|
| Accessories | None (Requires Lugs) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Double Insulated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the XT1NU3035AFF000XXX?
This XT1 frame breaker is designed for use with ABB ReliaGear neXT Panelboards and ReliaGear SB Switchboards.
What do the N and U in the XT1NU3035AFF000XXX part number indicate?
The N designates ABB's Normal interrupting capacity tier for the XT1 frame. The U indicates it is a UL-listed, 80-percent rated breaker, as opposed to a 100-percent rated model.
Can this 35A ABB breaker be used in DC applications?
Yes. In addition to its standard AC ratings, this thermal-magnetic breaker is certified for use in DC systems up to 500VDC.
Can the trip curve be adjusted on the XT1NU3035AFF000XXX?
No, this model uses a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous protection thresholds are factory set and cannot be modified in the field.
How does this XT1 breaker mount inside an enclosure?
It is a unit-mount, bolt-on breaker. It secures directly to the panel backpan or mounting plate rather than plugging into a busbar, and it uses front-facing lugs for wire termination.
