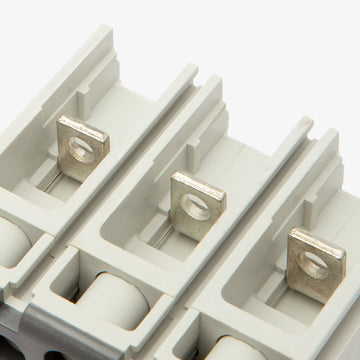

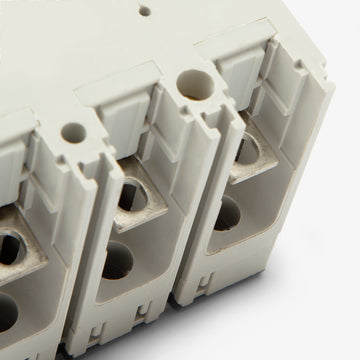

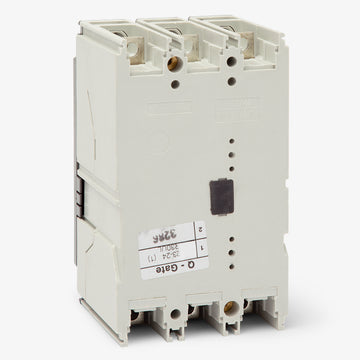

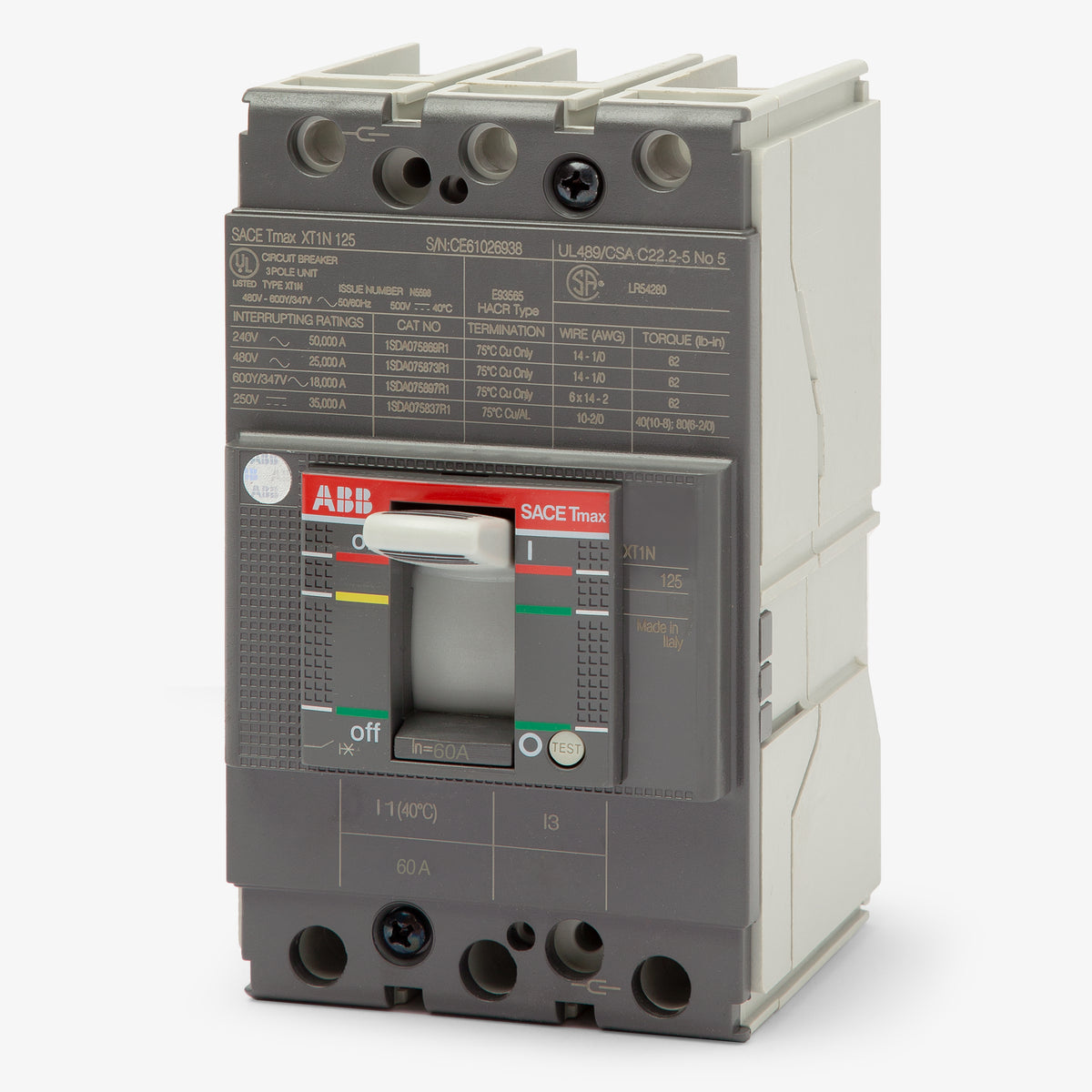

ABB XT1NU3060AFD000XXX Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
ABB
XT1NU3060AFD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3060AFD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3060AFD000XXX - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power distribution, this 60A, 3-pole MCCB belongs to the ABB SACE Tmax XT1 family. It utilizes fixed thermal-magnetic trip units for consistent LI protection. This unit mount breaker installs into ABB ReliaGear neXT panelboards and SB switchboards. It serves as a drop-in replacement for legacy T1N060TW models and includes load side lugs for 10-2/0 AWG wire. Rated at 25kAIC at 480VAC, the device is HACR rated, double insulated, and supports reverse feeding.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 36kA @ 250VDC, 36kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB ReliaGear neXT Panelboards, ReliaGear SB Switchboards |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (Kit FC CuAl 10-2/0 AWG) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, KEMA, RINA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Double Insulated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the XT1NU3060AFD000XXX breaker?
This unit mount breaker is designed for use with ABB ReliaGear neXT Panelboards and ReliaGear SB Switchboards.
What wire gauge range do the factory lugs on this XT1 breaker accept?
The included lugs accommodate wire sizes from 10 AWG up to 2/0 AWG. Ensure proper torque specifications are followed during installation.
Is the XT1NU3060AFD000XXX rated for direct current (DC) applications?
Yes, this breaker supports DC systems with an interrupting capacity of 36kA at both 250VDC and 500VDC.
Does this 60A breaker feature adjustable trip settings?
No, it utilizes a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection.
What breaker family does the XT1NU3060AFD000XXX belong to?
It is part of the ABB SACE Tmax XT molded case circuit breaker family, specifically utilizing the XT1 frame size.
What is the maximum short circuit interrupting rating for this breaker at 480VAC?
When applied in a 480VAC system, this breaker provides a maximum interrupting rating of 25kA.
