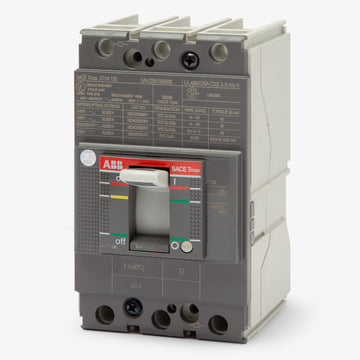

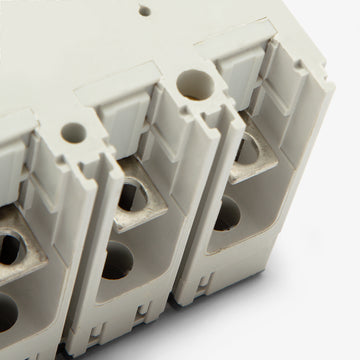

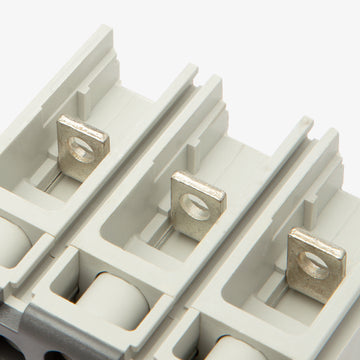

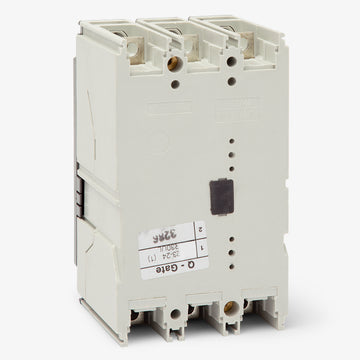

ABB XT1NU3080AFD000XXX Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
ABB
XT1NU3080AFD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3080AFD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3080AFD000XXX - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the ABB XT1NU3080AFD000XXX is a 3-pole molded case circuit breaker. It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions. This unit-mount breaker installs into ABB SACE Tmax XT panelboards and enclosures, serving as a replacement for legacy Tmax T1 series breakers. Rated for 25kAIC at 480VAC, this HACR-rated MCCB supports reverse feed applications.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 36kA @ 250VDC, 36kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB SACE Tmax XT Panelboards, Switchboards, Enclosures |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Double Insulated |
Product FAQs
5 answersWhat equipment is the XT1NU3080AFD000XXX designed to fit?
This unit mount breaker is engineered for installation in ABB SACE Tmax XT panelboards, switchboards, and enclosures.
Can the XT1NU3080AFD000XXX be used to replace older ABB breakers?
Yes, the SACE Tmax XT1 frame serves as a replacement for legacy ABB Tmax T1 series circuit breakers.
Is this 80A XT1 breaker suitable for HVAC equipment and reverse feed applications?
Yes, this molded case circuit breaker is HACR rated for heating, air conditioning, and refrigeration applications, and its design supports reverse feed wiring.
What wire size range is supported by the factory lugs on this breaker?
The included lugs accept wire gauges ranging from 10 AWG to 2/0 AWG.
Can the thermal or magnetic trip thresholds be adjusted in the field?
No, this breaker is equipped with a fixed thermal and fixed magnetic (LI) trip unit, meaning the long-time and instantaneous protection settings are non-adjustable.
