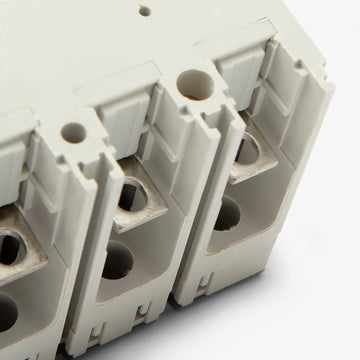

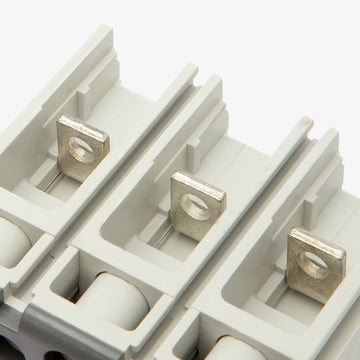

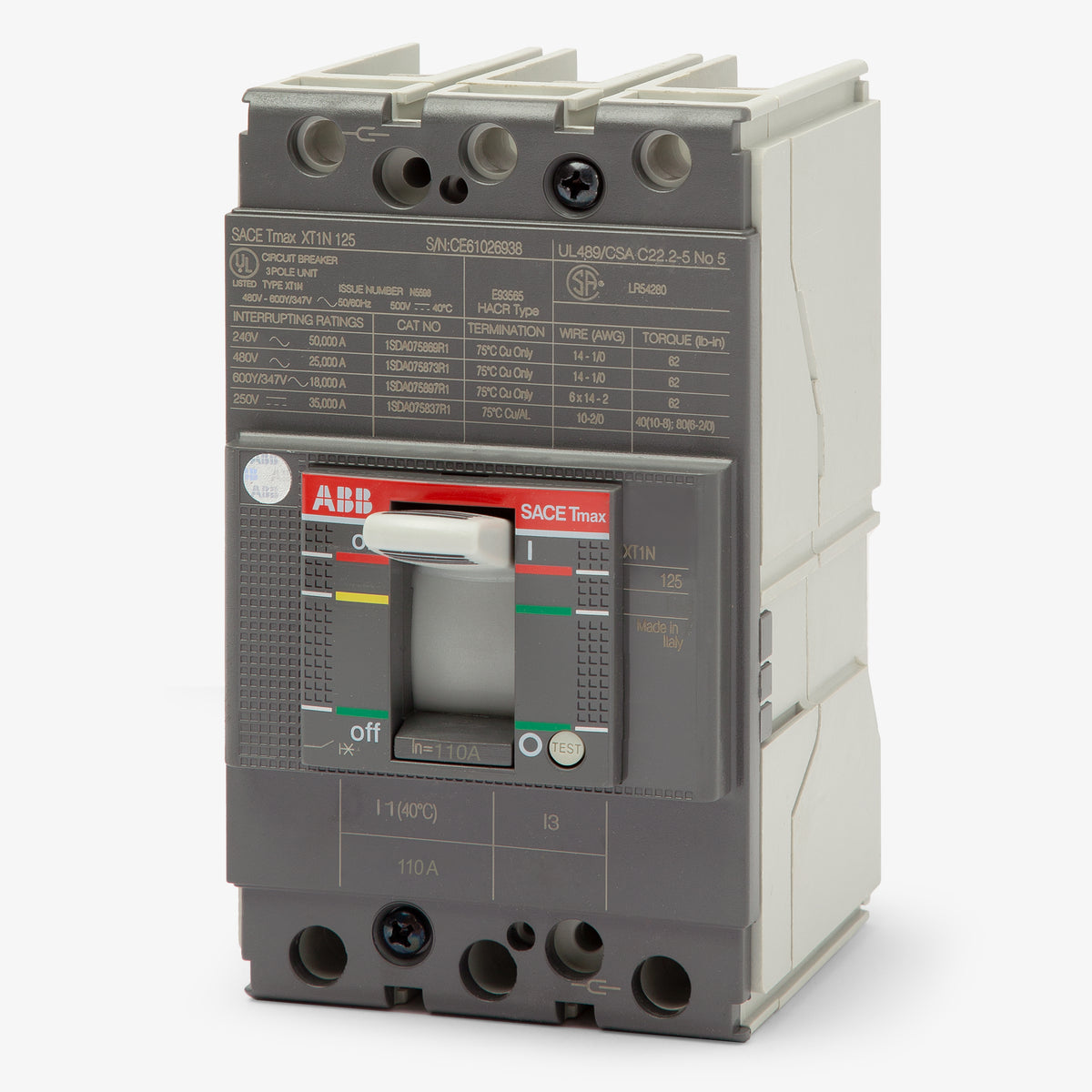

ABB XT1NU3110AFD000XXX Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
ABB
XT1NU3110AFD000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT1NU3110AFD000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT1NU3110AFD000XXX - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the ABB XT1NU3110AFD000XXX is a 3-pole molded case circuit breaker from the SACE Tmax XT family. It delivers reliable power distribution with a 110A rating and current-limiting capabilities. This unit mount MCCB installs into ABB SACE Tmax XT panelboards and enclosures. It serves as a drop-in replacement for legacy Tmax T1 series breakers. Rated 25kAIC at 480VAC, it features a fixed thermal magnetic trip unit and includes line and load lugs.Specifications
| Brand | ABB |
|---|---|
| Series | XT1 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 35kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ABB SACE Tmax XT Panelboards, Switchboards, Enclosures |
| Wire Gauge | 10 AWG - 2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware, Phase Barriers |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Double Insulated |
Product FAQs
7 answersWhat panelboards and enclosures are compatible with the ABB XT1NU3110AFD000XXX?
This unit mount circuit breaker is designed for installation in ABB SACE Tmax XT panelboards, switchboards, and compatible enclosures.
Can the XT1NU3110AFD000XXX replace older ABB circuit breakers?
Yes, this SACE Tmax XT1 breaker serves as a direct drop-in replacement for legacy ABB Tmax T1 series circuit breakers with matching specifications.
What wire sizes are accepted by the lugs on this XT1 breaker?
The included line and load lugs accept wire sizes ranging from 10 AWG to 2/0 AWG.
What type of trip unit is equipped on the XT1NU3110AFD000XXX?
It features a thermal magnetic trip unit providing Long-Time and Instantaneous (LI) protection. Both the thermal and magnetic trip thresholds are fixed and non-adjustable.
How does this breaker mount into the electrical panel?
The XT1NU3110AFD000XXX is a unit mount circuit breaker that secures directly to the panel chassis using mounting hardware, rather than plugging onto a busbar.
Is this breaker suitable for direct current (DC) applications?
Yes, it is rated for use in DC systems up to 250 VDC, providing an interrupting capacity of 35kA at that voltage.
Does this breaker provide ground fault protection?
No, this model features a standard thermal magnetic trip unit with Long-Time and Instantaneous (LI) functions only. It does not include integrated ground fault equipment protection.
