Airpax / Sensata Technologies 219-3-7495-2 Airpax - 30A 3 Pole Supplementary Protector
Quantity
Core Specs
See full specs

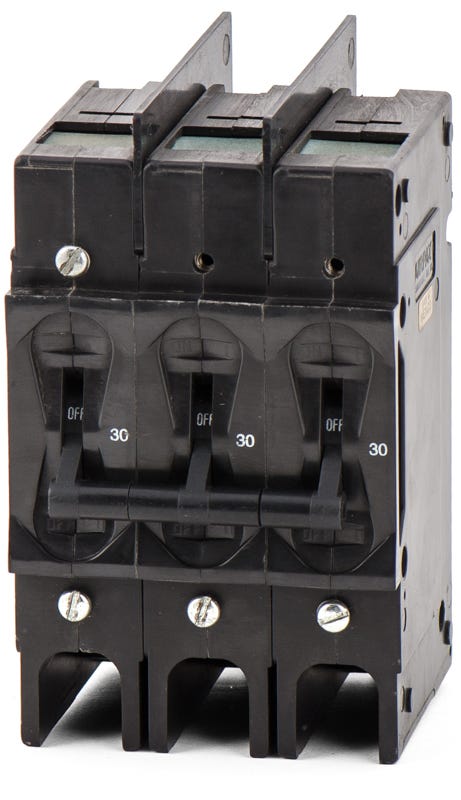

Airpax 219-3-7495-2 - 30A 3 Pole Supplementary Protector
Re-Certified
Quantity
Description
Part of the 219 series by Airpax, this 3-pole supplementary protector is built for demanding industrial and motor control applications. It installs seamlessly into industrial control panels and motor control centers using a standard panel mount configuration. Featuring hydraulic-magnetic trip technology and a trip-free mechanism, the 30A device ensures consistent performance regardless of ambient temperature variations, while carrying UL 508 recognition as a manual motor controller.Specifications
| Brand | Airpax / Sensata Technologies |
|---|---|
| Part Number | 219-3-7495-2-R |
| Series | NONE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 5kA @ 240VAC, 5kA @ 480Y/277VAC, 1kA @ 480VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Industrial Control Panels, Motor Control Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Hydraulic Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 14, UL 508 |
| Approval | CSA, UL |
| Temp Rating | -40C to 85C |
| Construction Features | Trip-Free Mechanism, Manual Motor Controller |
