Airpax / Sensata Technologies 219-3-7495-4 Airpax - 40A 3 Pole Supplementary Protector
Quantity
Core Specs
See full specs

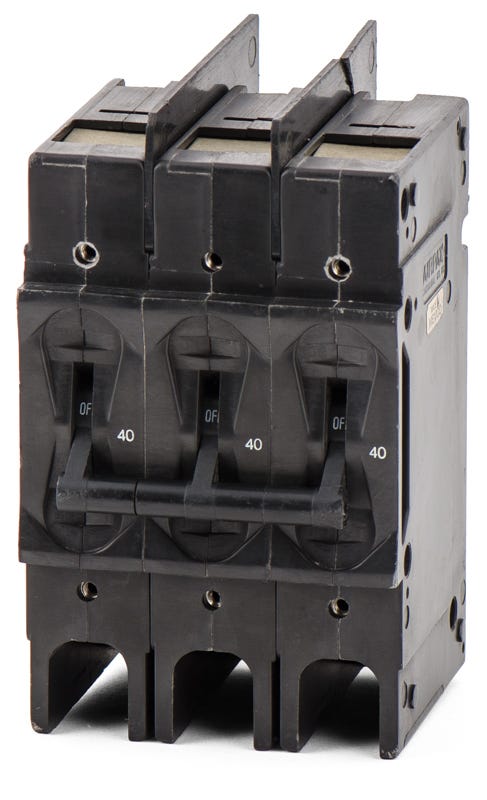

Airpax 219-3-7495-4 - 40A 3 Pole Supplementary Protector
Re-Certified
Quantity
Description
Built for robust motor control, the 40A Airpax supplementary protector handles high-inrush loads without nuisance tripping. The 3-pole unit is designed for panel-mount integration within industrial control panels and motor control centers. Utilizing advanced hydraulic-magnetic technology with an inertial delay, it maintains accurate trip characteristics independent of ambient temperature changes, serving as a reliable UL 508 recognized manual motor controller.Specifications
| Brand | Airpax / Sensata Technologies |
|---|---|
| Part Number | 219-3-7495-4-R |
| Series | NONE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 480Y/277VAC, 1kA @ 480VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Industrial Control Panels, Motor Control Centers |
| Wire Gauge | 10-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Hydraulic Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 14, UL 508 |
| Approval | CSA, UL |
| Temp Rating | -40C to 85C |
| Construction Features | Trip-Free Mechanism, Manual Motor Controller |
