Allen Bradley 1492-CB2G020 Supplementary Protector
Quantity
Core Specs
See full specs

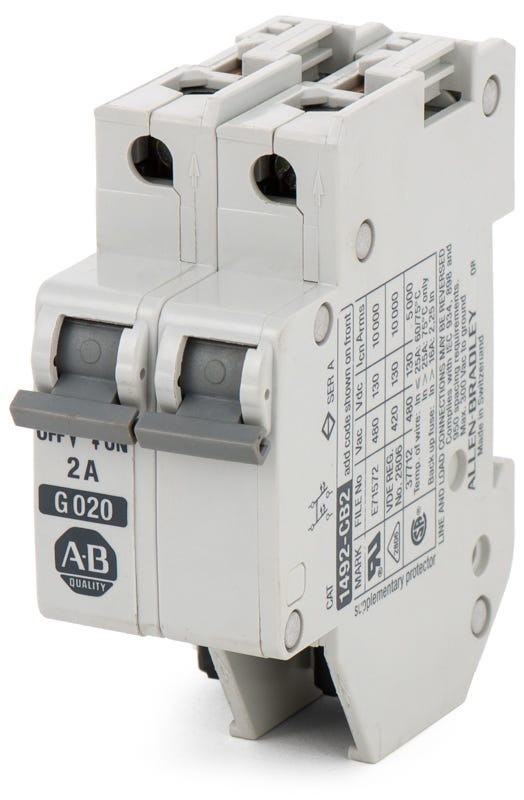

Allen Bradley 1492-CB2G020 - 2A 2 Pole Supplementary Protector
New
Quantity
Description
The 1492-CB2G020 is part of Allen Bradley's legacy line of energy-limiting supplementary protectors, designed to safeguard standard duty loads like relay coils and control circuits. Rated for 2A at up to 480Y/277VAC, it delivers a 10kA interrupting capacity at 240VAC. This 2-pole unit easily snaps onto standard DIN rails inside industrial control panels, offering finger-safe (IP20) terminals and a trip-free mechanism. For modern upgrades, this model is officially replaced by the 1492-SPM2C020.Specifications
| Brand | Allen Bradley |
|---|---|
| Part Number | 1492-CB2G020 |
| Series | 1492 |
| Amperage | 2A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 65VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 480Y/277VAC, 2kA @ 65VDC |
| Frame Type | 1492 |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 16-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 16 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | G |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Signal Contact |
|---|---|
| Standards | CSA C22.2 No. 14, CSA C22.2 No. 235, IEC 60934, UL 1077, UL 508 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -20C to 60C |
| Construction Features | Energy Limiting, Trip-Free Mechanism, Finger Safe (IP20) |
