Siemens B120H00S01 /ITE Circuit Breaker
Quantity
Core Specs
See full specs

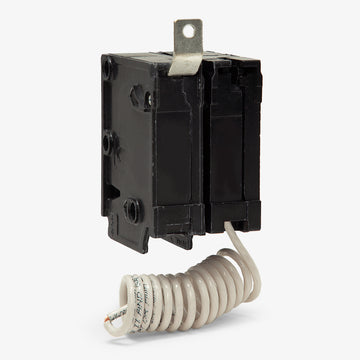

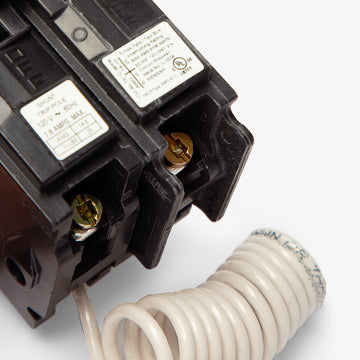

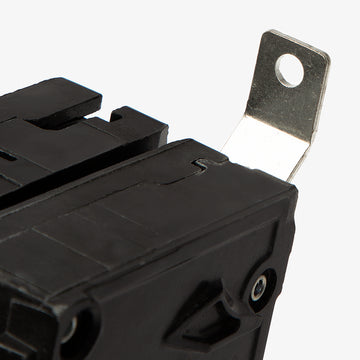

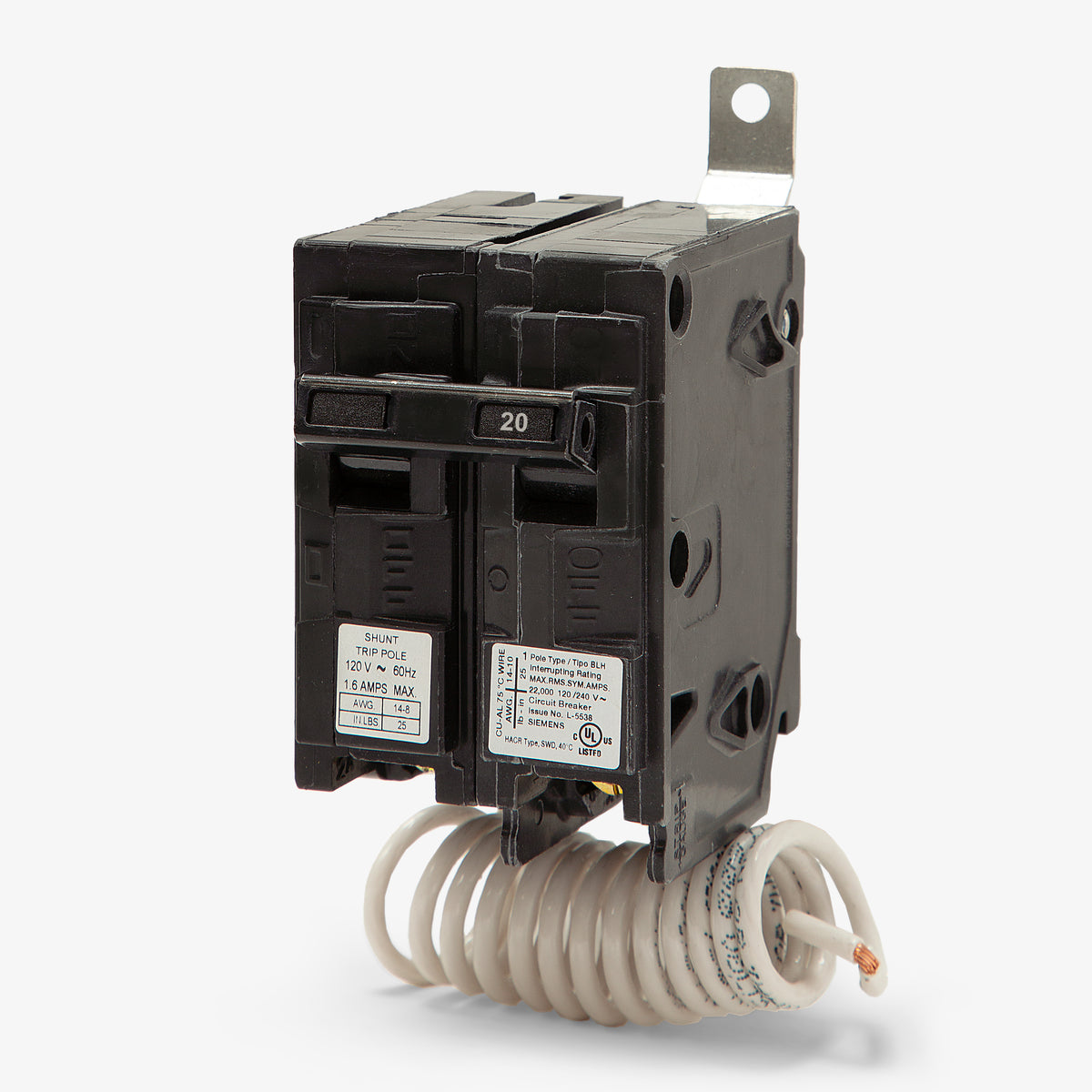

Siemens/ITE B120H00S01 Circuit Breaker
New
Quantity
Description
Siemens B120H00S01 1 Pole Circuit Breaker
The Siemens B120H00S01 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC at 120VAC. The B120H00S01 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Amperage | 20 A |
|---|---|
| Voltage | 120/240VAC |
| Series | BL |
| Poles | 1 |
| Phase | 1 |
|---|---|
| Interrupting Rating | 22kAIC at 120VAC |
| Mounting Type | Bolt-On |
|---|---|
| Frame Type | B |
| Connection Type | Bolt-On |
| Terminal Connection | Load Side Lug |
| Length (in) | 5.5 |
| Width (in) | 4.4 |
| Height (in) | 3.8 |
| For Use With | P1 Panelboards |
| Max Wire Size | 10 AWG |
| Min Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Protection | Thermal Magnetic |
|---|---|
| Functions | LI - Long-Time and Instantaneous Trip |
| Circuit Breaker Type | Shunt Trip |
| Actuator Type | Toggle |
| Approval | UL |
|---|---|
| Temperature Rating | 40 °C |
| Breaker Feature | Shunt Trip 120V |
| Brand | Siemens |
|---|---|
| MPN | B120H00S01 |
