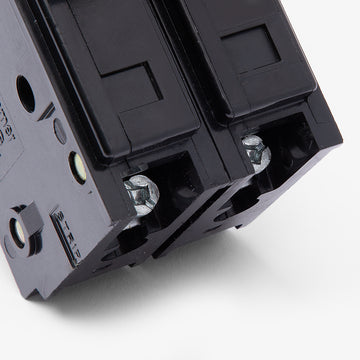

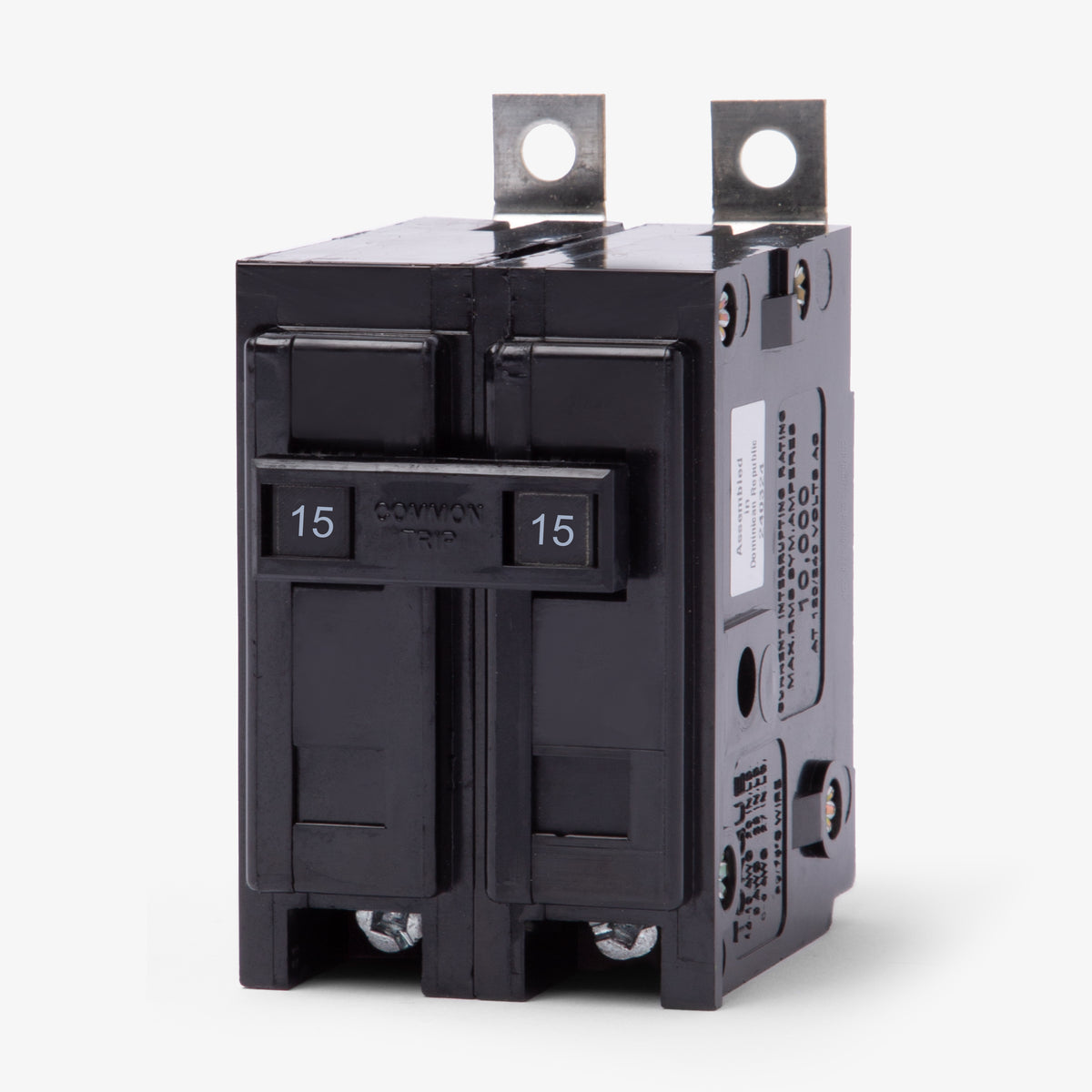

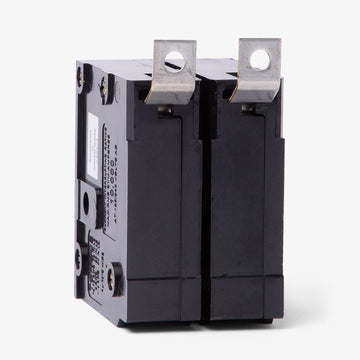

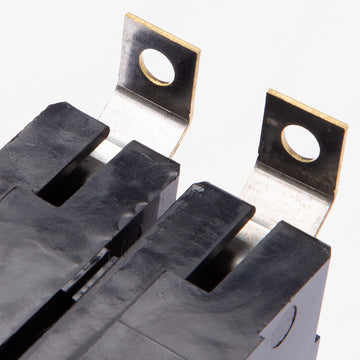

Eaton / Cutler-Hammer BAB2015 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2015
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB2015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2015 |
| Series | BAB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, SWD, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB2015 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2015-R |
| Series | BAB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, SWD, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Designed to safeguard branch circuits, the Eaton BAB2015 is a 15A, two-pole miniature breaker. It utilizes fixed thermal and magnetic trip elements to quickly clear electrical faults across a variety of commercial and industrial environments. The unit installs into Eaton Pow-R-Line, Bryant, and Westinghouse panelboards. Its bolt-on design ensures a highly reliable connection, easily replacing older QNBL breakers. It features a 10 kAIC rating and carries both SWD and HACR certifications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2015 |
| Series | BAB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, SWD, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhat panelboards accept the BAB2015 circuit breaker?
The Eaton BAB2015 is designed for commercial and industrial applications. It installs directly into Eaton Pow-R-Line panelboards, as well as legacy Westinghouse, Bryant, and Challenger panels that utilize a BAB frame bolt-on footprint.
Can I use the BAB2015 to replace an older Westinghouse BAB breaker?
Yes. Eaton acquired the Westinghouse distribution equipment division and continues to manufacture these breakers. The Eaton BAB2015 is the exact, direct replacement for vintage Westinghouse, Bryant, and Challenger QNBL or BAB 15A 2-pole breakers.
Can the BAB2015 be used in DC voltage applications?
Yes. While commonly used for 120/240V AC systems, the BAB2015 is also rated for direct current applications. It provides a 5kA interrupting capacity at 24V, 48V, 62.5V, and 80V DC.
What is the difference between Eaton BAB and QBHW circuit breakers?
Both are bolt-on miniature circuit breakers designed for Eaton Pow-R-Line panels, but they feature different interrupting capacities. The BAB2015 is rated for 10kAIC at 240V, while the equivalent QBHW breaker is rated for 22kAIC for systems requiring higher fault current protection.
Is the BAB2015 HACR rated for air conditioning units?
Yes. The BAB2015 carries an HACR certification, meaning it has been tested and approved for use with heating, air conditioning, and refrigeration equipment requiring this specific safety rating.
Can I install the BAB2015 in a standard residential load center?
No. The BAB2015 features a bolt-on connection designed for commercial and industrial panelboards. It will not fit in standard residential plug-on load centers, which typically require BR or CH style breakers.
What does the LI trip function code on the BAB2015 signify?
The LI code indicates that the breaker is equipped with Long-Time and Instantaneous trip functions. The long-time thermal mechanism protects against gradual, sustained overloads, while the instantaneous magnetic mechanism clears high-current short circuits quickly.
