Eaton / Cutler-Hammer BAB2025 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2025
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

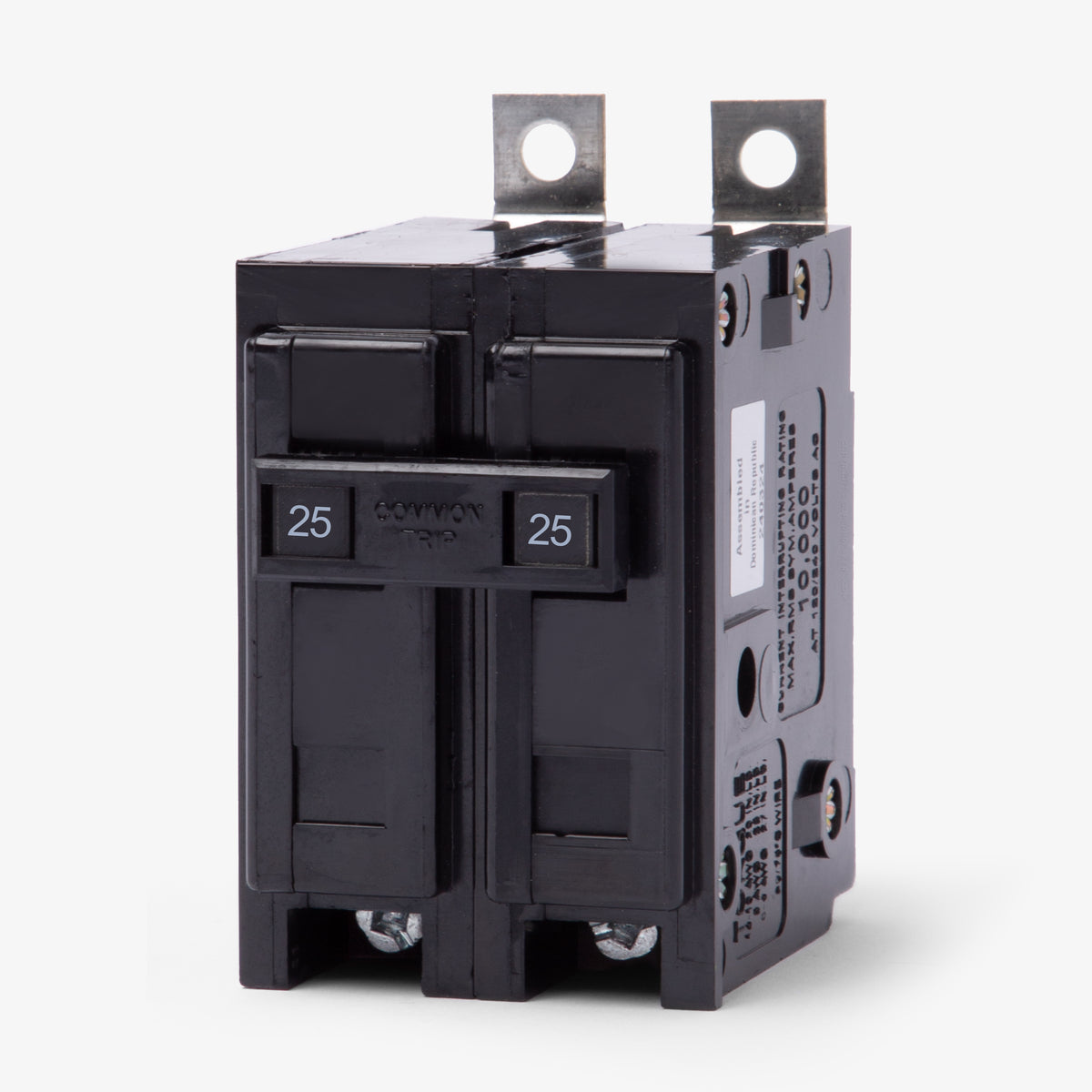

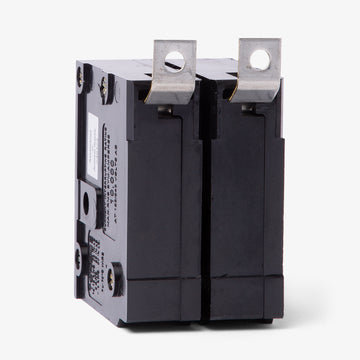

Eaton / Cutler-Hammer BAB2025 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the BAB2025 is a 2-pole, 25A miniature breaker from Eaton's Quicklag family. It delivers dependable protection for 120/240V systems. The bolt-on design installs securely into Eaton Pow-R-Line and legacy Westinghouse panelboards. It also serves as a replacement for older QNBL2025 and QB2025 models. Featuring a 10kAIC rating, this HACR-approved unit is suitable for HVAC circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2025 |
| Series | BAB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards, Challenger Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat panelboards are compatible with the BAB2025?
The Eaton BAB2025 is a bolt-on circuit breaker designed for use in Eaton Pow-R-Line panelboards. It is also compatible with older Westinghouse, Cutler-Hammer, Bryant, and Challenger panelboards that accept bolt-on breakers.
Can the BAB2025 replace older Westinghouse or Bryant breakers?
Yes, the Eaton BAB series is the direct replacement for older Westinghouse, Bryant, Challenger, and Cutler-Hammer Quicklag bolt-on circuit breakers of the same frame size and configuration.
Can the BAB2025 be used in DC voltage applications?
Yes, while primarily rated for 120/240VAC at 10kAIC, the BAB2025 is also rated for DC applications. It carries a 5kAIC interrupting rating at 24VDC, 48VDC, 62.5VDC, and 80VDC.

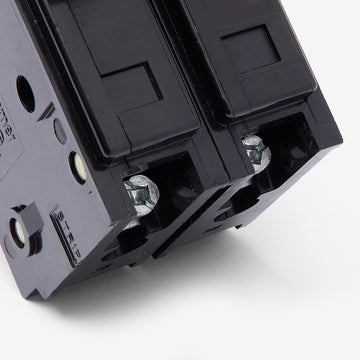

What wire sizes and materials are permitted for the BAB2025 terminals?
The BAB2025 features box lug terminals that accept 14 AWG to 4 AWG wire. The terminals are rated for use with both copper (Cu) and aluminum (Al) conductors.

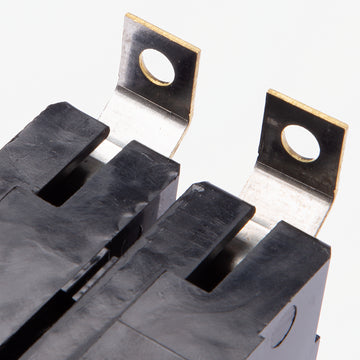

How does the BAB2025 mount to the panelboard?
The BAB2025 is a bolt-on miniature circuit breaker. It secures directly to the panelboard bus with a bolted connection, providing a durable and secure mechanical and electrical termination.
Does this breaker feature an adjustable trip setting?
No, the BAB2025 utilizes fixed thermal and fixed magnetic trip settings. It includes both long-time and instantaneous trip functions that cannot be adjusted in the field.
