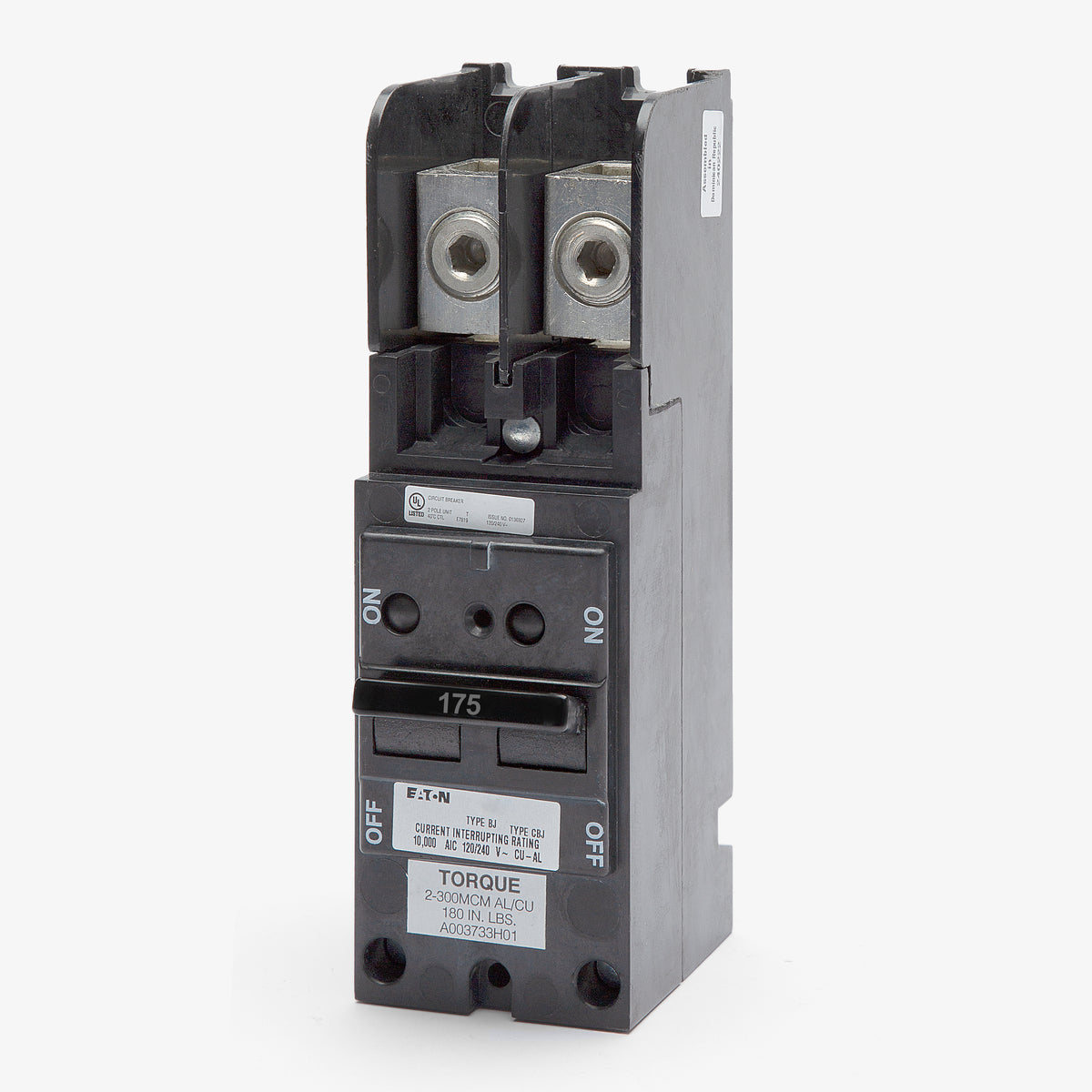

Eaton / Cutler-Hammer BJ2175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BJ2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2175 |
| Series | BJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|

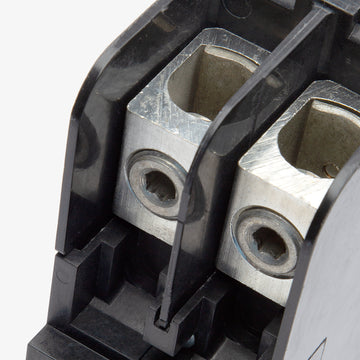

| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Main Breaker |
Quantity
Eaton / Cutler-Hammer BJ2175 - 175A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2175-R |
| Series | BJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Main Breaker |
Description
Serving as a reliable main disconnect, the Eaton BJ2175 is a 175-amp breaker for residential and commercial systems. It utilizes fixed thermal and magnetic trip mechanisms to ensure consistent protection. This plug-on component is engineered for Eaton Type BR load centers and older Westinghouse boxes. Installation requires four one-inch spaces, accommodating #2 AWG to 300 kcmil conductors. Rated for 10kAIC at 120/240V, this HACR-approved breaker delivers dependable performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2175 |
| Series | BJ |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Main Breaker |
Product FAQs
5 answersHow many panel spaces does the BJ2175 require?
This breaker requires four 1-inch spaces total. It occupies two spaces on the left side and two spaces on the right side of the load center bus.
What is the difference between a standard BR breaker and a BJ breaker?
Standard two-pole BR breakers occupy two panel spaces, while two-pole BJ breakers are wider and require four spaces across the panel bus. BJ frames are typically used for higher amperage applications from 150A to 225A.
Do I need a hold-down kit when using the BJ2175 as a main breaker?
Yes. If you are installing this breaker as a back-fed main in a Main Lug Only (MLO) load center, safety codes require a hold-down screw kit, such as the Eaton BJHDS, to secure the breaker to the panel bus.
Can I use this breaker to replace older Bryant or Westinghouse models?
Yes. Eaton acquired the Cutler-Hammer, Bryant, and Westinghouse breaker lines. The BJ2175 is the direct functional replacement for legacy Bryant and Westinghouse BJ2175 breakers.
What size load center is required for this breaker?
The BJ2175 must be installed in an Eaton BR or legacy Westinghouse or Bryant load center rated for at least 150 amps.
