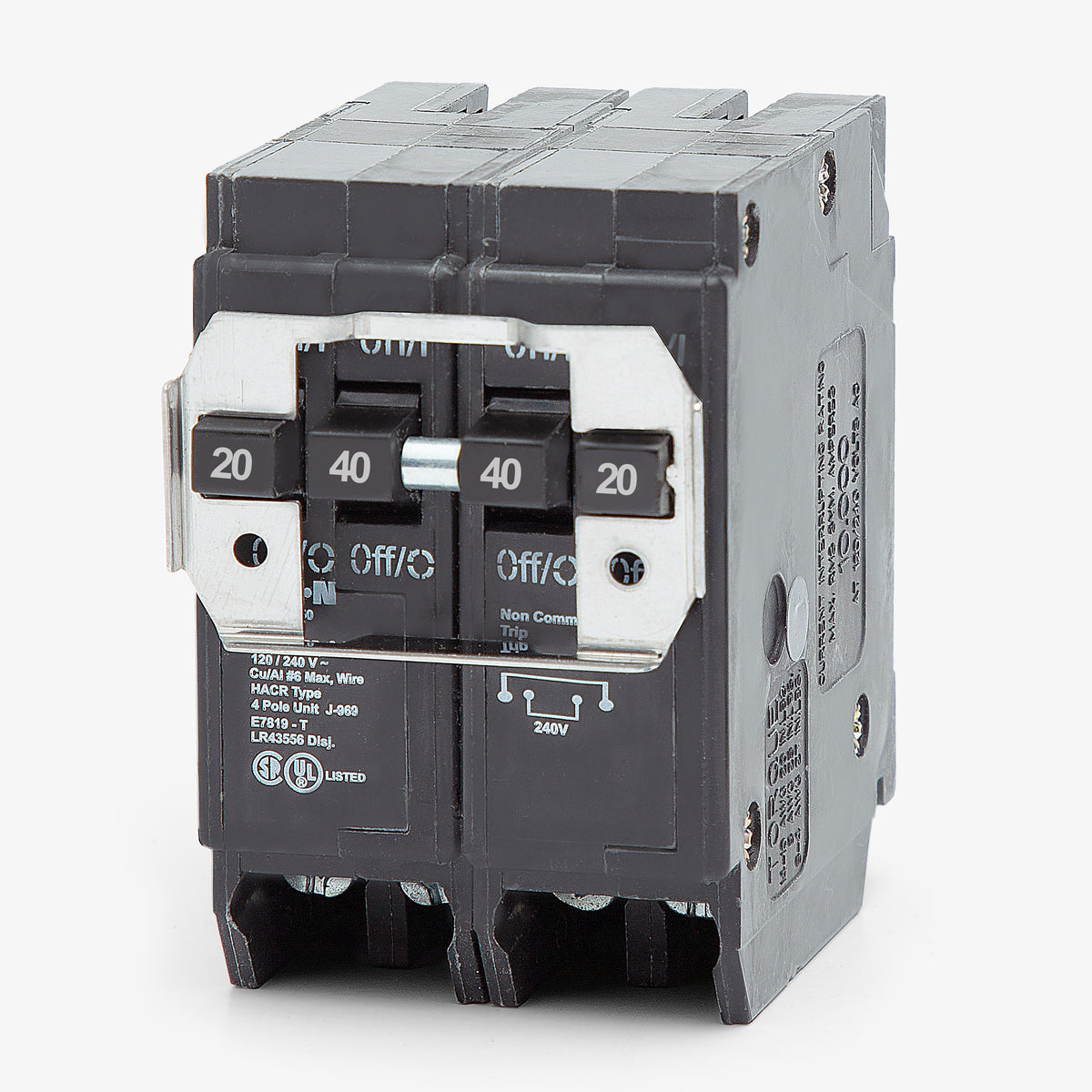

Eaton / Cutler-Hammer BQ220240 20/40A Quadplex Miniature Circuit Breaker
- 20/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ220240
20/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ220240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ220240 - 20/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
15/40A Quadplex Miniature Circuit Breaker
30/40A Quadplex Miniature Circuit Breaker
40/20A Quadplex Miniature Circuit Breaker
Description
Engineered for space-saving efficiency, the Eaton BQ220240 quadplex miniature circuit breaker delivers four poles of protection in a compact form factor. It combines a 2-pole 40A center circuit and a 2-pole 20A outer circuit for residential setups. This plug-on breaker installs into standard Eaton Type BR load centers, requiring only two 1-inch panel spaces. Rated for 10 kAIC at 120/240VAC, it features thermal-magnetic protection and an independent trip mechanism for precise fault isolation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220240 |
| Series | BQ |
| Amperage | 20/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Independent Trip, Rejection Tab |
Product FAQs
6 answersWhich load centers are compatible with the BQ220240 quadplex breaker?
This breaker is designed for Eaton, Cutler-Hammer, and legacy Bryant Type BR load centers. It requires two 1-inch panel spaces with notched bus stabs to accommodate its CTL rejection tab.
How are the 20A and 40A circuits configured on this quadplex breaker?
The BQ220240 provides a 20A two-pole circuit on the outer poles and a 40A two-pole circuit on the center poles. This configuration allows you to feed two separate 240V loads while only occupying two standard 1-inch panel spaces.
Can the BQ220240 be installed in any position within a Type BR panel?
No. Because it is a Circuit Total Limiting (CTL) breaker, it features a physical rejection tab. It can only be installed in panel slots that have notched bus stabs specifically designed to accept tandem or quadplex breakers.
What is the difference between Eaton BQ and BQC quadplex breakers?
BQ series breakers allow for independent tripping of each circuit. BQC series breakers have an internal common trip element that trips all circuits supplied by the breaker if any single circuit experiences a fault.
Is the BQ220240 a suitable replacement for legacy Westinghouse or Challenger breakers?
Yes, Eaton Type BR breakers are the UL listed genuine replacements for legacy Westinghouse, Challenger, and Bryant load centers that accept Type BR or BRD breakers.
Is this breaker suitable for HVAC applications?
Yes, the BQ220240 carries a HACR rating, making it approved for use with heating, air conditioning, and refrigeration equipment.
