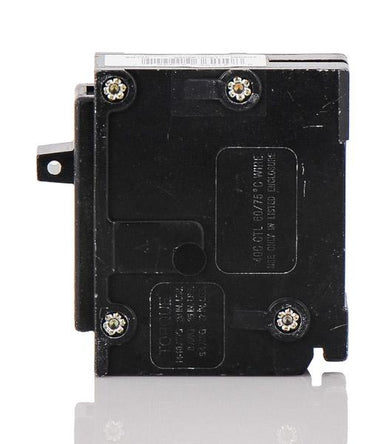

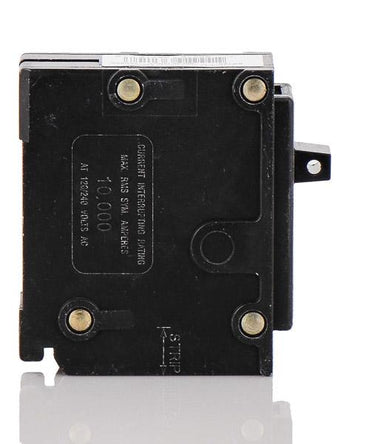

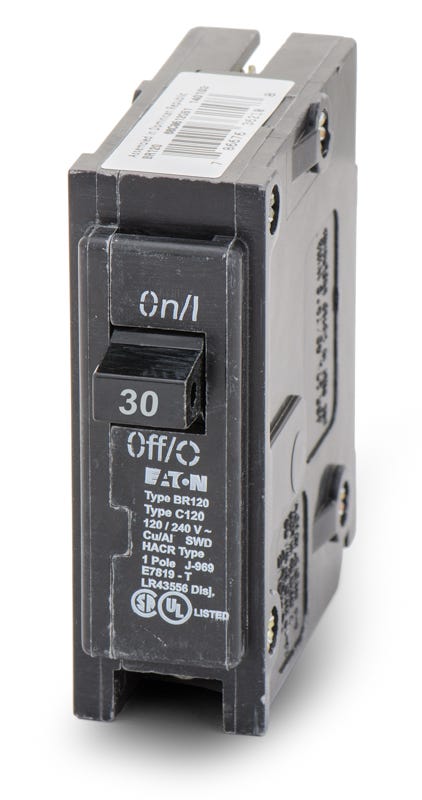

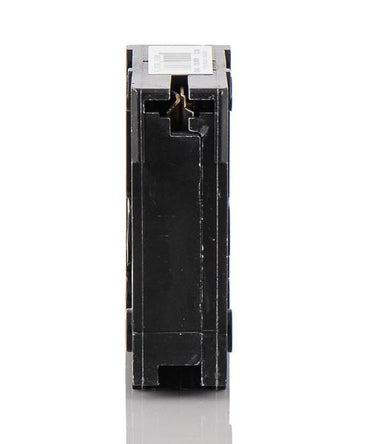

Eaton / Cutler-Hammer BR130 Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR130
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR130 |
| Series | BR |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C-375, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR130 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR130-R |
| Series | BR |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C-375, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated |
Similar Items
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Operating as a crucial safety device for residential systems, this 30-amp single-pole breaker guards against overloads and short circuits. The thermal-magnetic design ensures consistent performance for 120V loads. Engineered for seamless integration, the module mounts into Eaton Type BR load centers. The standard one-inch format allows for quick insertion into compatible panelboard slots. This HACR-rated component features a 10kAIC interrupt capacity and utilizes reliable box lug terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR130 |
| Series | BR |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C-375, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat load centers are compatible with the BR130 circuit breaker?
The BR130 is designed for use in Eaton Type BR load centers. It is also UL approved for installation in compatible legacy Cutler-Hammer, Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
Can the BR130 replace older Bryant or Westinghouse breakers?
Yes, Eaton Type BR breakers are the direct, UL-listed replacements for legacy Bryant BR, Westinghouse Type BR, and Challenger Type C circuit breakers.
What is the Challenger part number equivalent for the BR130?
The BR130 is the direct replacement for the legacy Challenger C130 circuit breaker.
Is the BR130 breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
How many panel spaces does the BR130 require?
As a 1-pole miniature circuit breaker, it requires a single 1-inch space on the load center bus bar.
Can this 30A breaker be used for switch duty (SWD) applications?
No, the 30A BR130 is not SWD rated. Switch duty ratings are typically only applied to 15A and 20A circuit breakers used for switching fluorescent lighting loads.
Will the BR130 fit in a Square D or Siemens panel?
No, the BR130 is not classified or UL listed for use in Square D Homeline, Square D QO, or Siemens load centers. It must only be installed in Eaton Type BR or approved legacy panels.
