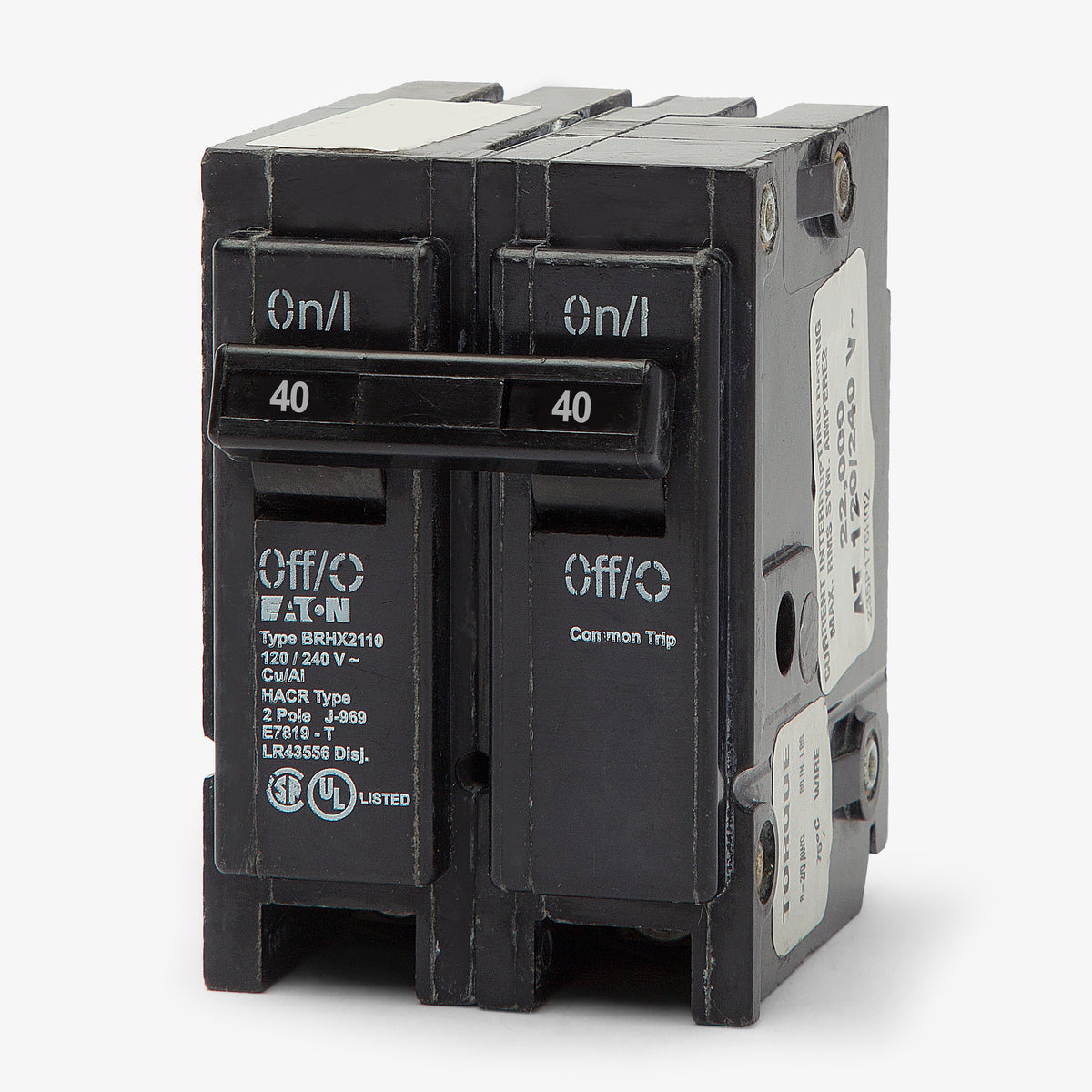

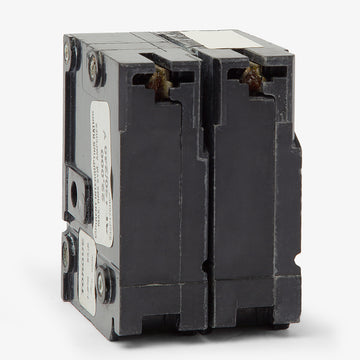

Eaton / Cutler-Hammer BR240 Miniature Circuit Breaker
- 40A
- 2 Pole

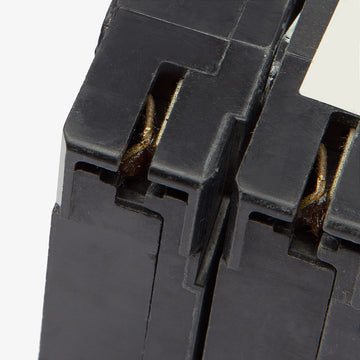

- Plug-On
Eaton / Cutler-Hammer
BR240
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR240 |
| Series | BR |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

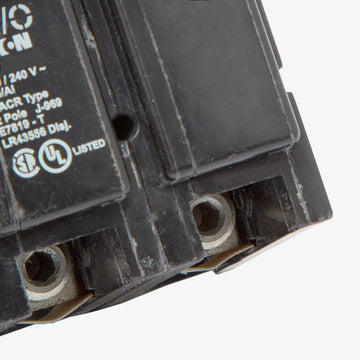

| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR240-R |
| Series | BR |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
30A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential applications, the Eaton BR240 delivers standard 10kAIC short-circuit protection for 240V circuits. This two-pole component fits seamlessly into Type BR load centers and is commonly utilized for electric ranges or large HVAC equipment. Featuring a common trip mechanism and HACR rating, it accommodates #14-4 AWG copper or aluminum wiring to ensure secure connections.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR240 |
| Series | BR |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
7 answersCan the Eaton BR240 be used to replace breakers in older Bryant or Westinghouse panels?
Yes. Eaton's Type BR circuit breakers are the direct UL-listed replacements for legacy Bryant, Westinghouse, and Challenger panels that accept 1-inch plug-on breakers.
Will the BR240 fit into a Square D Homeline or Siemens load center?
No. The BR240 is designed specifically for Eaton Type BR load centers, as well as compatible legacy panels (Bryant, Westinghouse, Challenger). It is not UL-listed for use in Square D, Siemens, or Murray load centers.
How much panel space is required to install the BR240?
The BR240 is a 2-pole breaker with a standard 1-inch per pole footprint, requiring two adjacent 1-inch spaces in the load center.
Can I use aluminum wiring with this 40A breaker?
Yes. The BR240 features box lug terminals that are rated for both copper (Cu) and aluminum (Al) wire, accepting sizes from 14 AWG up to 4 AWG.
Is the BR240 HACR rated for HVAC applications?
Yes. Eaton 2-pole Type BR circuit breakers are HACR (Heating, Air Conditioning, and Refrigeration) rated, making them suitable for use with HVAC equipment requiring this specification.
Does this breaker require a separate handle tie for 240V circuits?
No. As a manufactured 2-pole breaker, the BR240 features an internal common trip mechanism and a factory-installed handle tie to ensure both ungrounded legs trip simultaneously during an overload or short circuit.
Does the BR240 provide ground fault (GFCI) or arc fault (AFCI) protection?
No. The BR240 is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection only. It does not include AFCI or GFCI circuitry.
