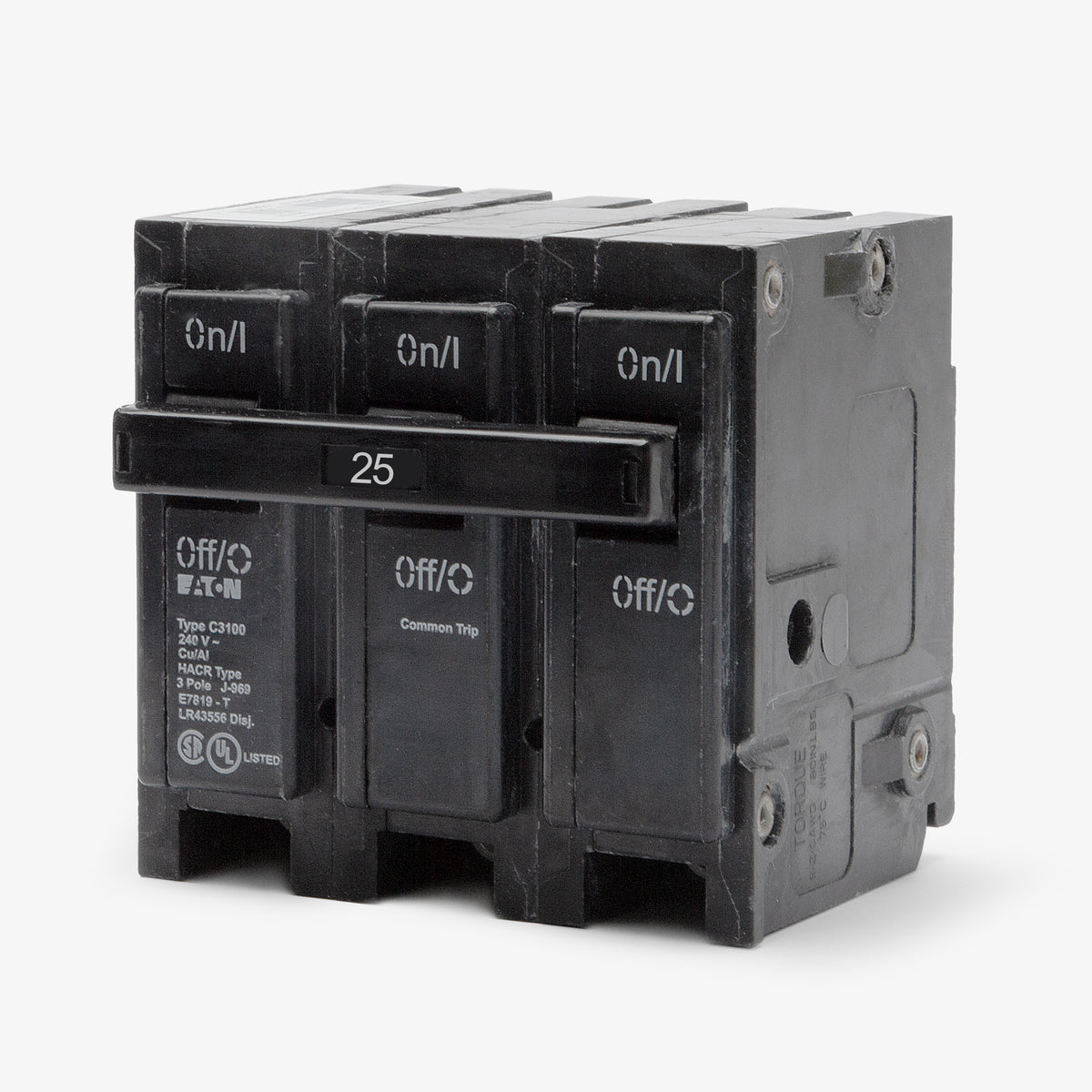

Eaton / Cutler-Hammer BR325 Miniature Circuit Breaker
- 25A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BR325
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR325 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR325 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR325 |
| Series | BR |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |

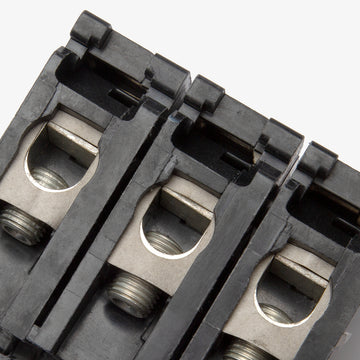

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR325 - 25A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR325-R |
| Series | BR |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
30A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Built for three-phase applications, the Eaton BR325 delivers 25 amps of reliable overcurrent protection. This three-pole breaker is an excellent choice for light commercial environments and residential upgrades requiring robust power management. It is fully compatible with Eaton, Cutler-Hammer, and legacy Bryant Type BR load centers. The plug-on mounting style allows for quick and secure seating onto the panel bus. Rated at 10 kAIC, it is HACR rated for HVAC equipment compatibility.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR325 |
| Series | BR |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
7 answersWhat load centers are compatible with the BR325 circuit breaker?
The BR325 is designed for Eaton and Cutler-Hammer Type BR load centers. It is also UL-listed for use in specific legacy Bryant, Westinghouse, and Challenger panels that accept Type BR breakers.
Can the Eaton BR325 replace older Bryant or Westinghouse breakers?
Yes, the Eaton BR325 is a direct, UL-listed replacement for legacy Bryant BR325 and Westinghouse BR325 circuit breakers.
How many panel spaces does this 3-pole breaker require?
The BR325 requires three standard 1-inch panel spaces for installation.
Is the BR325 breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment.
Can I install the BR325 in a Square D or Siemens panel?
No. The BR325 is not UL-listed or classified for use in Square D or Siemens load centers. It must only be installed in compatible Type BR panels.
What types of applications typically require a 25A 3-pole breaker?
A 25A, 3-pole breaker is commonly used to protect three-phase commercial HVAC systems, pumps, compressors, and motor-driven machinery.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker features both Long-Time and Instantaneous trip functions. The thermal element provides long-time protection against mild overloads, while the magnetic element reacts instantaneously to severe short circuits.
