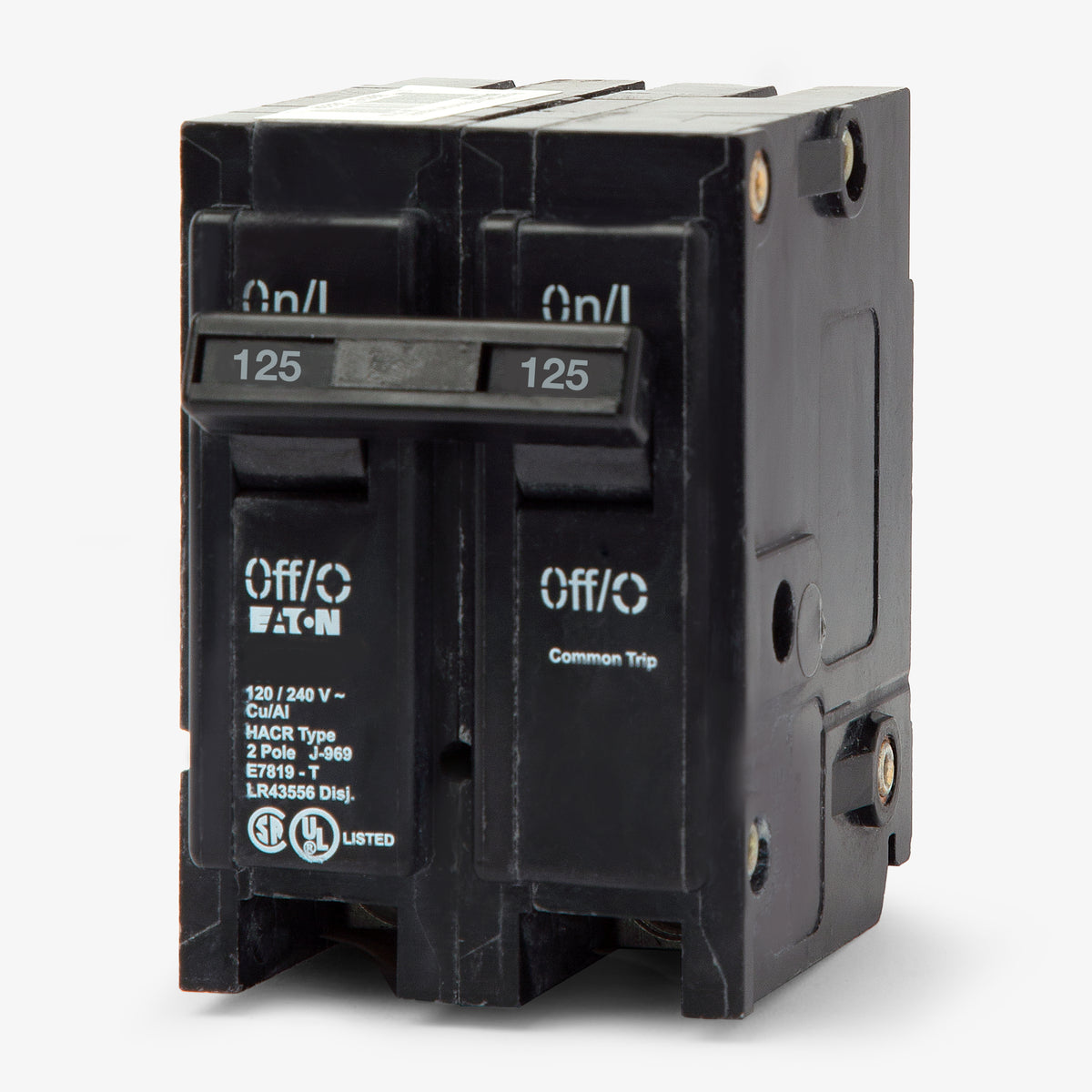

Eaton / Cutler-Hammer BRHH2125 Miniature Circuit Breaker
- 125A
- 2 Pole

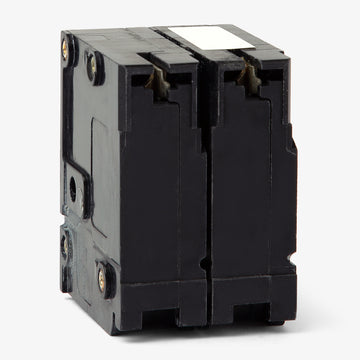

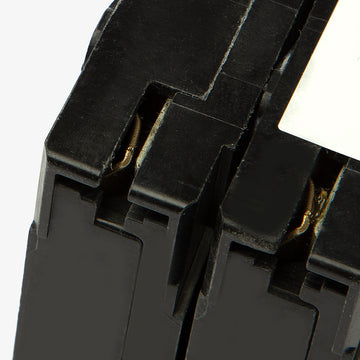

- Plug-On
Eaton / Cutler-Hammer
BRHH2125
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRHH2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRHH2125 - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description

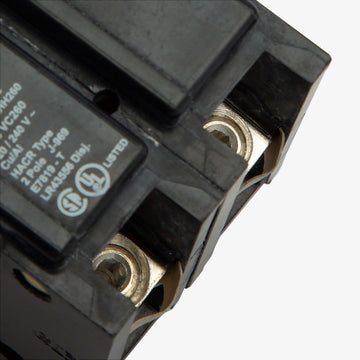

The BRHH2125 is a two-pole, 125-amp miniature circuit breaker from Eaton's BR family. It is designed to provide reliable thermal-magnetic overcurrent protection for residential and commercial electrical systems. This unit installs into standard Eaton Type BR load centers and meter breaker panels. It utilizes a simple plug-on mounting style and features box lug terminals that accept 4-2/0 AWG copper or aluminum wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRHH2125 |
| Series | BRHH |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4-2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Common Trip |
| Standards | UL 489, Federal Specification W-C376 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhich load centers are compatible with the BRHH2125?
This breaker is designed for use in Eaton Type BR load centers. It is also UL-listed for use in compatible legacy Westinghouse, Bryant, and Challenger panels that accept Type BR breakers.
How many panel spaces does the BRHH2125 require?
This 2-pole miniature circuit breaker requires two 1-inch spaces in the panel, taking up a total of 2 inches.
Do I need a hold-down kit if using the BRHH2125 as a main breaker?
Yes. When back-feeding this plug-on breaker as a main disconnect in a main lug only (MLO) load center, the National Electrical Code (NEC) requires a hold-down retainer. For Eaton BR breakers up to 125A, use the BREQS125 hold-down screw kit.
What is the difference between Eaton BR and BRHH breakers?
The difference is the short-circuit interrupting rating. Standard BR breakers are rated at 10kAIC, while BRHH breakers like the BRHH2125 feature a high interrupting capacity of 42kAIC at 240V.
Can the Eaton BRHH2125 replace older Bryant or Westinghouse breakers?
Yes. Eaton acquired the Bryant and Westinghouse breaker lines. The Eaton BRHH2125 is the direct, UL-listed replacement for legacy Bryant and Westinghouse Type BR breakers with matching specifications.
