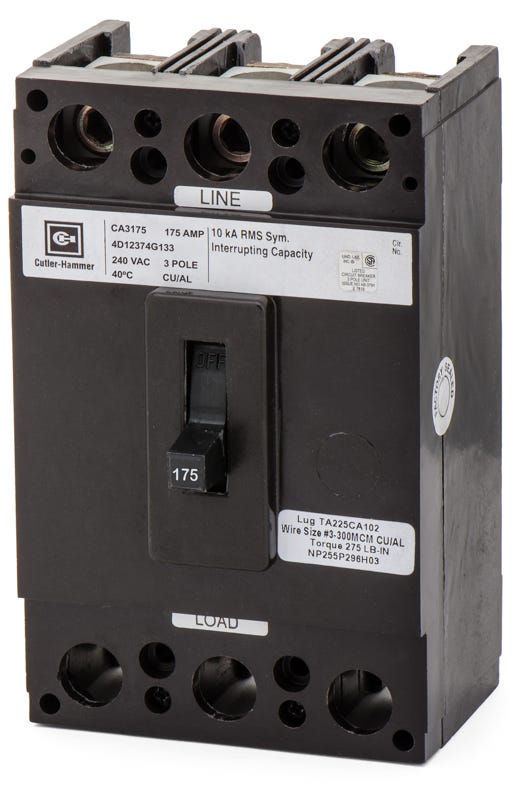

Eaton / Cutler-Hammer CA3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer CA3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CA3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3175 |
| Series | CA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Eaton / Cutler-Hammer CA3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3175-R |
| Series | CA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Built for heavy-duty commercial environments, this 175-amp thermal-magnetic breaker utilizes a quick-make, quick-break mechanism for reliable operation. It mounts into legacy Westinghouse and Eaton F-Frame panelboards requiring a cable-in, cable-out configuration. The unit comes standard with line and load lugs to facilitate straightforward wiring. When maintaining older switchgear, engineers rely on this specific C-Frame profile as an alternative to the ED3175 or FD3175.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3175 |
| Series | CA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the CA3175 circuit breaker?
This C-Frame breaker is designed to mount into legacy Westinghouse and Eaton F-Frame panelboards. It requires a cable-in, cable-out configuration.
Is the Cutler-Hammer CA3175 still in active production?
No, the CA3175 is an obsolete, legacy molded case circuit breaker. When maintaining older switchgear, engineers often rely on this specific C-Frame profile, though it has been largely superseded by the ED3175 and FD3175 series.
How is the CA3175 breaker mounted in a system?
It is a unit-mount, feed-thru circuit breaker. It comes standard with line and load lugs to facilitate straightforward wiring for cable-in, cable-out installations.
What wire sizes are accepted by the standard lugs on the CA3175?
The standard line and load lugs accept aluminum or copper wire ranging from 3 AWG to 300 kcmil.
What type of trip mechanism does the CA3175 utilize?
It features a thermal-magnetic trip unit providing fixed long-time and instantaneous (LI) protection. The breaker also utilizes a quick-make, quick-break mechanism for reliable operation under fault conditions.
Can the CA3175 be used to replace an original Westinghouse breaker?
Yes. Eaton and Cutler-Hammer continued the legacy Westinghouse distribution equipment lines. The CA3175 serves as a direct replacement for original Westinghouse CA3175 breakers in existing installations.
