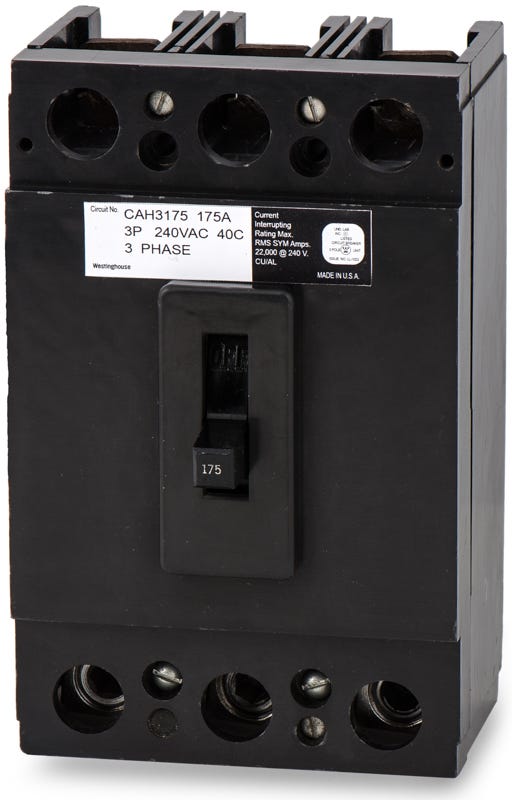

Eaton / Cutler-Hammer CAH3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
CAH3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CAH3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CAH3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CAH3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3175 |
| Series | CAH |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Quantity
Eaton / Cutler-Hammer CAH3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3175-R |
| Series | CAH |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, the Eaton CAH3175 is a 3-pole, 175A molded case circuit breaker featuring thermal-magnetic trip technology. It provides reliable long-time and instantaneous (LI) protection. This C-Frame unit-mount breaker is designed for legacy Cutler-Hammer panelboards and motor control centers. Rated at 22kAIC at 240VAC, it serves as an exact replacement for older installations and is officially superseded by the FD3175 series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3175 |
| Series | CAH |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Product FAQs
7 answersIs the Cutler-Hammer CAH3175 still in active production?
The CAH3175 is a legacy C-Frame circuit breaker and is considered obsolete by Eaton. It is officially superseded by the FD3175 series for new installations, though CAH3175 units are still used as direct replacements in existing enclosures.
Can I replace a CAH3175 with an FD3175?
Yes, Eaton designates the FD3175 as the modern replacement for the legacy CAH3175. You must verify that your specific panelboard or enclosure has the appropriate mounting hardware to accommodate the FD-Frame footprint.
What equipment is the CAH3175 circuit breaker designed to fit?
This C-Frame breaker is engineered for integration into legacy Cutler-Hammer and Westinghouse panelboards, switchboards, and motor control centers.
What wire sizes are accepted by the lugs on the CAH3175?
The standard line and load lugs on this breaker accept copper or aluminum conductors ranging from 6 AWG up to 350 kcmil.
How is the CAH3175 mounted within a panel?
This is a unit-mount circuit breaker, meaning it bolts directly to the chassis or mounting pan rather than plugging onto a busbar.
What type of trip unit does the CAH3175 utilize?
It features a thermal-magnetic trip unit providing fixed long-time and fixed instantaneous (LI) overcurrent protection.
Can the CAH3175 be installed in a 480V system?
No, this breaker is strictly rated for a maximum of 240V AC. Installing it in a 480V system violates its UL listing and poses a severe arc flash and fire hazard.
