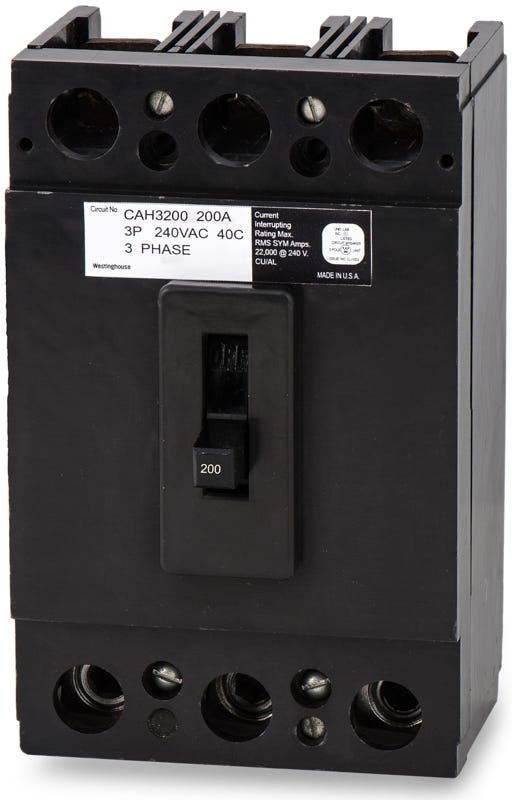

Eaton / Cutler-Hammer CAH3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer CAH3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer CAH3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3200 |
| Series | CAH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Quantity
Eaton / Cutler-Hammer CAH3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3200-R |
| Series | CAH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Description
Providing reliable overcurrent defense, the Eaton CAH3200 is a 200A, 3-pole molded case circuit breaker with a 22kAIC rating at 240VAC. This unit-mount device employs standard thermal-magnetic trip technology for essential long-time and instantaneous (LI) protection. It is engineered specifically for integration into older Cutler-Hammer switchboards, panelboards, and motor control centers. As a legacy C-Frame component, it ensures continued operation and crosses over to the FD3200 replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CAH3200-R |
| Series | CAH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG-350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Tenant Main, Feed-Thru Connection |
Product FAQs
7 answersWhat equipment is the CAH3200 circuit breaker designed to fit?
This legacy C-Frame breaker is engineered for integration into older Cutler-Hammer and Westinghouse panelboards, switchboards, and motor control centers.
Is the Cutler-Hammer CAH3200 still manufactured, or is there a modern replacement?
The CAH3200 is an obsolete legacy breaker. For modern replacements, it crosses over to the Eaton FD3200 or equivalent ED-frame circuit breakers. However, the original CAH3200 is often sourced for exact like-for-like replacements in existing infrastructure to avoid retrofit modifications.
What wire sizes and materials are accepted by the lugs on the CAH3200?
The factory lugs accept 6 AWG to 350 kcmil wire and are rated for both copper and aluminum conductors. When using aluminum wire, an approved joint compound is recommended.
What type of trip unit does the CAH3200 utilize?
It features a fixed thermal-magnetic trip unit that provides standard long-time and instantaneous (LI) overcurrent protection. Both the thermal and magnetic trip points are fixed and cannot be adjusted in the field.
Can this breaker be used in systems originally built by Westinghouse?
Yes. The CAH series has a legacy rooted in Westinghouse designs before being produced by Cutler-Hammer and Eaton. It is fully compatible with legacy Westinghouse distribution equipment that requires a C-Frame breaker.
How does the CAH3200 mount into the panel?
It utilizes a unit-mount configuration, also known as a feed-thru mount. This means it bolts directly to the chassis or mounting pan and connects via cable lugs, rather than plugging directly onto a busbar.
What is the maximum fault current the CAH3200 can safely interrupt?
This breaker has a maximum interrupting capacity of 22kA at 240VAC. Electricians must verify that the system's available fault current does not exceed this rating before installation to ensure safe operation.
