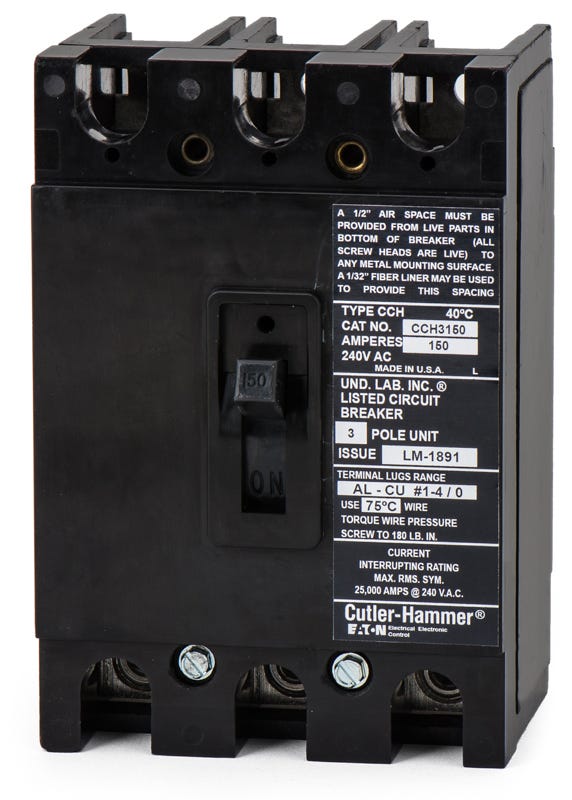

Eaton / Cutler-Hammer CCH3150 R - 150A 3 Pole Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer CCH3150-R - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CCH3150-R - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCH3150-R |
| Series | CCH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Quantity
Eaton / Cutler-Hammer CCH3150-R - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCH3150-R |
| Series | CCH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Description
Providing reliable tenant main protection, the Eaton CCH3150 molded case circuit breaker handles 150-amp loads across three poles. It operates at 240VAC and features standard fixed thermal and magnetic trip units to safeguard against overcurrents. This unit bolts into commercial meter stacks and Type ECC unit enclosures. While Eaton introduced the CVH3150X as its modern replacement, this CCH frame remains critical for facility managers needing a code-compliant fit. Rated 25kAIC at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCH3150-R |
| Series | CCH |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Product FAQs
5 answersWhat enclosures are compatible with the CCH3150 circuit breaker?
This 150A main breaker is designed to bolt into Eaton Type ECC unit enclosures and commercial meter stacks.
What is the difference between the Eaton CC3150 and CCH3150?
The primary difference is the short-circuit interrupting rating. The standard CC3150 is rated at 10kAIC at 240VAC, while the CCH3150 is the high-interrupting version rated at 25kAIC at 240VAC. Both share the same physical dimensions and mounting style.
Is there a modern replacement for the CCH3150?
Yes, Eaton introduced the CVH3150X as the modern replacement for this series. However, the CCH3150 is often still required for exact, code-compliant replacements in older commercial meter stacks and ECC enclosures.
Can the CCH3150 be reverse fed in a panel?
Eaton molded case breakers like the CCH3150 can only be reverse fed if they are factory sealed and lack LINE and LOAD markings on the cover. If the breaker is marked with line and load designations, it must not be back-fed.
What replacement lug kit is compatible with the CCH3150?
If you need to replace the line or load terminals, the Eaton CCL300 main breaker lug kit is designed specifically for CC and CCH series breakers.
