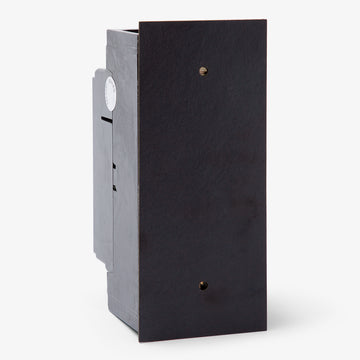

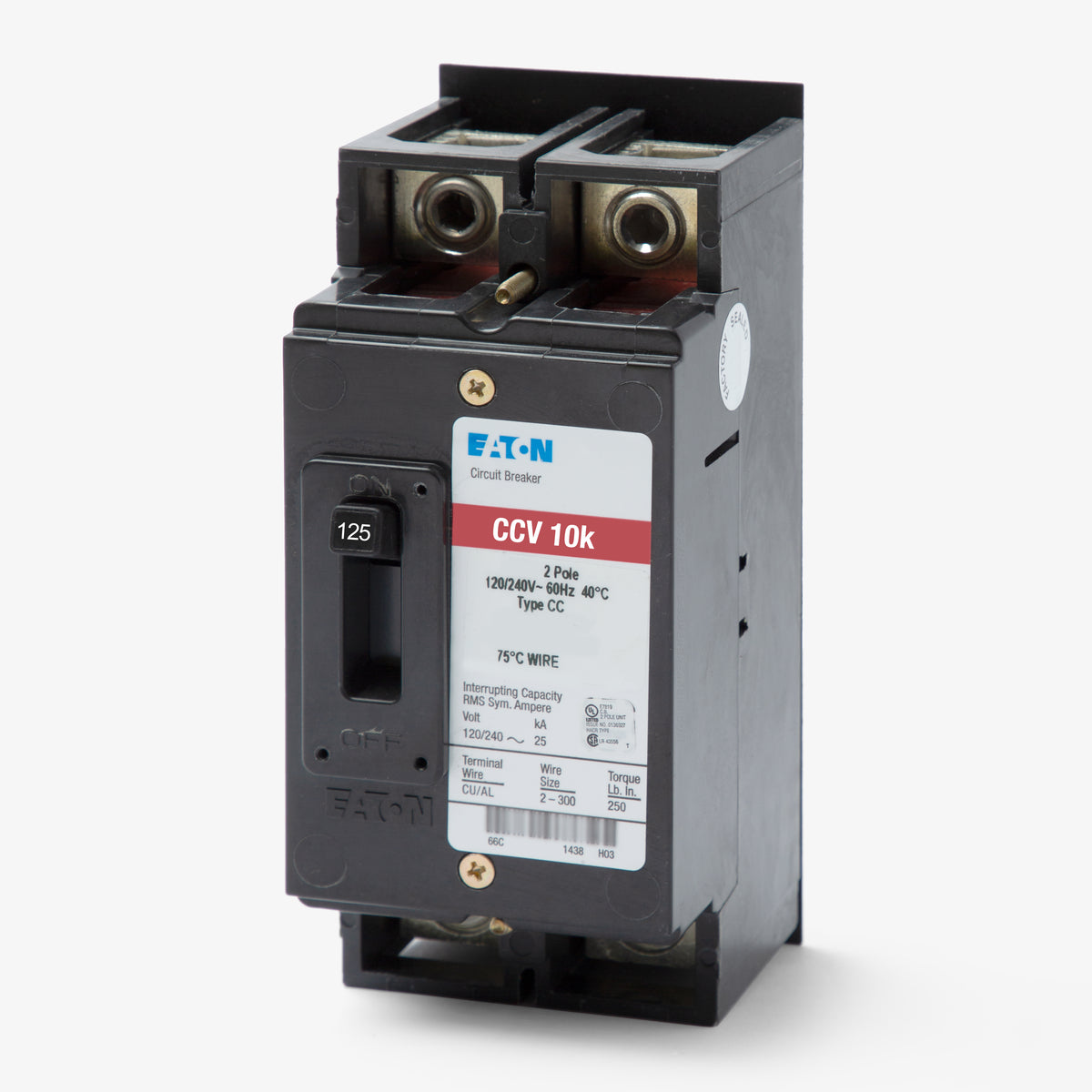

Eaton / Cutler-Hammer CCV2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer CCV2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CCV2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCV2125 |
| Series | CCV |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Quantity
Eaton / Cutler-Hammer CCV2125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CCV |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Description
Engineered for multi-unit applications, the Eaton CCV2125 serves as a robust 125A tenant main breaker. This two-pole component delivers essential overcurrent protection for individual units within larger complexes. It mounts into Type ECC unit enclosures and 1MP, 1MM, or 3MM modular meter stacks. Replacing the legacy CC2125, it accepts 2/0 AWG to 300 kcmil wiring via standard lug terminals. Rated for 10 kAIC at 120/240V, this thermal-magnetic breaker features a fixed trip setting.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCV2125 |
| Series | CCV |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Product FAQs
4 answersWhat applications is the CCV2125 tenant main breaker designed for?
This breaker is engineered for multi-tenant metering applications. It installs directly into Eaton 1MP, 1MM, and 3MM modular meter stacks, as well as Type ECC unit enclosures.
What is the direct replacement for the obsolete Cutler-Hammer CC2125?
The Eaton CCV2125 is the official direct replacement for the legacy CC2125 and QCC2125 tenant main circuit breakers.
Are modifications required when upgrading from a legacy CC2125 to the CCV2125?
While it is a direct replacement, the CCV mounting screw is shorter than the original CC frame screw. Additionally, the CCV conductor has a smaller through-hole. Eaton documentation states it is acceptable to drill out the CCV breaker conductors to connect to existing bussing if needed.

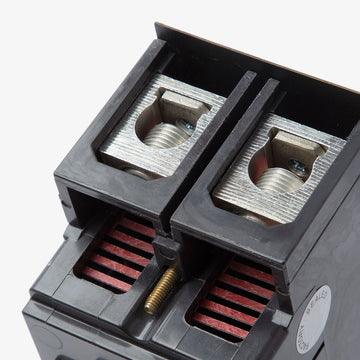

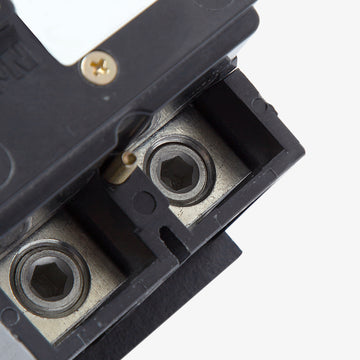

Are the terminal lugs on the CCV2125 rated for aluminum wiring?
Yes, the factory-installed lugs are rated for both copper and aluminum conductors. They accept wire sizes from 2/0 AWG up to 300 kcmil.
