Eaton / Cutler-Hammer CCV2175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Bolt-On
Quantity

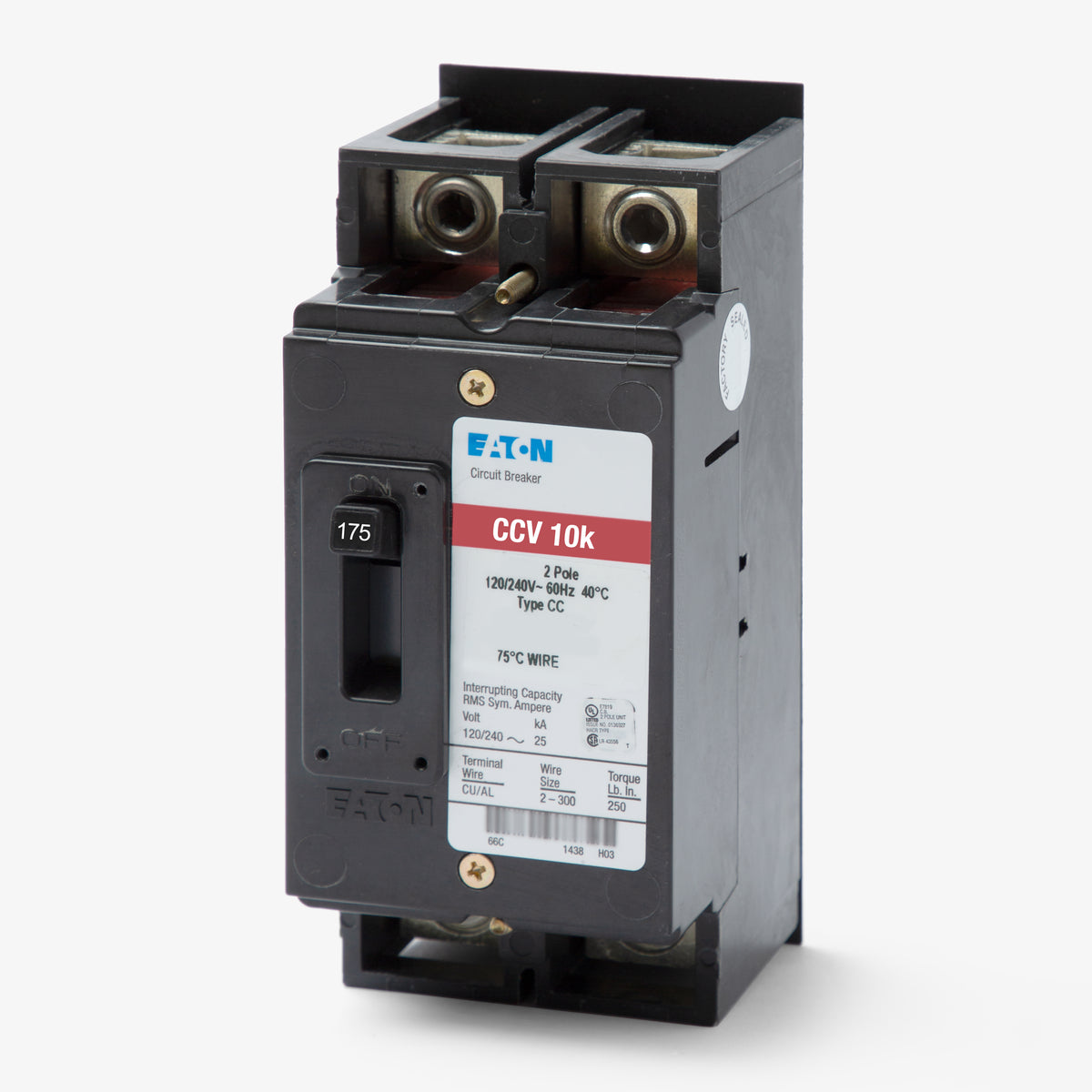

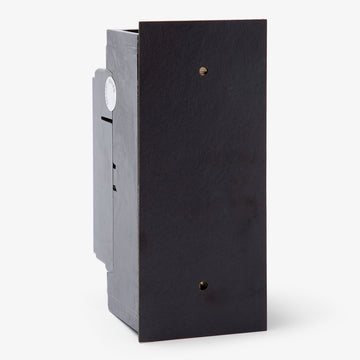

Eaton / Cutler-Hammer CCV2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for multi-tenant metering, the Eaton CCV2175 is a 175-amp main breaker that provides reliable power distribution to individual residential or commercial units. This two-pole component ensures safe operation in demanding electrical systems. The breaker installs into Type ECC unit enclosures and 1MP, 1MM, or 3MM modular meter stacks. Serving as a replacement for the older CC2175, it accommodates 2/0 AWG to 300 kcmil wire sizes. It features a 10 kAIC rating at 120/240V and fixed trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCV2175 |
| Series | CCV |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Product FAQs
6 answersWhat enclosures and meter stacks are compatible with the CCV2175?
This breaker is designed for use in Eaton Type ECC unit enclosures, as well as 1MP, 1MM, and 3MM modular meter stacks, typically serving as a tenant main disconnect.
Is there a direct replacement for the older Cutler-Hammer CC2175?
Yes, the CCV2175 is the direct, updated replacement for the obsolete CC2175 breaker.
Does Eaton offer a version of this 175A breaker with a higher interrupting rating?
Yes. While the CCV2175 is rated for 10kAIC at 240V, the CCVH2175 shares the exact same physical frame but carries a higher 25kAIC rating.

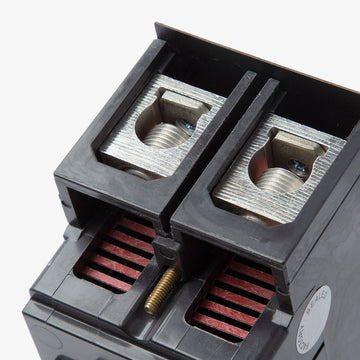

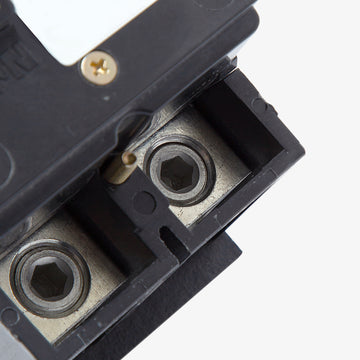

Are the line and load lugs included with the CCV2175?
Yes, the standard CCV2175 catalog number includes factory-installed lugs on both the line and load sides. Eaton uses an X suffix (like CCV2175X) to denote load-side lugs only, which does not apply to this base model.
What wire sizes and materials are accepted by the lugs on this breaker?
The included lugs accept 2/0 AWG to 300 kcmil wire and are rated for both copper (Cu) and aluminum (Al) conductors.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker features a thermal-magnetic trip unit with Long-Time (thermal) protection for overloads and Instantaneous (magnetic) protection for short circuits.
