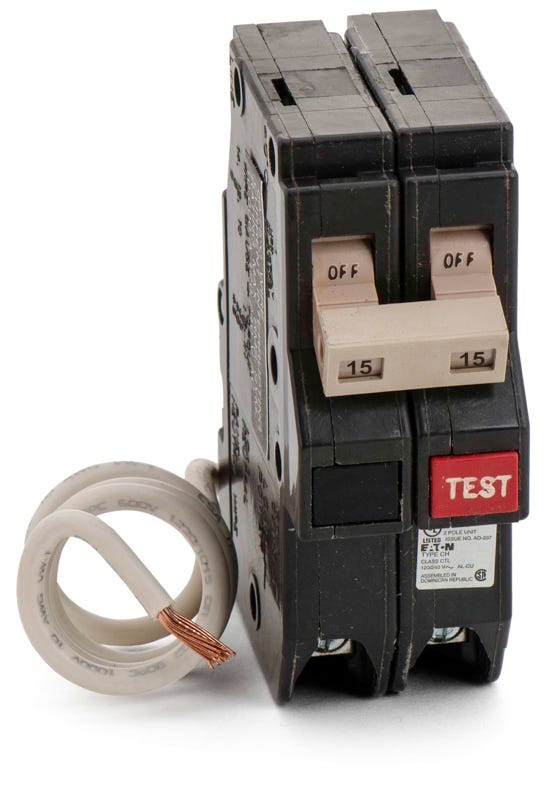

Eaton / Cutler-Hammer CH215GFI GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH215GFI
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH215GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH215GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH215GFI |
| Series | CH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CH215GFI - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH215GFI-R |
| Series | CH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
15A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Designed for wet or damp locations, this 15-amp two-pole breaker provides essential 5mA personnel protection. It satisfies NEC requirements for areas requiring ground fault interruption, such as bathrooms, kitchens, and outdoor receptacles. Mounts into standard Eaton Cutler-Hammer type CH load centers utilizing a 3/4-inch plug-on format. Note that this specific model has been superseded by the CH215GFT self-test version. Featuring a 10kAIC rating, it includes common trip functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH215GFI |
| Series | CH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhat type of load center is compatible with the CH215GFI?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It utilizes a 3/4-inch plug-on format and is not compatible with Type BR or other 1-inch panel designs.
What level of ground fault protection does the CH215GFI provide?
It provides 5mA Class A personnel protection. This meets NEC requirements for life safety in wet or damp locations like bathrooms, kitchens, and outdoor circuits.
How is the neutral connected on this breaker?
The CH215GFI features a pigtail neutral. The attached white wire must be connected directly to the panel neutral bus bar to power the internal ground fault circuitry.
Does the CH215GFI require a load neutral connection for straight 240V applications?
No. For 240V loads that do not use a neutral, the breaker will still function correctly. The pigtail neutral must be connected to the panel neutral bar to operate the electronics, but a load-side neutral wire is not required.
Has the CH215GFI been replaced by a newer model?
Yes, the CH215GFI has been superseded by the CH215GFT. The newer GFT version includes an automated self-test feature to ensure the ground fault circuitry remains operational, complying with updated NEC standards.
