Eaton / Cutler-Hammer CH335 Miniature Circuit Breaker
- 35A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
CH335
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

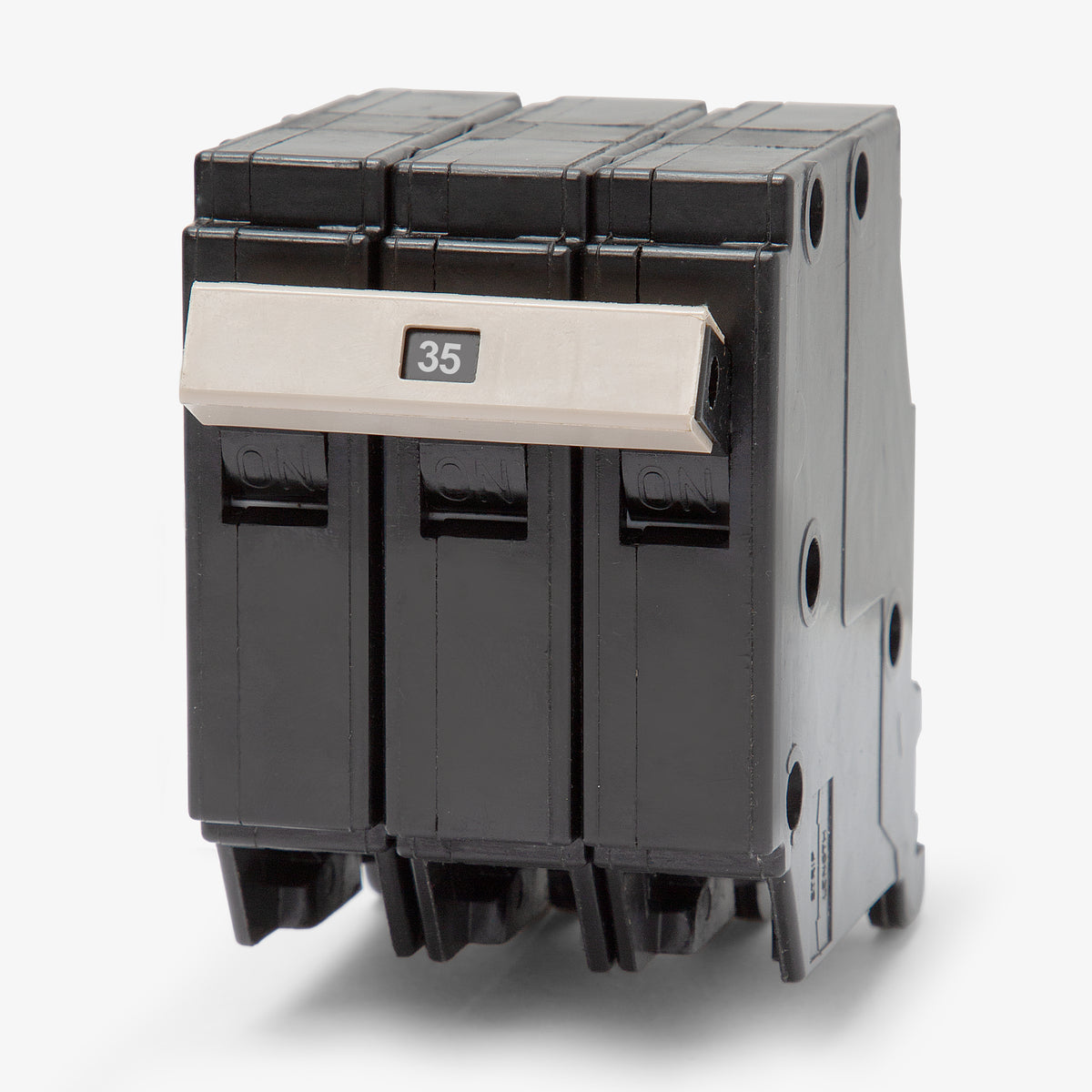

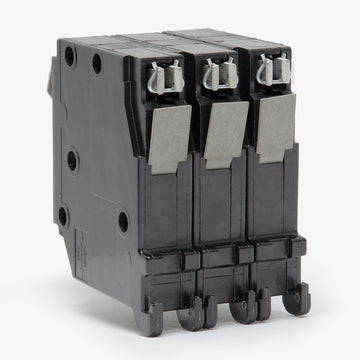

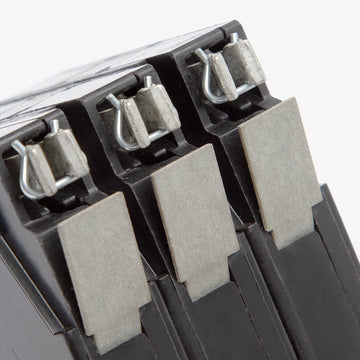

Eaton / Cutler-Hammer CH335 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description

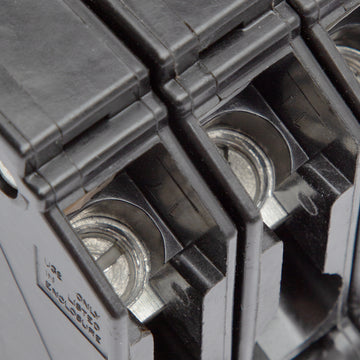

Designed for residential and commercial power distribution, the Eaton CH335 delivers dependable 35A overcurrent protection. This three-pole miniature circuit breaker is ideal for three-phase applications requiring a compact footprint. It installs easily into Eaton Type CH load centers, utilizing a plug-on mounting style. The box lug terminals are compatible with 14-6 AWG copper or aluminum conductors. With a 10 kAIC rating at 240VAC, this thermal-magnetic breaker is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH335 |
| Series | CH |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
8 answersWhat type of load center accepts the CH335 breaker?
The CH335 is designed exclusively for Eaton CH series load centers. It features a plug-on mounting style that will not fit in BR series or other manufacturers' panels.
Can I use the CH335 in a single-phase panel?
No. The CH335 is a 3-pole breaker designed specifically for 3-phase Eaton CH load centers. It cannot be properly installed in a standard single-phase residential panel.
How much panel space does the CH335 require?
This breaker requires three 3/4-inch spaces, taking up a total of 2.25 inches of width on the panel bus bar.
Is the Eaton CH335 HACR rated?
Yes, standard Eaton CH breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment.
Is the Cutler-Hammer CH335 the same as the Eaton CH335?
Yes. Eaton acquired Cutler-Hammer, and the CH335 catalog number remains the exact same standard 3-pole breaker under the Eaton brand.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker uses a thermal-magnetic trip unit. It provides Long-Time thermal protection against mild overloads and Instantaneous magnetic protection against severe short circuits.
Does this breaker feature a common trip mechanism?
Yes. The CH335 features an internal common trip mechanism. If one pole trips due to a fault, all three poles will open simultaneously to disconnect power safely across all phases.
How does the CH335 indicate a tripped condition?
Unlike some breakers that trip to a center position, Eaton CH circuit breakers trip to the OFF position. This makes it easy to identify a tripped breaker and simplifies the reset process.
