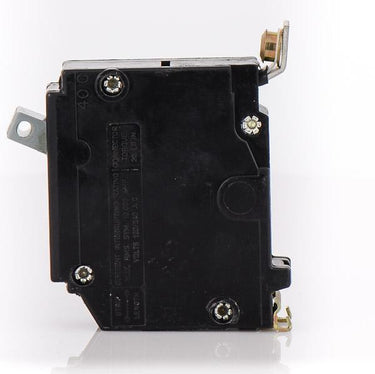

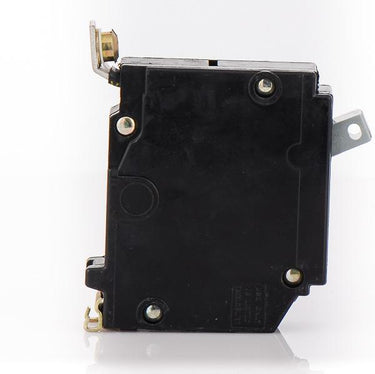

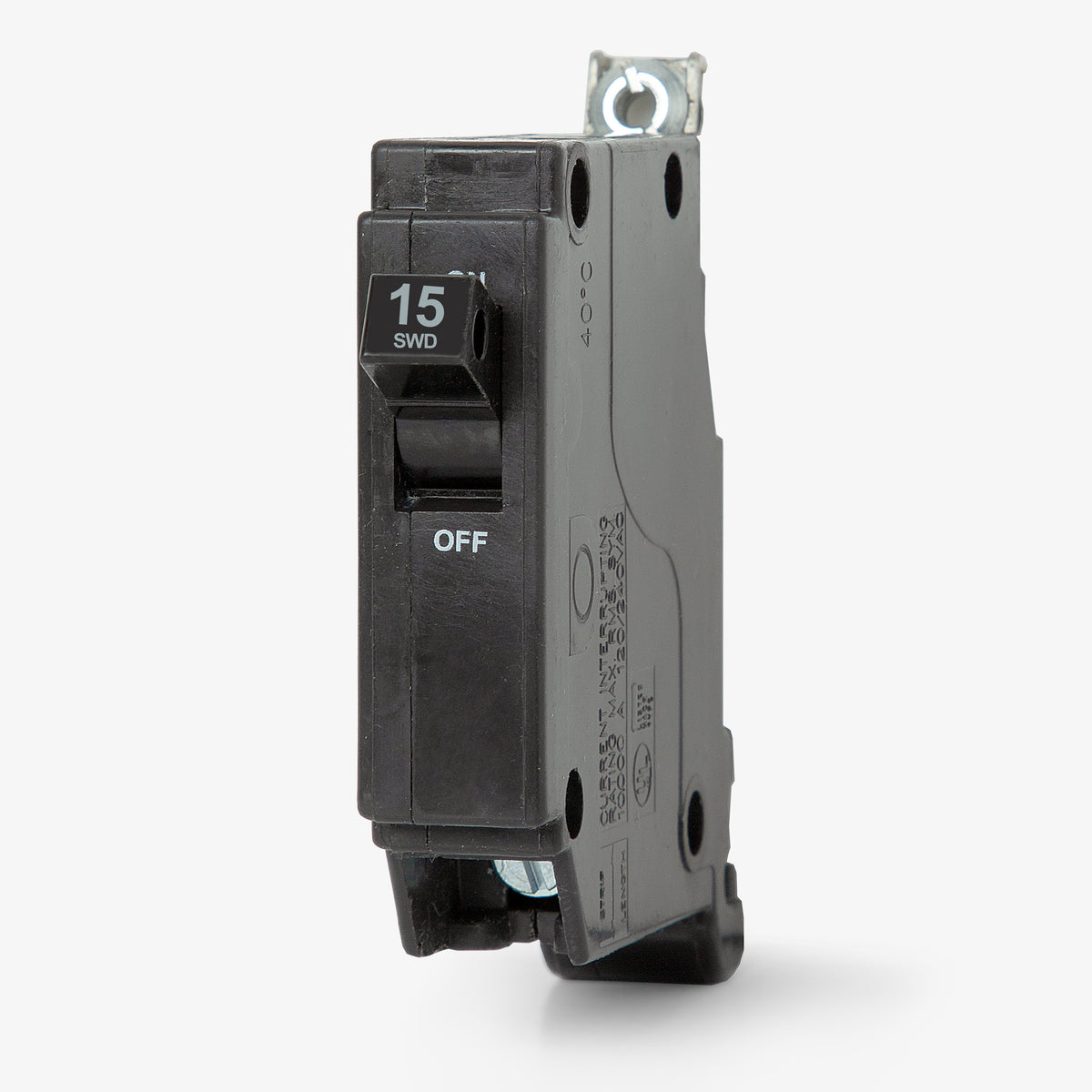

Eaton / Cutler-Hammer CHB115 Miniature Circuit Breaker

The CHB115 is a bolt-on breaker engineered specifically for commercial and industrial distribution. It is compatible with Type PB panelboards, Type PH panelboards, meter panels, and multi-metering modules. It will not fit standard residential plug-on load centers.

This breaker utilizes a bolt-on connection. Instead of snapping onto the bus bar, it must be physically bolted to the panelboard bus. This provides a highly secure, vibration-resistant connection typical in commercial applications.

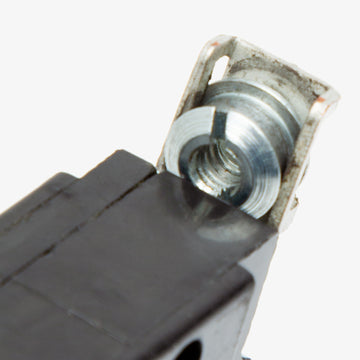

The terminal lugs are rated for both copper and aluminum (Cu/Al) conductors. You can safely use wire gauges ranging from 14 AWG up to 8 AWG, depending on your circuit requirements and local electrical codes.

The LI designation indicates that this thermal magnetic breaker includes both Long-Time and Instantaneous trip functions. The long-time thermal element protects against sustained overloads, while the instantaneous magnetic element trips immediately during a short circuit.

The 10kAIC rating means this breaker can safely interrupt up to 10,000 amps of fault current at 120/240VAC without sustaining internal damage or causing an arc flash hazard.

Yes. Eaton acquired Cutler-Hammer and continues to manufacture these breakers under the Eaton brand. An Eaton CHB115 is the direct replacement for an older Cutler-Hammer CHB115.

Standard miniature circuit breakers like the CHB115 are typically rated for 80 percent continuous load unless specifically marked for 100 percent. Always size your conductors and breaker according to the National Electrical Code (NEC) for your specific application.
