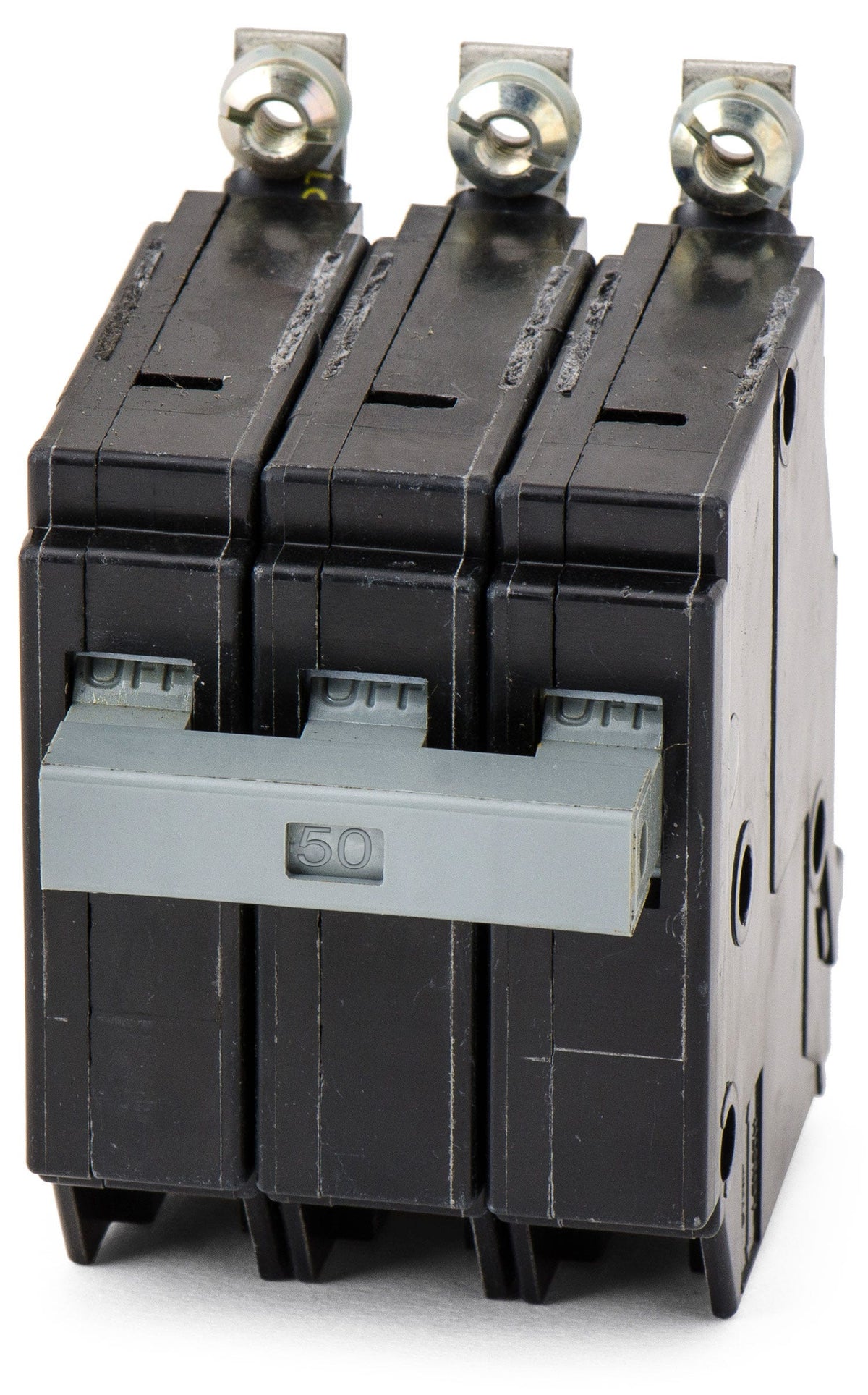

Eaton / Cutler-Hammer CHB350 Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB350
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB350 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB350 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB350 |
| Series | CHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB350 - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB350-R |
| Series | CHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
40A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Designed for three-phase applications, the Eaton CHB350 provides standard 10kAIC fault protection for 240V systems. This 50A, 3-pole miniature circuit breaker utilizes a reliable bolt-on connection, making it ideal for commercial and industrial facilities. It integrates seamlessly into Cutler-Hammer Type PB and PH panelboards, along with compatible meter panels and multi-metering modules. The breaker is HACR rated to safely support dedicated HVAC and refrigeration motor loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB350 |
| Series | CHB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhich panelboards accept the CHB350 circuit breaker?
The CHB350 is designed specifically for Eaton and Cutler-Hammer Type PB and Type PH panelboards. It is also compatible with select meter panels and multi-metering modules that accept CHB series bolt-on breakers.
Will the CHB350 fit in a standard residential CH load center?
No. While it shares the CH family name, the CHB350 is a bolt-on breaker built for commercial Type PB and PH panelboards. Standard residential CH load centers require plug-on Type CH breakers.
How is the CHB350 installed into the panel?
This breaker utilizes a bolt-on mounting connection. It fastens directly to the panelboard bus, providing a secure mechanical and electrical connection for commercial and industrial applications.
Are Eaton and Cutler-Hammer CHB350 breakers interchangeable?
Yes. Eaton acquired Cutler-Hammer, and the CHB350 is the exact same component under both brand names. An Eaton CHB350 is a direct, manufacturer-approved replacement for an older Cutler-Hammer CHB350.
Is the CHB350 suitable for HVAC equipment?
Yes. The CHB350 is HACR rated, meaning it is tested and approved to safely protect dedicated heating, air conditioning, and refrigeration motor circuits.
What type of trip unit does the CHB350 use?
It is equipped with a fixed thermal-magnetic trip unit featuring Long-Time and Instantaneous (LI) functions. The thermal element handles mild overloads, while the magnetic element reacts immediately to severe short circuits.
