Eaton/Cutler-Hammer CLD3600F Circuit Breaker
- 3 Pole
- Bolt-On
Quantity

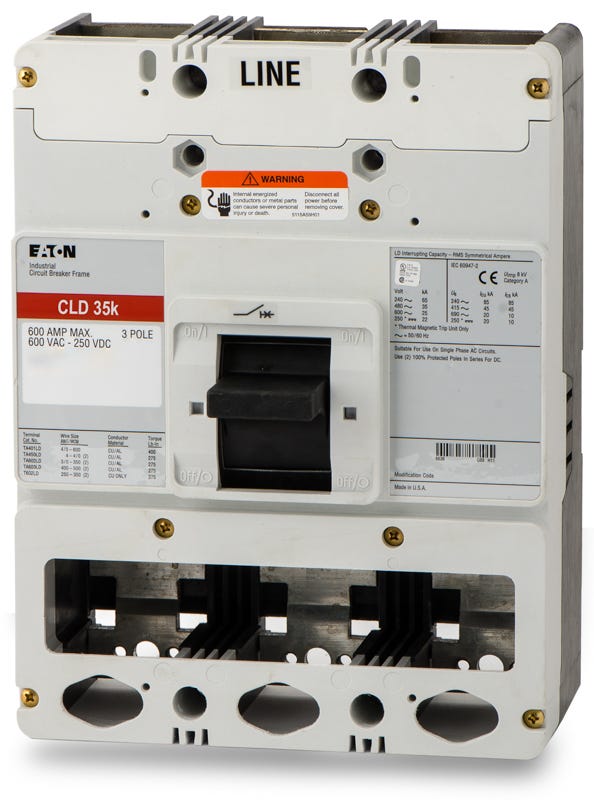

Eaton/Cutler-Hammer CLD3600F 3 Pole Circuit Breaker
New
Quantity
Description
CLD3600F - Cutler Hammer Bolt-On Circuit Breaker
Cutler Hammer CLD C series three pole 600 ampere bolt-on molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 35 kiloampere at 480V complete with (LI) Long-Time and Instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | CLD |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600 V |
| Phase | 3 |
Product FAQs
7 answersWhat frame size is the CLD3600F?
The CLD3600F is an L-frame molded case circuit breaker belonging to the Eaton/Cutler-Hammer Series C family.
Does the CLD3600F include line and load lugs?
No. The F suffix in the catalog number indicates this is a frame-only unit. Line and load lugs, such as the 3TA603LDK terminal kit, must be sourced separately.
What are the complete interrupting ratings for this breaker?
While rated for 35 kAIC at 480V, this breaker also features an interrupting capacity of 65 kAIC at 240V and 25 kAIC at 600V.
Is the CLD3600F suitable for reverse feed applications?
Yes, Eaton Series C L-frame circuit breakers with fixed thermal-magnetic trip units are suitable for reverse feed use.
What wire size does the standard 3TA603LDK lug kit accept for this breaker?
The compatible 3TA603LDK lug kit accommodates two 400 to 500 kcmil copper or aluminum conductors per phase.
Is this breaker 100 percent rated?
Yes, the CLD3600F is 100 percent rated for continuous operation at 40 degrees Celsius.
Are the trip settings adjustable on this breaker?
No, the CLD3600F features a fixed thermal-magnetic trip unit. It provides non-adjustable Long-Time and Instantaneous (LI) protection.
