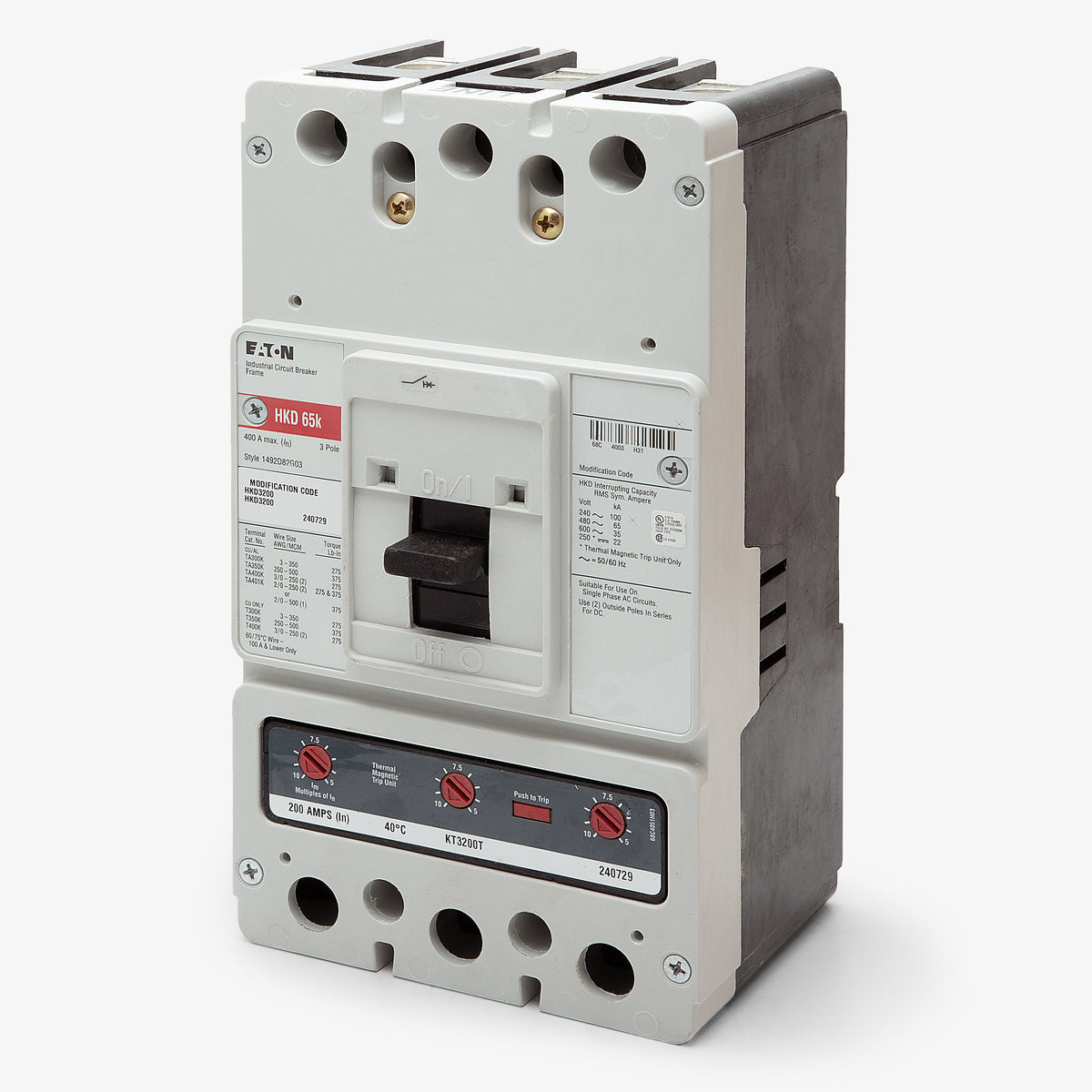

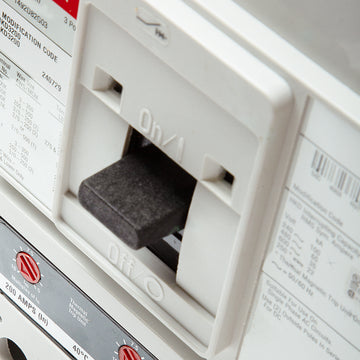

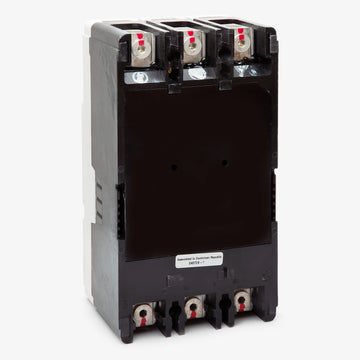

Eaton / Cutler-Hammer DK3300 Molded Case Circuit Breaker
- 300A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
DK3300
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
DK3300
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer DK3300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer DK3300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | DK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | DK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer DK3300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | DK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | DK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Eaton DK3300 is a 3-pole, 300A molded case circuit breaker. It utilizes thermal-magnetic technology to deliver reliable long-time and instantaneous (LI) protection. This K-Frame breaker installs into Eaton Series C panelboards, switchboards, and motor control centers. It comes standard with line and load lugs accepting 250-500 kcmil aluminum or copper wire. With a 65kAIC rating at 240VAC, it handles significant fault currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | DK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | DK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 250-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan the DK3300 be used in 480V systems?
No, the DK3300 is rated for a maximum of 240VAC or 250VDC. For 480V or 600V applications, a different K-frame breaker like the KD3300 is required.
Is the DK3300 a direct replacement for older Westinghouse breakers?
Yes, the Eaton / Cutler-Hammer DK3300 is a direct replacement for older Westinghouse DK3300 breakers, as they share the same physical dimensions and Series C K-frame design.
Are the trip settings on the DK3300 adjustable?
No, the DK3300 features a fixed thermal and fixed magnetic trip unit, providing non-adjustable long-time and instantaneous (LI) protection.
Is the DK3300 HACR rated?
Yes, Eaton Series C K-frame circuit breakers, including the DK3300, are HACR rated for use with heating, air conditioning, and refrigeration equipment.

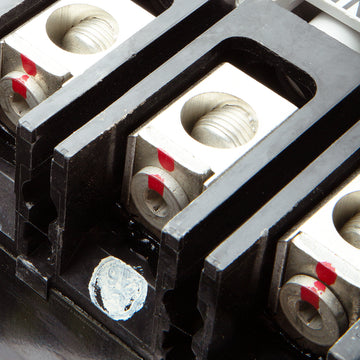

Are line and load lugs included with the DK3300?
Yes, the DK3300 comes standard with factory-installed line and load lugs that accept 250 to 500 kcmil aluminum or copper wire.
Can the DK3300 be reverse fed?
Yes, Eaton Series C K-frame thermal-magnetic circuit breakers like the DK3300 are suitable for reverse feed applications.
