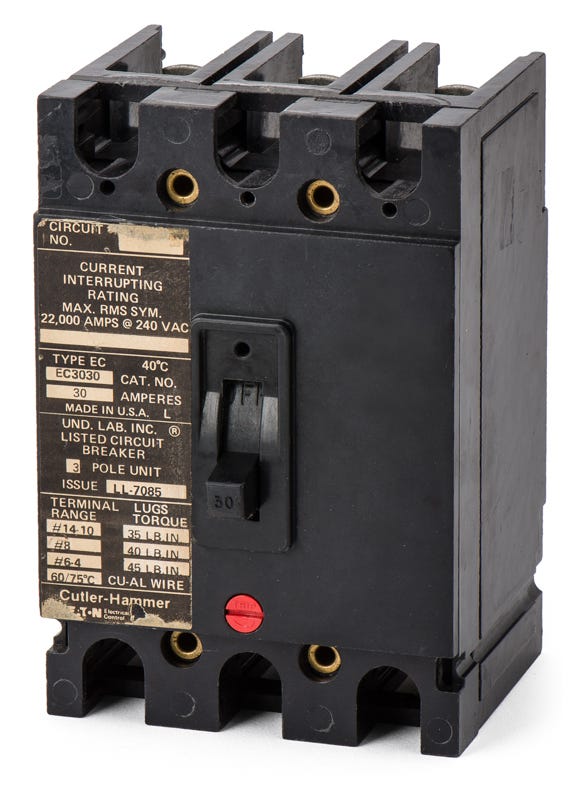

Eaton / Cutler-Hammer EC3030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EC3030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Serving commercial facilities, the Eaton EC3030 is a 3-pole, 30-amp molded case circuit breaker from the classic Westinghouse E-Frame family. This unit mounts into legacy Cutler-Hammer Type EC panelboards via a secure bolt-on connection. The EHD3030 serves as the modern equivalent for this exact footprint. With a 10kAIC rating at 240VAC, it features a common trip mechanism and is fully HACR rated to support heating and cooling equipment circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EC3030-R |
| Series | EC |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Type EC Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | Common Trip |
Product FAQs
6 answersIs there a modern equivalent for the legacy EC3030 breaker?
Yes, the Eaton EHD3030 is the direct modern replacement. It shares the exact same Westinghouse E-Frame footprint and electrical specifications for seamless retrofitting.
Can I install this breaker in a standard residential load center?
No, the EC3030 is a commercial-grade molded case circuit breaker designed exclusively for Cutler-Hammer Type EC panelboards. It will not fit in standard residential load centers.
Does the EC3030 snap into the panel?
No, this is a bolt-on circuit breaker. It must be mechanically bolted to the busbar of a compatible Cutler-Hammer Type EC panelboard.
Are the trip settings adjustable on the EC3030?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Can the EC3030 be used to protect HVAC circuits?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Do the terminal lugs require specific wire materials?
The integrated load-side lugs are dual-rated for both copper and aluminum (Cu/Al) conductors ranging from 14 AWG to 1/0 AWG.
