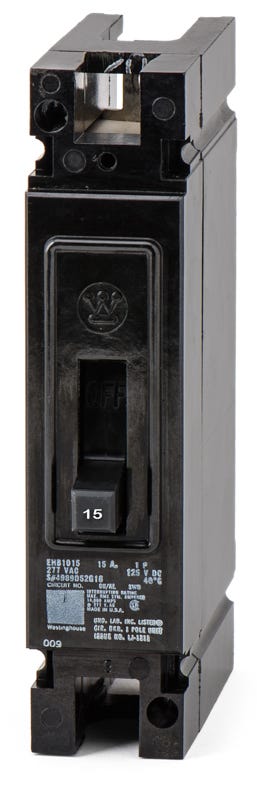

Eaton / Cutler-Hammer EHB1015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer EHB1015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for commercial facilities, the Eaton EHB1015 is a 1-pole, 15A molded case circuit breaker. It provides thermal-magnetic protection with a 14kAIC rating at 277VAC. This bolt-on MCCB mounts into Eaton Pow-R-Line C and legacy Westinghouse F-Frame panelboards. As an E-Frame model, it serves as a reliable maintenance component and is officially replaced by the newer EHD1015 series. Featuring HACR, HID, and SWD ratings, it safely handles specialized lighting and HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB1015-R |
| Series | EHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug Terminals |
| Standards | UL 489, CSA C22.2 No. 5.1, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersIs the Eaton EHB1015 circuit breaker obsolete and what is its direct replacement?
Yes, the legacy EHB series is obsolete. The EHB1015 is officially replaced by the newer EHD1015, which is a modern F-frame molded case circuit breaker.
Can I install the EHB1015 in an older Westinghouse panelboard?
Yes, this bolt-on breaker is fully compatible with legacy Westinghouse F-Frame panelboards, as well as modern Eaton Pow-R-Line C panelboards.
Can the EHB1015 be used to switch fluorescent lighting or HVAC equipment?
Yes, this breaker carries SWD (Switching Duty) and HID (High-Intensity Discharge) ratings for lighting control, as well as an HACR rating for safe use with heating, air conditioning, and refrigeration equipment.
Does the EHB1015 come with load side lugs installed?
Yes, this breaker includes load side lug terminals that accept 14 to 10 AWG wire for standard installations.
Are the trip settings adjustable on the EHB1015?
No, this thermal magnetic breaker features fixed long time and fixed instantaneous trip functions. It does not offer adjustable trip settings.
