Eaton / Cutler-Hammer EHD1030L Molded Case Circuit Breaker
- 30A
- 1 Pole
- Unit Mount
Eaton / Cutler-Hammer
EHD1030L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD1030L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

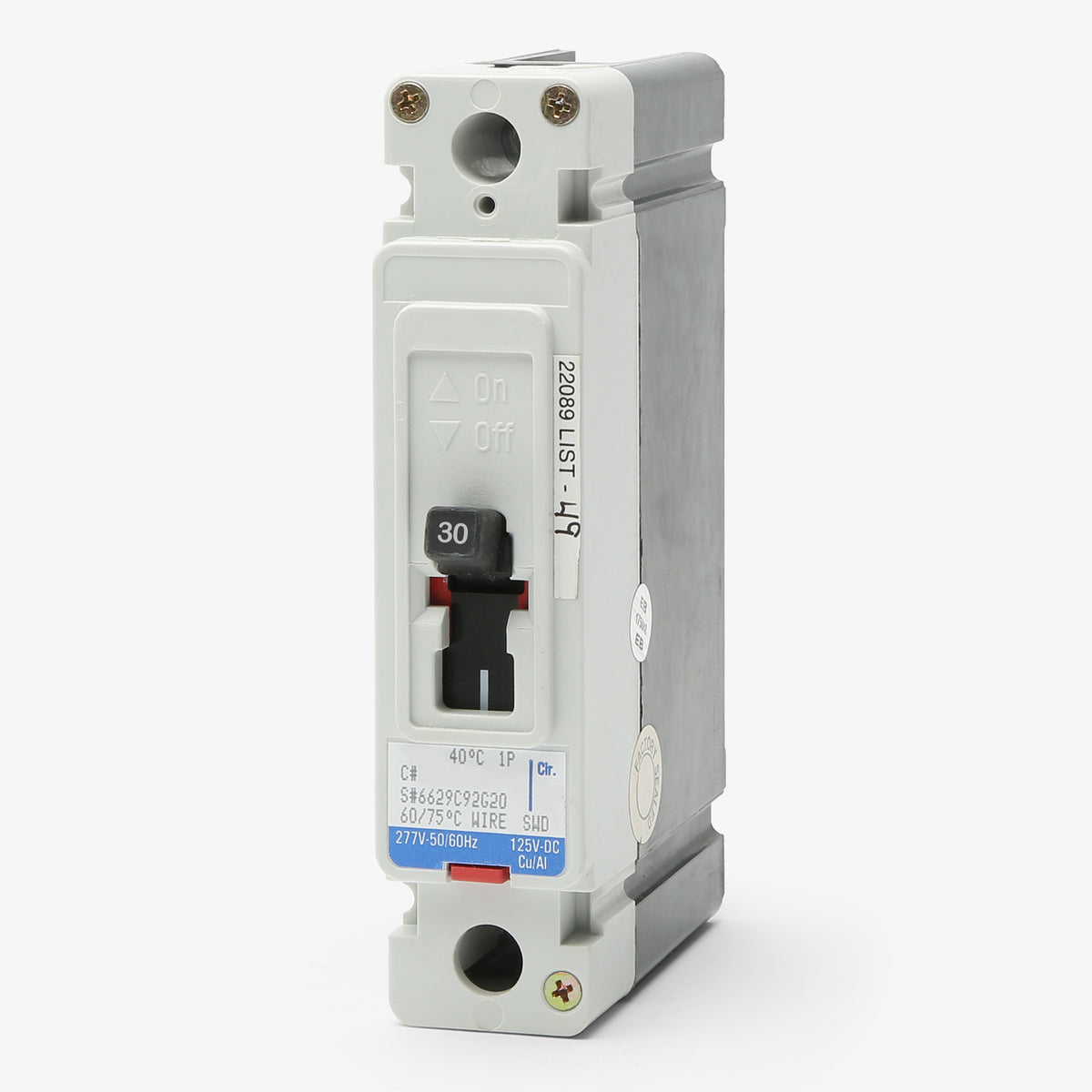

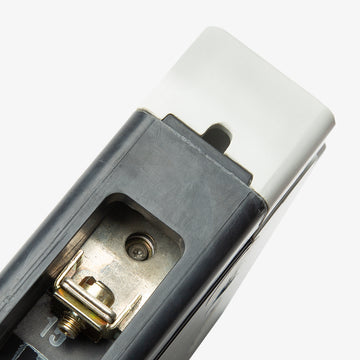

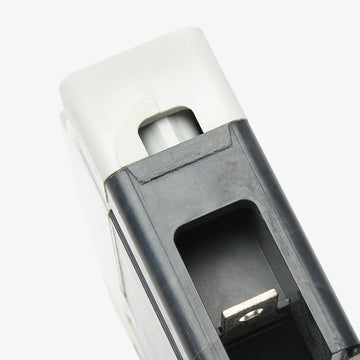

Eaton / Cutler-Hammer EHD1030L - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Belonging to Eaton's Series C F-frame lineup, this 30A MCCB delivers robust thermal-magnetic protection for commercial use. This unit-mount device includes line and load lugs for installation in Eaton enclosures and switchboards. It replaces legacy FDB1030L and FD1030L models. Rated 14 kAIC at 277 VAC, it features a fixed trip unit and reverse feed capability. It is also HACR and HID rated for specialized lighting and HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD1030L |
| Series | EHD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat panels and enclosures are compatible with the EHD1030L circuit breaker?
The EHD1030L is designed for use in Eaton Series C panelboards, switchboards, and compatible enclosures that accept F-frame molded case circuit breakers.
How does the EHD1030L mount into an electrical enclosure?
This is a unit-mount, feed-thru breaker. It bolts directly to the mounting pan or chassis using standard F-frame mounting hardware, rather than plugging onto a busbar.
Will the Eaton EHD1030L replace older Cutler-Hammer or Westinghouse breakers?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The EHD1030L is a direct drop-in replacement for older breakers bearing the exact same catalog number, maintaining the identical F-frame footprint.
Can the trip settings on the EHD1030L be adjusted in the field?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection parameters are factory-set and cannot be modified.
What are the wiring requirements for the EHD1030L lugs?
The factory-installed line and load lugs accept 14 to 1/0 AWG conductors. Installers must apply the specific torque values printed directly on the breaker label to ensure a secure connection and prevent thermal issues.
Is the EHD1030L rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for up to 125VDC. This allows it to be utilized in specific DC control circuits and distribution systems requiring a 30-amp disconnect.
Can the EHD1030L be used for multi-phase equipment?
No, the EHD1030L is a 1-pole breaker designed to protect a single ungrounded conductor. For multi-phase equipment requiring simultaneous disconnect, a 2-pole or 3-pole Series C F-frame breaker must be used to ensure proper common-trip protection.
